Robbery Alarm Advanced Application

The Robbery Alarm Advanced Application, to show the student different types of burglar alarms.

ATENG 11060 — Robbery Alarm Advanced Application

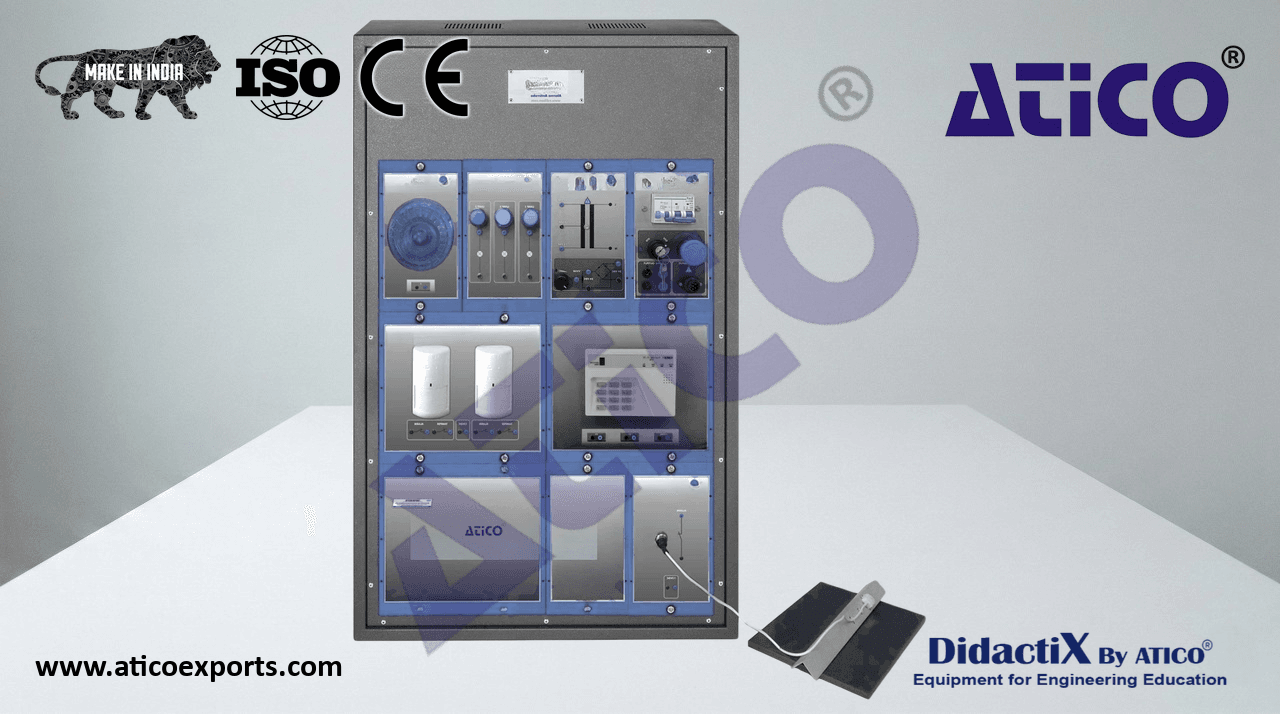

• The “AEL–AD1A” application includes the following elements:
• N-ALI02. Domestic Main Power Supply Module.
• Supply voltage (single-phase): 230 VAC, 1PH + N.
  ON / OFF removable key.
• Output voltage connections:
• Two single-phase: 230 VAC.
  N-ALI02
  Single-phase supply hose with connecting plug.
• Differential magnetothermal 2 poles, 25 A, 30 mA AC 6 KA.
  Emergency stop push-button.
• N-ALI03. AC Auxiliary Power Supply (24 Vac) Module.
• Supply voltage (single-phase): 230 VAC, 1PH + N.
• Output voltage:
• Single-phase 24 VAC / 12 VAC.
• 24 VDC. N-ALI03
• 0 – 24 VDC through potentiometer.
• N-SEL03. Three Pilots Light Module.
• Supply voltage: 24 VAC.
• Colors: red, yellow and green.
  N-SEL03
• N-VAR07. Burglar Alarm System + Infrared + Battery Module.
  Control of two zones.
• Power supply voltage: 230 VAC.
• 12 VDC output to connect to the siren.
• Default code: 1234.
• N-SEL21. Indoor Siren Module. N-VAR07
• Volume configuration through voltage: 12 – 24 VDC.
  87 – 112 dB.
  12 – 30 mA.
  32 tones.
• N-INT32. Intrusion Detector/Switch Module with Relay 1000 W Module. N-SEL21
• Supply voltage: 12 – 14 VDC.
  Two normally closed (NC) outputs (alarm and tamper).
• N-DET27. Glass Breakage Detector Module.
• Supply voltage: 12 VDC.
• Maximum current: 21 mA.
  N-INT32
  Adjustable sensitivity.
• Detection range: 2 meters in diameter.
  Alarm contactor normally closed (NC).
• All necessary cables to realize the practical exercises are included.
  N-DET27
  Cables and accessories, for normal operation.
