Robbery Alarm Application

The Robbery Alarm Application, to show the student different types of burglar alarms.

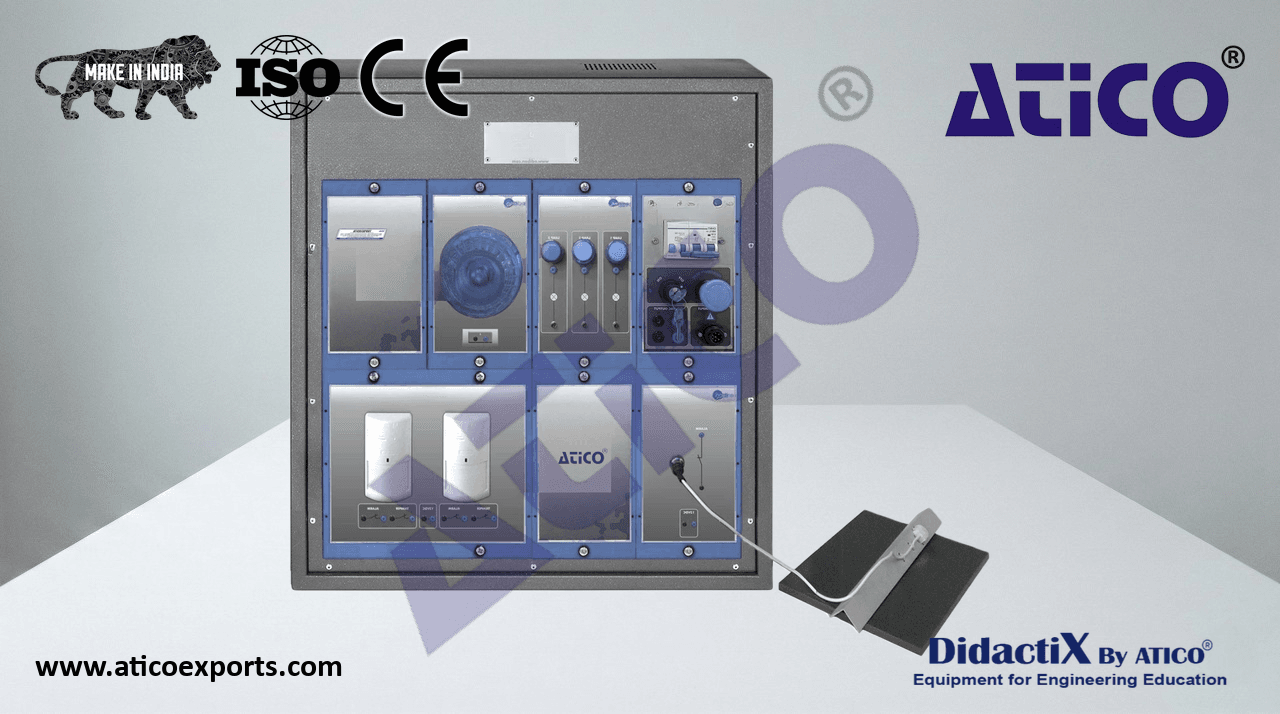

ATENG 11062 — Robbery Alarm Application

• The “ATENG 11062” application includes the following elements:
• N-ALI02. Domestic Main Power Supply Module.
• Supply voltage (single-phase): 230 VAC, 1PH + N.
  ON / OFF removable key.
• Output voltage connections:
  N-ALI02
• Two single-phase: 230 VAC.
  Single-phase supply hose with connecting plug.
• Differential magnetothermal 2 poles, 25 A, 30 mA AC 6 KA.
  Emergency stop push-button.
• N-SEL03. Three Pilots Light Module.
• Supply voltage: 24 VAC.
• Colors: red, yellow and green.
  N-SEL03
• N-SEL21. Indoor Siren Module.
• Volume configuration through voltage: 12 – 24 VDC.
  87 – 112 dB.
  12 – 30 mA.
  32 tones. N-SEL21
• N-INT32. Intrusion Detector/Switch Module with Relay 1000 W.
• Supply voltage: 12 – 14 VDC.
  Two normally closed (NC) outputs (alarm and tamper).
  N-INT32
• N-DET27. Glass Breakage Detector Module.
• Supply voltage: 12 VDC.
• Max. current: 21 mA.
  Adjustable sensitivity.
• Detection range: 2 meters in diameter.
  Alarm contactor normally closed (NC).
  N-DET27
• All necessary cables to realize the practical exercises are included.
  Cables and accessories, for normal operation.
