ROUND TURBULENT JET

Allows students to investigate a jet of air as it emerges from the end of a tube and analyse its properties.

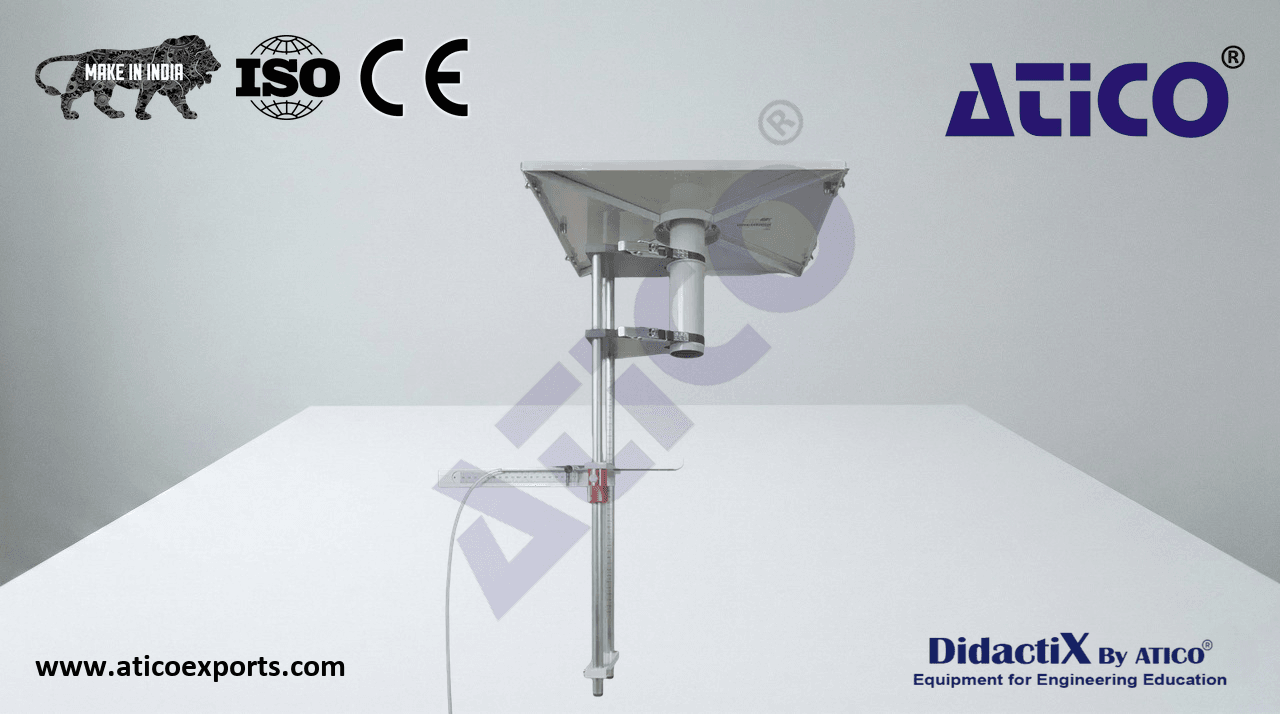

This module consists of a tube with a specially designed rounded entry. The tube is mounted on a stiff plate with the rounded entry on one side and the exit on the other. To set the experiment up the contraction is unclipped from the Air Flow Bench and set aside. Learn about ROUND TURBULENT JET specifications for optimal educational outcomes.. The whole plate is then mounted onto the plenum chamber directly so that air enters the rounded entry of the tube and leaves the end in a jet. The total pressure in the jet is measured by a Pitot tube held by a traversing mechanism. Learn about ROUND TURBULENT JET aerodynamics India for optimal educational outcomes.. The mechanism allows the Pitot tube to move radially across the jet and axially along it. The Pitot tube is connected to the manometer ancillary via a flexible tube fitted with a quick-release coupling. Learn about ROUND TURBULENT JET suppliers for optimal educational outcomes..
