Runnable Piston Engine Aircraft Training Set Fixed Propeller

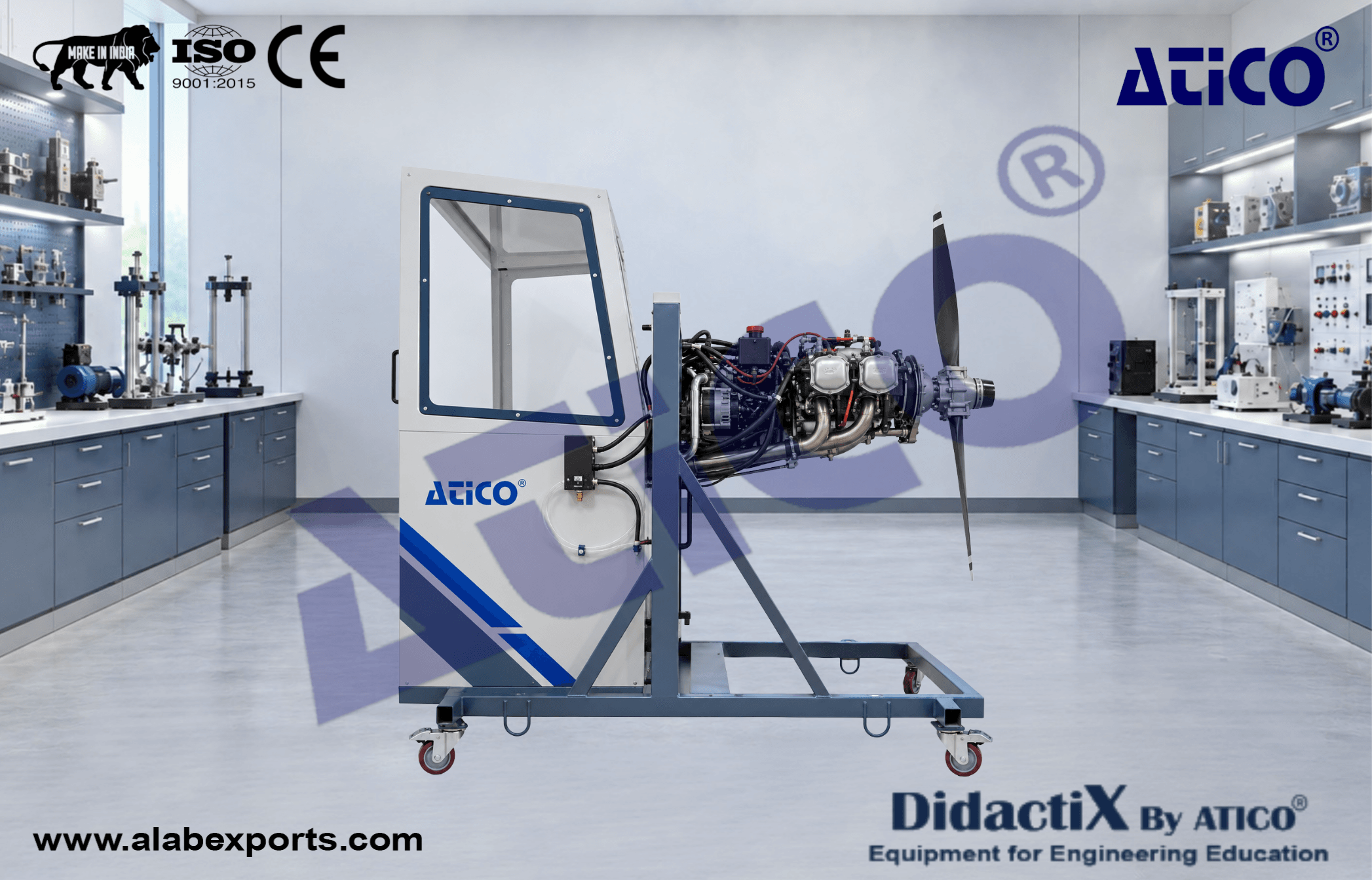

Trainees can learn the main components and systems of an aircraft piston engine with the Runnable Piston Engine Aircraft Training Set. They can operate a piston engine with the training set after learning the required operational procedures. The training set includes the systems typically found on an aircraft piston engine.

The trainees may also be trained to remove and replace different parts for field-level experiments and maintenance practice.

Manufactured by Atico Export with quality-focused production and attention to engineering specifications for teaching and training purposes.

Engine :

• Four (4) or Six (6) Cylinder Aircraft Piston Engine

Systems :

• Electrical Systems (Ignition and Starting)
• Fuel System
• Propeller Control System
• Instrument System
• Control System
• Master Power System

Electrical System :

• Starter
• Magnetos
• Ignition Leads
• Ignition Unit
• Plugs (Spare Plug Included)
• Battery (Battery Charger Included)

Instrument Systems (Digital or Analogue) :

• RPM/Tachometer Gauges
• Manifold Pressure Gauge
• Oil Pressure Gauges
• Oil Temperature Gauges
• Fuel Pressure Gauge
• CHT Indicator (4 Pieces)
• EGT Indicator (4 Pieces)
• Fuel Quantity Gauge
• Voltmeter
• Ammeter
• Hour Meter

Propeller :

• Connected with the fixed-pitch propeller assembly including spinner and governor.
• Two or Three Blade Options

Control :

• Throttle Control (Push Open)
• Mixture Control (Pull Lean)

Master/Control Panel :

• Aircraft System Circuit Breakers
• Master Power Switch
• Master Power Lamp
• Fuel Control
• Starter Control
• Magneto Control
• Beacon Control

Test Cabin :

• The system is mounted on a metal/aluminum mobile semi-enclosed test cell cabin.
• Plexiglass windows in the front and on both sides.
• Fire extinguisher to be mounted inside
• Three anti-collision lights mounted on the right side, left side, and top
• Six (6) Tie Points

Data Acquisition System :

• Complete data acquisition system including engine-mounted sensors
• Signal conditioning circuits
• Data acquisition hardware
• Software that captures several engine parameters in real time
• All sensors are measured for plotting graphs, calculation, and analysis.
• The equipment has provision for an effective and accurate automatic data acquisition system.
• Allows students to display, graph, and analyze all relevant variables and save their results for later analysis.

General :

• Exhaust with silencer/muffler
• Fuel: AVGAS
• Fuel Tank Included
• Tool Kit Included
• Spark Plug Socket Included
• Aircraft Ground Power Unit (GPU) Plug Included

Testers (Included) :

• Differential Cylinder Pressure Tester
• Dual Magneto Synchronizer

Construction & Training :

• Wirings on the trainer are connected via terminals.
• Wires have clear identification labels for each wire.
• All wires are coded and labeled for troubleshooting.
• Metal/aluminum frame with 4 wheels. All wheels are lockable.
• Heavy-duty vibration and shear mounts to absorb vibrations.
• Training video for teachers
• Delivered fully assembled, tested, and ready to operate
• Colored ultraviolet printing method on aluminum composite panel.

Documentation :

• User’s Manual
• Study Guide
• Instructor’s Guide
• Device’s Original Manual
• Device’s Original Electrical Wiring Diagrams
• Computer-Based Training

Power Specs :

• Energy Signal Lamp
• 110 VAC 60 Hz or 220-240 VAC 50 Hz

Optional :

• Data Acquisition System

• Understanding fundamentals of aircraft piston engines and their components.
