Sailing Winch

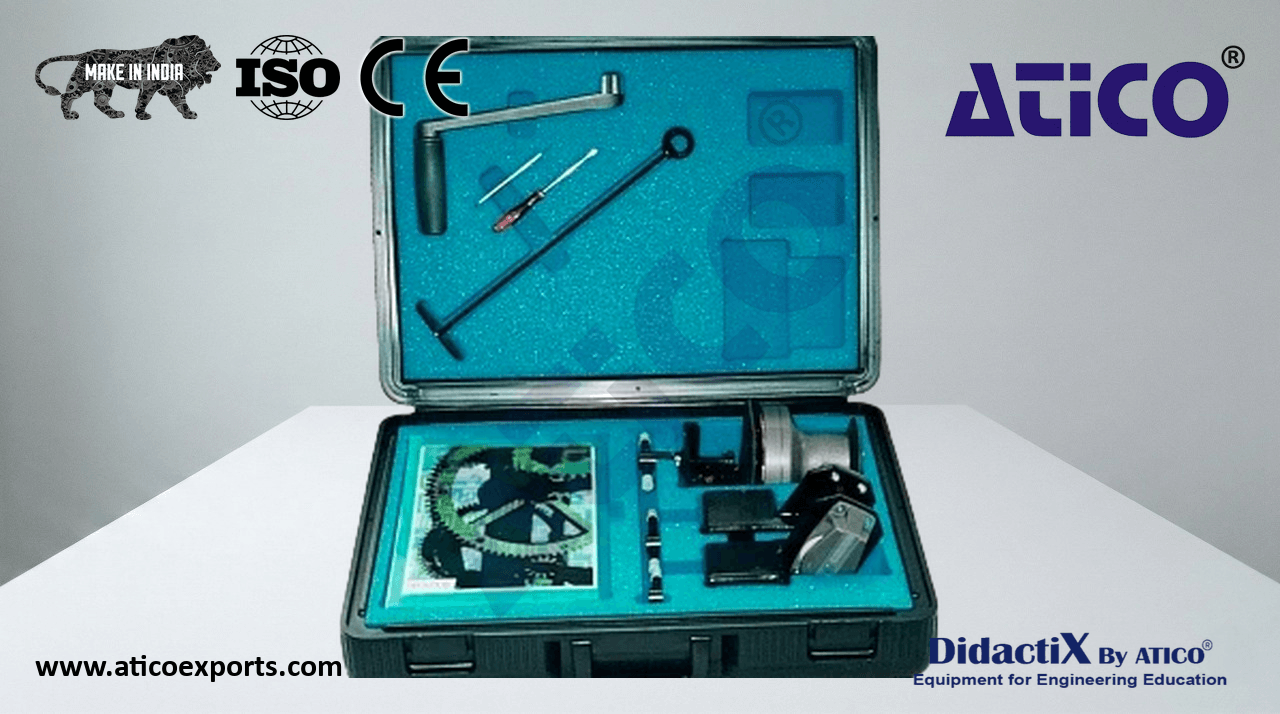

This kit allows the study of a 2-speed capstan used to hoist sails on a boat. Educational Objectives: Functional structure of kinematic chains, rotation guidance (rolling elements or plain bearings), materials study.

Kit 1

• 1 winch mounted on a fixing support
• 2 pulley supports
• 1 length of sheet (rope)
• Tooling required for assembly
• Spare parts set

Load

• 1 round mass of 25 kg with protective enclosure
• 9 balancing masses (from 50 g to 5 kg)
• CD-ROM with educational and technical resources and 3D drawing files

1 winch mounted on a fixing support
2 pulley supports
1 length of sheet (rope)
Tooling required for assembly
Spare parts set
1 round mass of 25 kg with protective enclosure
9 balancing masses (from 50 g to 5 kg)
CD-ROM with educational and technical resources and 3D drawing files
