Screw-Nut System

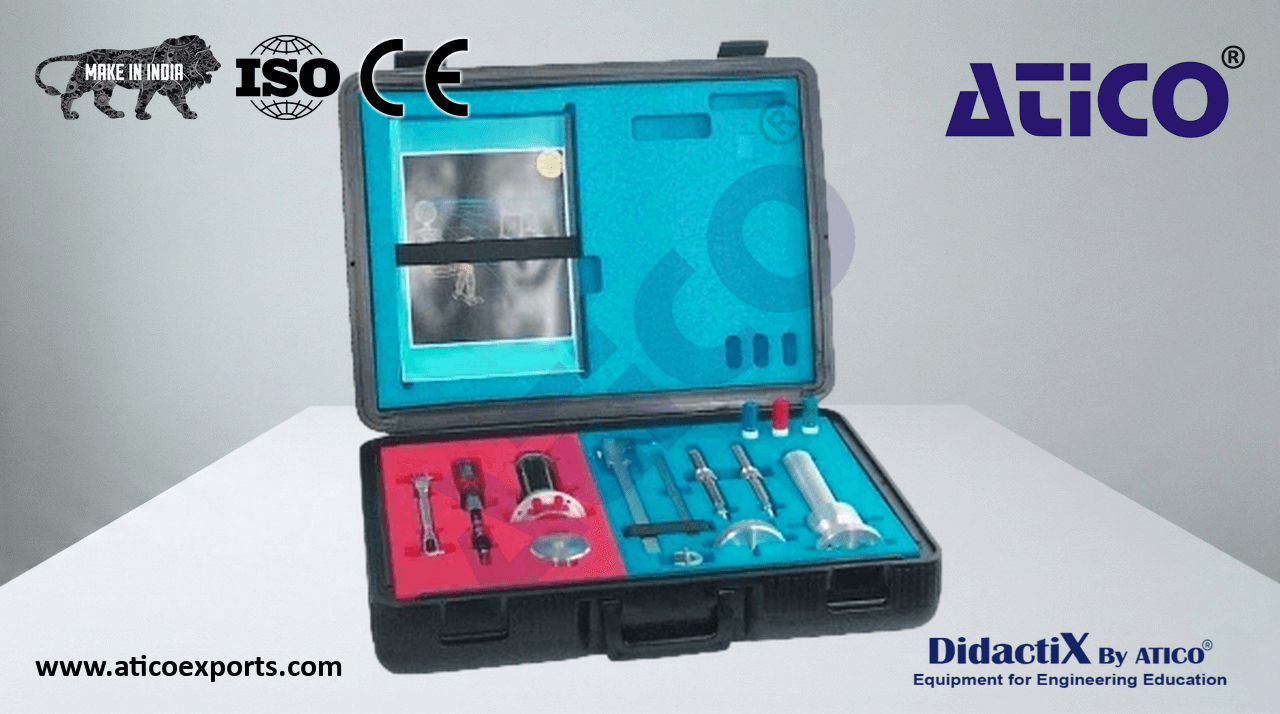

This kit enables the study of kinematic chains incorporating a screw-nut motion transformation mechanism. Educational Objectives: Functional analysis of industrial products, functional structure of kinematic chains, construction of mechanical joints, motion transmitters and transformers, materials study.

Composition

• An electromechanical actuator delivered with 3 interchangeable sub-assemblies:
• Ball screw-nut
• Reversible plain screw-nut
• Irreversible plain screw-nut
• An end-of-travel block for an automatic blind roller
• An automatic screwdriver and a boat rigging screw
• Measuring instruments (calipers, ruler)
• Tooling required for assembly operations
• CD-ROM with educational and technical resources and 3D drawing files

An electromechanical actuator delivered with 3 interchangeable sub-assemblies:
Ball screw-nut
Reversible plain screw-nut
Irreversible plain screw-nut
An end-of-travel block for an automatic blind roller
An automatic screwdriver and a boat rigging screw
Measuring instruments (calipers, ruler)
Tooling required for assembly operations
CD-ROM with educational and technical resources and 3D drawing files
