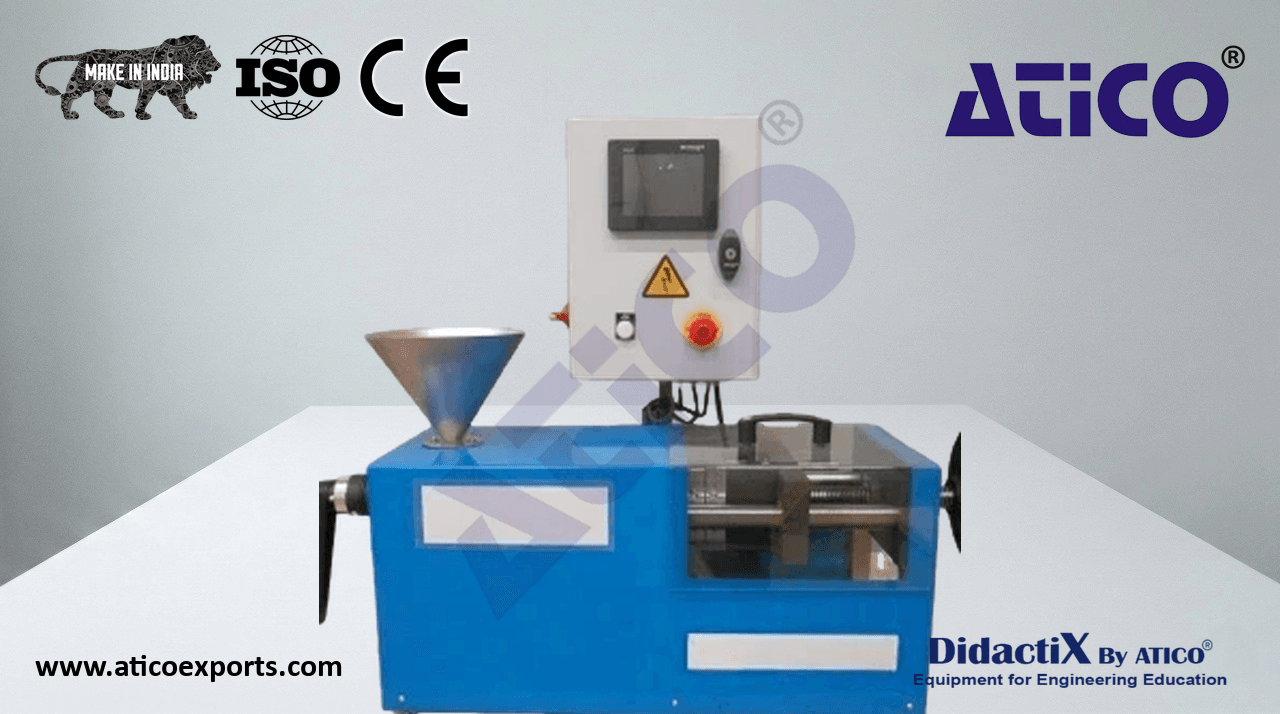

Semi-Automatic Injection Moulding Press

Injection moulding involves heating a thermoplastic material to a fluid state and injecting it under high pressure into a mould containing the negative impression of a part. This press, designed for education, enables injection of thermoplastic parts. A project may involve designing a mould cavity in CAD, producing it on a rapid prototyping machine and testing it with the press. Learn about Semi-Automatic Injection Moulding Press exporters for optimal educational outcomes.. The machine is ready to use and is supplied with a metal mould and 10 kg of material. Pedagogical Objectives: Validate the technological choice of plastic injection from cavities produced on rapid prototyping machines. Learn about Semi-Automatic Injection Moulding Press for educational labs for optimal educational outcomes.. Understand the thermoplastic injection process. Configure and adjust equipment. Learn about Semi-Automatic Injection Moulding Press suppliers for optimal educational outcomes.. Check results, validate or modify settings.

Technical Description: The system consists of:

• A frame providing machine support with 4 feet on a table or workbench
• A protective cover
• A temperature-regulated heating device
• An injection system for introducing material under pressure via a manually-actuated injection screw
• A moving platen carrying the ejector assembly adaptable to different cavities
• Two guide columns for moving platen translation
• A handwheel for mould opening and closing
• A cooling circuit with water reservoir for the fixed platen and feed block
• A cylindro-conical stainless steel granule feed hopper
• A PLC with touchscreen for visualizing and modifying injection parameters and controlling the injection cycle
• Three test protocols (modifiable)
• Two temperature regulators controlling injection temperature in two zones

Adjustable parameters:

• Material injection temperature (two zones)
• Torque limiter / injection time
• Hold time
• Decompression time
• Cooling time

Options: Two-plate flat mould for individual mould production by each student.
