Sensor Study System

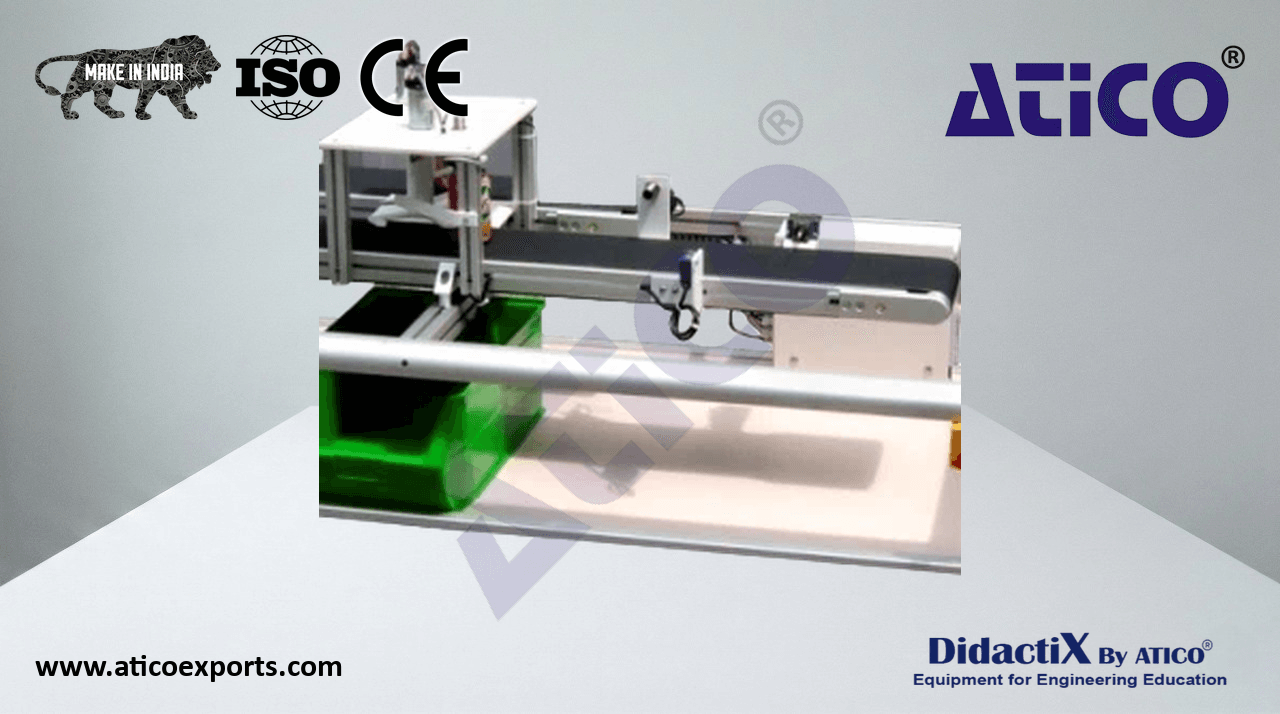

This motorized belt conveyor allows the study of on/off and analog sensors. Its function is to sort boxes of different heights and materials. It includes an inclined rail at the entrance of the first conveyor to feed boxes. Learn about Sensor Study System suppliers for optimal educational outcomes.. Once detected at the platform entrance (height detection), boxes are directed onto one of two conveyor belts to be routed to designated bins. Routing to the 2nd conveyor belt is done using a rotating platform and an electric actuator. Learn about Sensor Study System price for optimal educational outcomes.. Non-ferrous boxes are stored in a 3rd bin. There are 3 storage zones in total: large box storage zone, small box storage zone, non-ferrous or reject box storage zone. Learn about Sensor Study System India for optimal educational outcomes..

Operative Part:

• 1 stainless steel frame (1800 x 800 x 1800 mm)
• 1 dual-belt conveyor, belt width 150 mm, length 1500 mm for the 1st belt and 1000 mm for the 2nd belt, with a 220V motor-reducer
• 1 platform with 4 notches motorized by a 24V motor-reducer
• 1 diverter between belt 1 and belt 2 of the conveyor, actuated by a 24V motor-reducer
