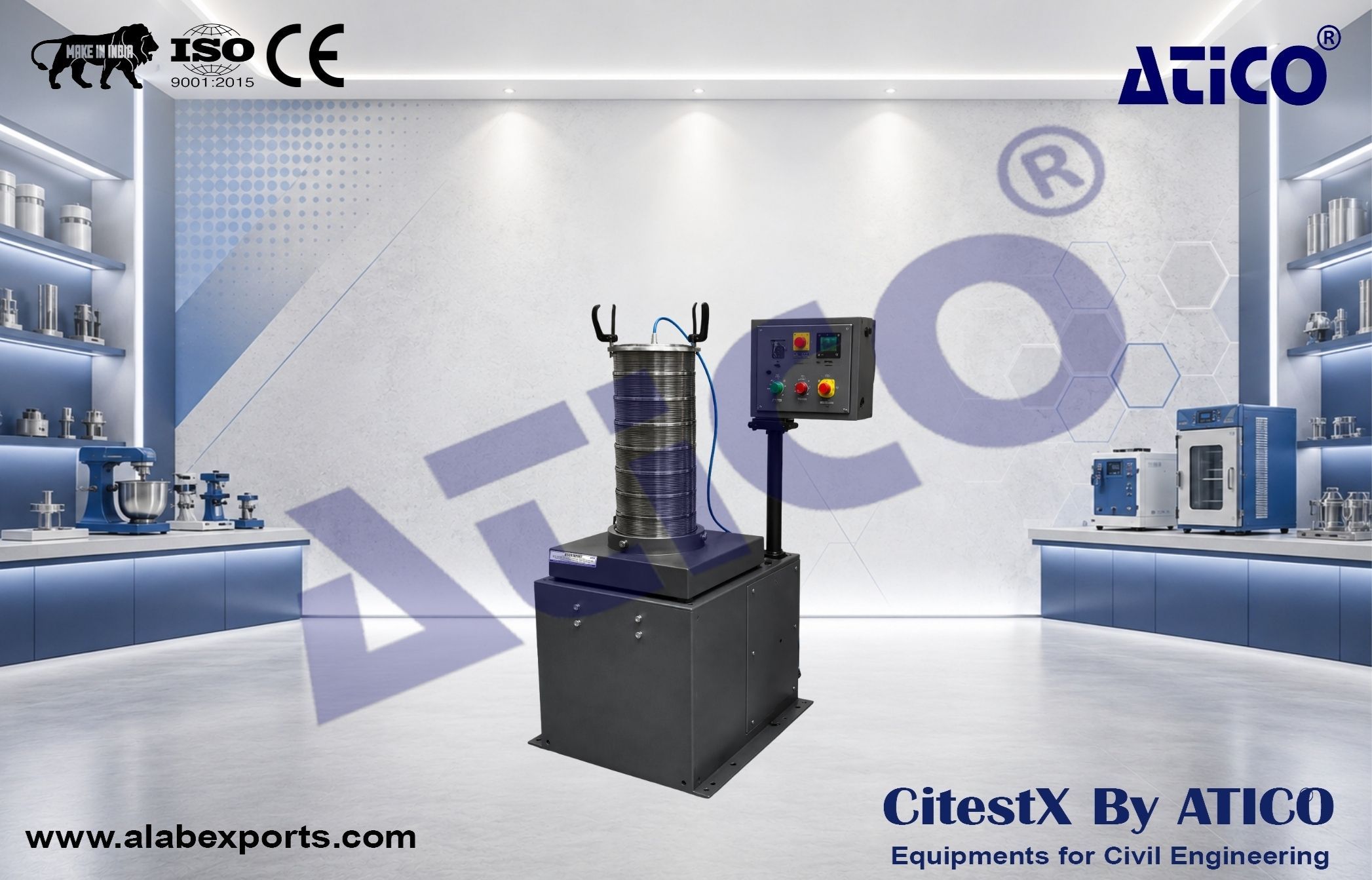

Sieve Shaker 200mm

Our Sieve Shaker °200mm is a reliable solution that delivers high performance in sample preparation and sieving tasks within laboratory environments. Suitable for both dry and wet sieving, the shaker efficiently handles a wide range of particle sizes. With user-friendly features and adjustable shaking speed, it provides flexible operation for various sample types.

• Multi-Sieve Capacity : Accommodates up to 8 stacked standard °200 mm x 50 mm test sieves simultaneously.
  Suitable for Dry and Wet Sieving: Adaptable for both dry and wet sieving processes, making it versatile for different sample preparation tasks in the laboratory.

• Wide Sieving Range : Operates with sieves from 20 °m to 20 mm mesh size, allowing efficient separation of materials across various sizes.

• Sieve Accessories : Includes a sieve bottom collecting pan and a top cover suitable for both dry and wet sieving, provided as standard with the shaker.

Working Principle :

The Sieve Shaker is a sample preparation device designed to separate materials into specific size ranges using °200 mm sieves. The process unfolds as follows:

• Sample Preparation : The sample is poured onto the top sieve in a stack of sieves placed inside the device. Each sieve has a specific mesh size that classifies the material accordingly.

• Shaking Motion : The device generates a shaking motion to move the sample through the sieves. This vibration allows particles to pass through sieve meshes based on their size. The shaking speed can be adjusted steplessly from 0 to 300 rpm for optimal separation.

• Particle Separation : As the sample moves downward through the sieve stack, particles are separated by size. Larger particles remain on the upper sieves, while smaller particles pass through to the lower levels, ultimately collecting in the bottom layer.

• Collection of Results : Once sieving is complete, each sieve is removed to analyze the material collected. The bottom collecting pan gathers the smallest particles.

Fields of Application :

• ISO 17827-1, Mining, Metallurgy, Recycling and Waste Recovery, Geology, Chemistry, Plastic and Polymer, Iron and Steel, Energy, Biotechnology, Environmental Management, Construction and Structure, Agriculture, Glass and Ceramics, Food, Geology, Pharmaceuticals and Medical

Application :

• Elimination, Separation, Fractioning

Timer Setting :

• Digital Timer

Sieving Motion (Circular) :

• Horizontal circular motion

Sieve Dimensions :

• ° 200 mm

Speed :

• Infinitely adjustable between 0–300 rpm

Power and Electricity :

• 0.37 kW, 220 V, 1p, 50 Hz
