Single-phase Automatic Power Factor Compensation Application

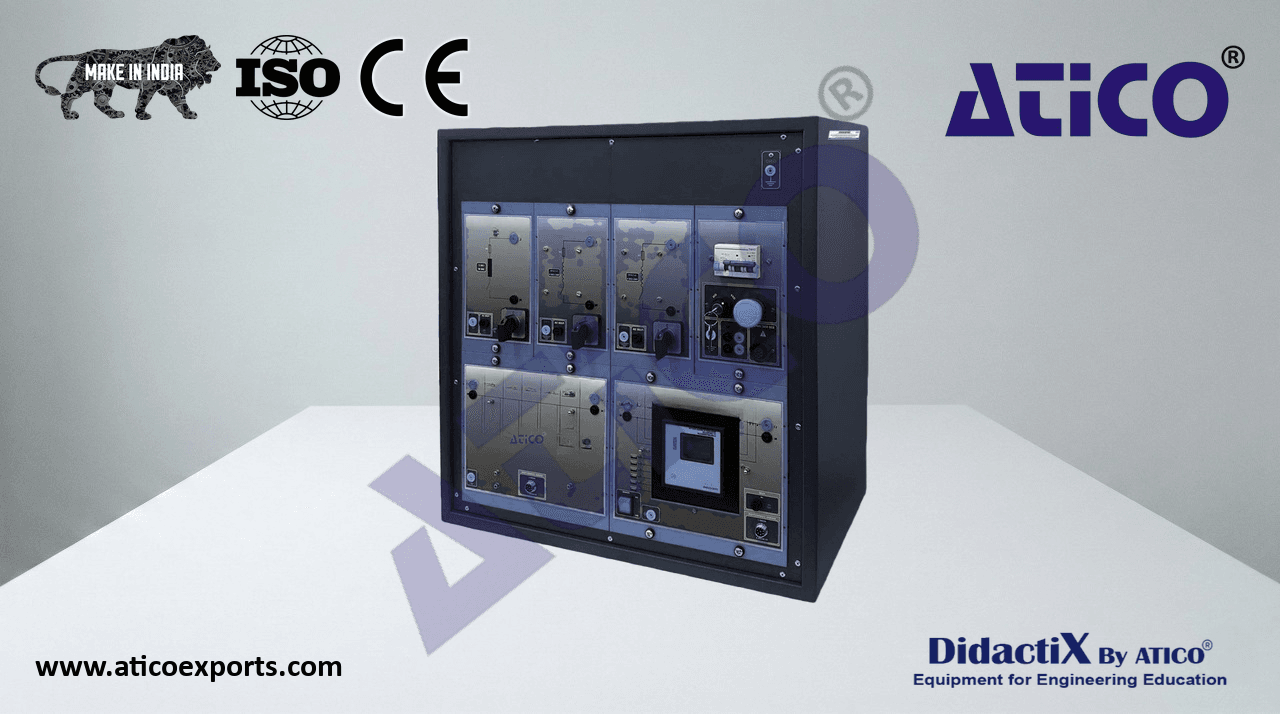

The Single-phase Automatic Power Factor Compensation Application, is an application designed to study the single phase automatic power factor controllers installed in the energy utilization points.

ATENG 11477 — Single-phase Automatic Power Factor Compensation Application

• The application “ATENG 11477” includes the following elements:
• N-ALI02. Main Domestic Power Supply Module.
• Supply voltage (single–phase): 230 VAC, 1PH + N.
  ON / OFF removable key.
• Output voltage connections:
• Two single-phase: 230 VAC.
  Single-phase supply hose with connecting plug. N-ALI02
• Differential magnetothermal 2 poles, 25 A, 30 mA AC 6 KA.
  Emergency stop push-button.
• N-CFPS. Single-phase Automatic Power Factor Controller Module.
  Power factor automatic controller.
  Regulation in four quadrants.
  FCP (fast computerized program) system.
• Compensation stages: 6 relay type outputs.
  N-CFPS
  LCD screen with three digits and more than 20 icons to indicate different operating conditions.
  ON / OFF switch.
  GND terminal.
• N-CAR19S4D. Single-Phase Digital Capacitor Bench Module.
  Digital capacitors bank module.
  Six stages of 7 µF.
• Voltage supply of: 230 VAC.
  Step signal input jack.
  Micro connector of 8 pins.
  N-CAR19S4D
  GND terminal.
• N-IND. Single-phase Inductance Module (2 units).
• Inductance: 1.4 H.
• Switch:
• Position 0: Circuit opened.
• Position 1: Circuit closed.
• Fuse: 2 A. N-IND
• N-REF. Single Phase Fixed Resistor Module.
• Resistor value: 150 Ohm.
• Maximum power: 500 W.
• Selector:
• Position 0: Circuit opened.
• Position 1: Circuit closed. N-REF
• Fuse: 2 A.
• All necessary cables to realize the practical exercises are included.
  Cables and accessories, for normal operation.
