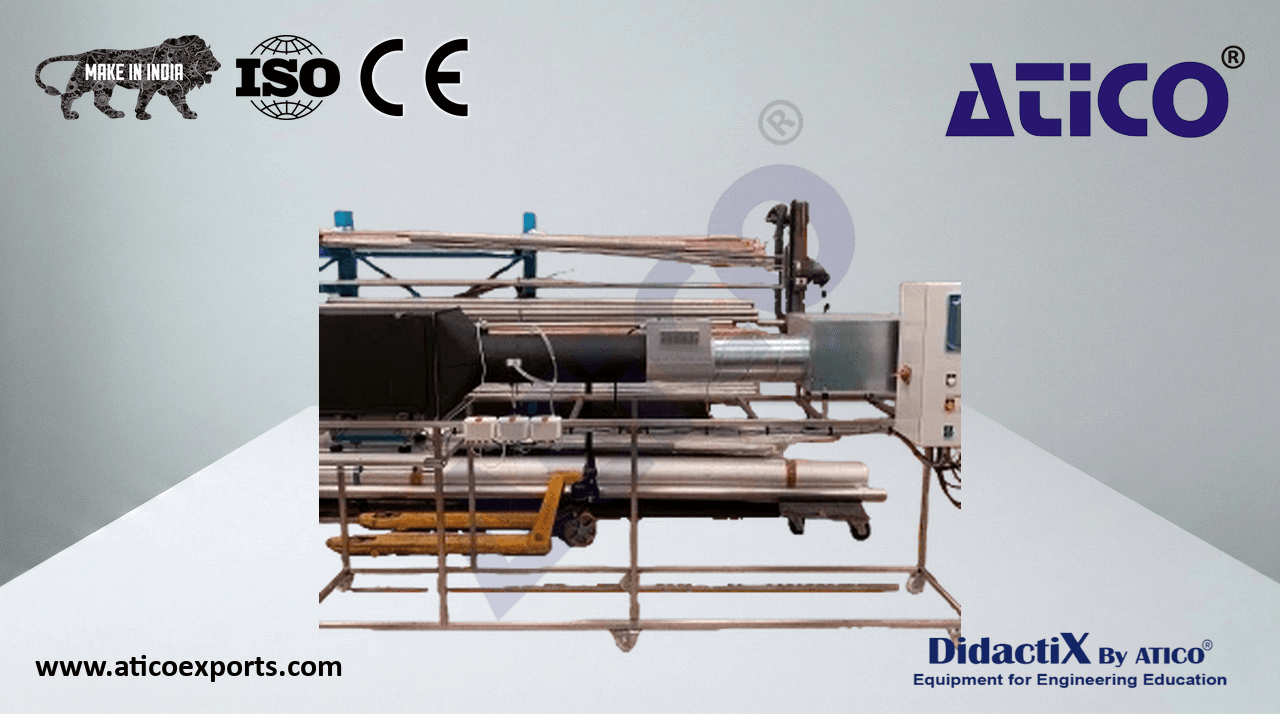

Sludge Drying Pilot

Sludge drying pilot by convection and radiation. Heating is provided by two devices: by radiation (two lamps simulating sunlight) and by convection (a fan and an electric air heater), both adjustable. Educational Objectives: Comparison of drying efficiency by radiation, convection, or combined system. Learn about Sludge Drying Pilot price for optimal educational outcomes.. Study of the effect of material mixing on drying time. Energy balance per amount of evaporated water. Learn about Sludge Drying Pilot suppliers for optimal educational outcomes.. Study of the influence of heating parameters on drying speed. Water balance. Learn about Sludge Drying Pilot India for optimal educational outcomes.. Measurements cover: material weight, air humidity, air temperature, energy consumed, and air flow rate.

The material to be dried is placed on a circular stainless steel plate with a porous base to promote aeration. The plate is located inside a closed enclosure in the form of a box with a transparent door.

Bench mounted on a stainless steel tube chassis equipped with casters
Air heating device: power 3 kW
Fan: approximately 200 m³/h
Two IR lamps: 100W each
Stirrer with mixing element
A removable humidity/temperature probe with display
A hot air temperature probe
An air flow rate measurement device
A 0–5 kg balance with display
IP55 control cabinet containing: enclosure door-open safety device, temperature regulator, fan speed drive, stirrer speed drive, adjustment buttons
