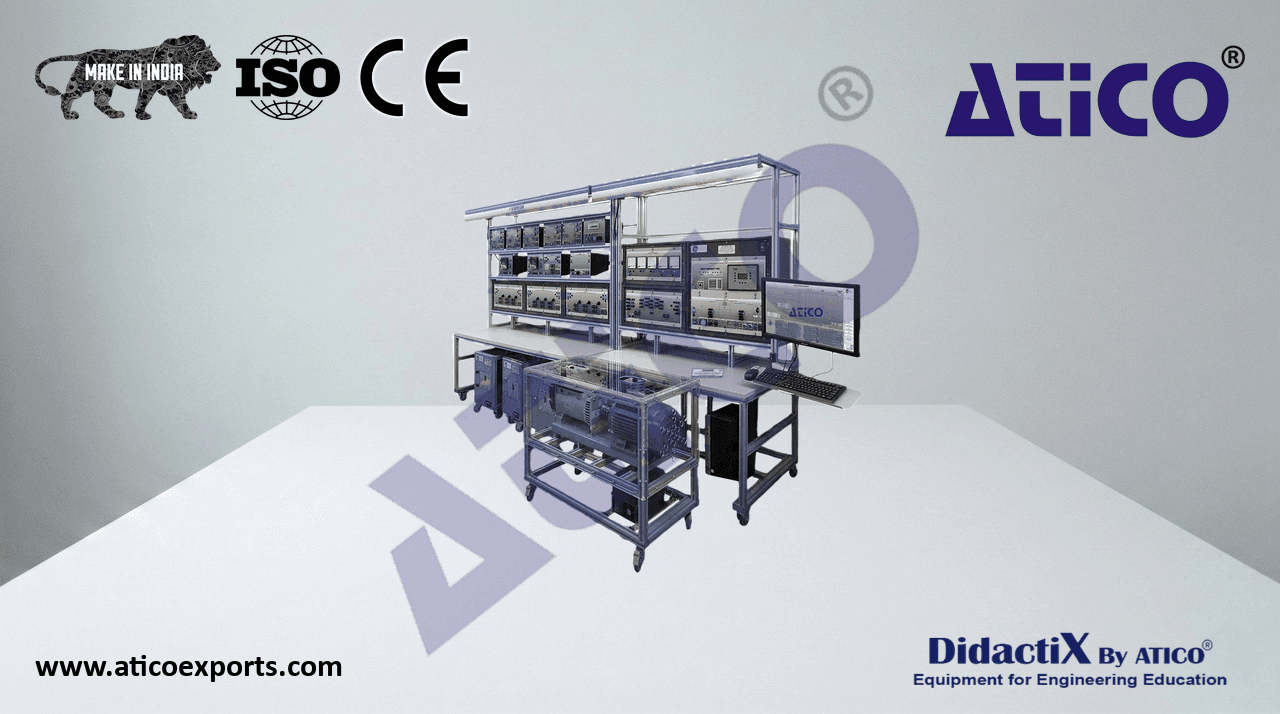

Smart Grid Power System with Power Generation, Transmission,

Loading product…

Technical Specifications

ATENG 11437 — Smart Grid Power System with Power Generation, Transmission, Distribution and Loads, with SCADA

(for main items)

With this unit there are several options and possibilities:
Main items: 1, 2, 3 and 4.
Optional items: 5, 6 and 7.
Let us describe first the main items (1 to 4):
1AEL-CPSS-01. Application:
N-ALI01. Industrial Main Power Supply Module.
Supply voltage: 400 VAC, 3PH + N.
ON / OFF removable key.
Output voltage connections:
Three-phase + Neutral: 400 VAC.
Single-phase: 230 VAC.
Three-phase supply hose with IP44 3PN + E 32 A 400 V connecting plug.
Differential magnetothermal 4 poles, 25 A, 30 mA AC 6 KA. N-ALI01
Emergency stop push-button.
N-PPIM2. Instrumentation Module 2.
Three-phase Wattmeter:
Measuring range: 0 - 5 kW.
Three-phase varimeter:
Measuring range: 0 - 5 KVar.
Voltmeter:
Measuring range: 0 - 500 VAC.
Frequency meter:
Measuring range: 45 - 55 Hz. N-PPIM2
DC meter:
Measuring range: 0 - 5 A.
N-PSUB3. Power Generation Substation Module 3.
Supply voltage: 400 VAC, 3PH + N.
ON / OFF switch.
Power and signals connection:
Auxiliary connection.
Three-phase turbine supply hose with IP44 3PN+E 32 A 400 V connecting plug.
Three-phase generator supply hose with IP44 3PN+E 32 A 400 V connecting plug.
Three switches to choose between the different modes:
Local and remote control mode.
Manual and automatic speed control.
Manual and automatic excitation control
Three control switches to:
Start and stop the turbine.
Give permission to synchronize the generator with the grid. N-PSUB3
Give permission to close 52NET circuit breaker.
Two potentiometers to regulate:
Turbine speed.
Generator excitation.
Emergency stop button.
Two circuit breakers for synchronization and stand-alone operations.
Different terminals to measure.
Ethernet connection: RJ45 communication port for SCADA remote control.
Automatic speed and voltage controller (easygen):
Enables to connect up to 16 electric generators in parallel-island with distribution of active and
reactive load and start/stop in function of the load demand.
Enables to connect a generator in parallel with the grid.
Enables different switches control modes, such as opening, closing and synchronization.
Analogical outputs to control voltage and frequency regulators.
Three-phase measurement of the grid and the generator voltage.
Three-phase measurement of the generator intensity and power.
Single-phase measurement of the grid intensity.
Protection system:
Generator:
Maximum/minimum voltage (59/27), maximum/minimum frequency (81O/U), voltage
asymmetry, detection of dead busbars, overvoltage (32), load unbalance (46), negative
sequence power/reduced power (32R/F), overcurrent by defined curve (50/51), inverse time
overcurrent (IEC255), measured ground fault (50N/51N), phase rotation, switches faults.
Network:
Maximum/minimum voltage (59/27), maximum/minimum frequency (81O/U), vector jump,
phase rotation.
Six alarms:
Alarm 1: Reverse power.
Alarm 2: Overcurrent.
Alarm 3: Over/under voltage.
Alarm 4: Inverse time overcurrent.
Alarm 5: Over/under frequency.
Alarm 6: Shutdown alarms.
Four operation signals:
Ready for operation.
Start request.
Synchronization conditions.
Permission for synchronization.
5

Complete Technical Specifications (for main items)

N-EALD. Network Analyzer Module with Oscilloscope and Data Acquisition (2 units).
The network analyzer module allows fulfilling measurements, displaying and analyzing all the
parameters of the AC electrical networks. It has an LCD screen and push-buttons for the navigation
through the different menus. It includes a specific software for monitoring current and voltage
curves, harmonics display, tariffs programming, alarms programming and electrical parameters
storage.
Features:
Multifunctional three-phase power meter:
N-EALD
Three-phase and single-phase voltage. Up to 690 VAC L-L.
Line and neutral nominal current: 10 A.
Active, reactive and apparent power.
Suitable frequencies: 25 Hz, 50 Hz, 60 Hz and 400 Hz.
Display of the V-I vector diagram.
Supply voltage: 85 – 265 VAC.
Energy quality control:
Current and voltage individual harmonics measurement. Up to the 40th harmonic.
Voltage and THD current, TDD current and K-Factor.
Maximums and minimums display.
Waveforms display, 128 samples/sec.
Events and data storage:
Harmonics analyzer:
Voltage and THD current, TDD current and K-Factor, up to the 40th harmonic.
Current and voltage harmonic spectrum and angles.
Tariff programming:
Class 0.5S IEC 62053 – 22, active and reactive power in four quadrants.
Measurement of the total and per phase three-phase active, reactive and apparent
powers.
Usage time, four energy/demand records of total tariffs.
Eight tariffs, four seasons and four types of days.
Automatic daily report of energy consumption maximums and minimums.
Communications:
RS – 485 communication port.
N-BUS08. Distribution Busbar Module (4 units).
Supply voltage: single-phase 230 VAC.
Double busbar typology, with two disconnectors and one circuit breaker.
Two interconnection terminals.
One power input/output to connect lines, generation, loads, etc.
Two push-buttons by each disconnector/circuit breaker to open and close them.
State indications lamps:
N-BUS08
Two lamps to indicate the state of busbars.
Three pilot-lights to indicate the state of the circuit breaker and the disconnectors.
Two Ethernet connections.
N-BUS09. Coupling Busbar Module.
Supply voltage: single-phase 230 VAC.
Double busbar topology, with two disconnectors and one circuit breaker. The circuit breaker
open and close the circuit between the two busbars.
Two interconnection terminals.
Two push-buttons by each disconnector / circuit breaker to open and close them.
State indications lamps:
N-BUS09
Two lamps to indicate the state of busbars.
Three pilot-lights to indicate the state of the circuit breaker and the disconnectors.
Two Ethernet connections.
N-AE1CD. Transmission Lines Simulation Digital Module.
Power supply voltage: 230 VAC +GND.
Line voltages: 400 VAC + N.
Three-phase line with variable parameters.
Concentrated parameters line.
Two capacitances banks between line and ground composed by three capacitances of 2 µF.
Resistance of the line that can be wired independently: N-AE1CD
One resistor of 15 Ω.
One resistor of 33 Ω.
Inductance of the line with several values: 32 mH, 72 mH.
Neutral resistor of 15 Ω.
Fuse: 1 A.
6

Complete Technical Specifications (for main items)

N-REG16. Voltage Regulation Module 1.
Power terminals 230 VAC.
24 VDC output terminal.
24 VDC input terminal (voltage increase).
24 VDC input terminal (voltage reduction).
Switch with three positions.
Power connector. N-REG16
Signal connector.
Fuses: 3 x 10 A.
Power input terminals:
Power input connections: L1, L2, L3, N.
Power output terminals:
Power output connections: L1, L2, L3, N.
TRANS3/5KRM. Three-phase Autotransformer with Motor Voltage Regulator, 400/400 VAC,
TRANS3/5KRM
5 kVA.
Three-phase grid autotransformer.
Nominal power: 5 kVA.
Primary winding voltage: 400 VAC.
Secondary winding voltage: 440 VAC.
Signal connector for motorized voltage regulation control.
TRANS3/5KGR. Three-phase Grid Transformer, 400/400 VAC, 5 kVA.
TRANS3/5KGR
Three-phase grid transformer.
Nominal power: 5 kVA.
Primary winding voltage: 400 VAC Δ.
Secondary winding voltage: 400 VAC Y.
Pre-insertion resistors for the reduction of electrical transients.
TRANS3/5KSU. Three-phase Step-up Transformer, 400/400 VAC, 5 kVA.
Three-phase grid transformer.
Nominal power: 5 kVA. TRANS3/5KSU
Primary winding voltage: 400 VAC Y.
Secondary winding voltage: 400 VAC Δ.
N-ERP-MF01. Digital Fault Simulator Module.
It allows injecting different single-phase, two-phase and three-phase faults, with or without
impedance, at the desired point through the fault and line terminals.
Trip time potentiometer.
Ethernet connection: two communication ports for SCADA remote control.
N-ERP-MF01
GMG4.5K3PH. 4.5 KW Generator-Motor group.
Motor-generator group coupled in an aluminum frame with wheels.
Generator nominal power: 4.5 kVA.
Generator nominal speed: 3000 rpm.
Generator nominal output current: 6.5 A.
Generator nominal excitation current: 4 A.
Generator power factor: 0.8.
Generator nominal output voltage: 3 x 400 VAC.
GMG4.5K3PH
Frequency: 50/60 Hz.
Motor nominal power: 5 kVA.
Motor nominal current: 7.2 A.
Motor nominal speed: 3000 rpm.
AEL-WBMP. Electrical Workbench (Mobile Small).
Anodized aluminum structure.
Melamine board, 19 mm.
Four wheels for an easy movement of the bench, two of them with safety brakes.
Fluorescent tube, 58 W.
ON / OFF selector switch.
Dimensions: Height 2000 mm (78,74016 inches), width 1600 mm (74,74016 inches), depth 600
mm (23,622 inches). AEL-WBMP
7

Complete Technical Specifications (for main items)

AEL-WBMG. Electrical Workbench (Mobile Big).
Anodized aluminum structure.
Melamine board, 19 mm.
Four wheels for an easy movement of the bench, two of them with safety brakes.
Fluorescent tube, 58 W.
ON / OFF selector switch.
Dimensions: Height 2000 mm (78,74016 inches), width 2000 (78,74016 inches) depth 600
mm (23,622 inches).
Elements required (at least one) (Not included): AEL-WBMG
TPEL/1800W. Single-phase AC/DC Electronic Load of 1800W (3 units).
The TPEL/1800W electrical load stands out for its versatility in operating in both AC and DC.
With a wide power range from 0 to 1800VA and an adjustable frequency from 45 Hz to 450
Hz, this electronic source offers exceptional capabilities.
With its advanced measurement capabilities, 7-inch LCD display, and features such as the
built-in oscilloscope, the TPEL/1800W is the ideal solution for laboratory testing of most
of ’s unit such as UPS, inverters, AC power supplies, electrical generators and AC
electronic components. In addition, its connectivity via LAN and USB interfaces ensures reliable
and fast control, adding an additional level of efficiency to its capabilities.
Technical Features: TPEL/1800W
Frequency Range: 45 Hz~450 Hz.
Power Range: 0~1.8 kVA
Voltage Range: 50-420 Vrms, 15-260 Vrms.
Parallel Connection/Three Phase Control: Capacity can be extended up to 43.2 kVA.
7 Inch LCD Display: Provides a clear and accessible interface.
Oscilloscope Function: Allows display of voltage and current waveforms.
High Speed AD Sampling: Captures real-time waveforms.
Measurement Modes: Includes Vrms, Vpk, Vdc, Irms, Ipk, Idc, W, VA, VAR, ATENG 11797, PF and FREQ.
Harmonic Measurement: Up to harmonic 50 (THD-V).
AC Electronic Load: DC/CR/CP modes.
DC Electronic Load: DC/CR/CP/CV modes.
External Analog Control: 0~10 V analog input, with voltage and current monitoring functions.
Protection Functions: OTP, OCP, OVP, UVP and OPP.
Communication Interfaces: LAN and USB, plus external interface for USB flash disk.
N-CAR35T3D. Three-phase Digital Bank of Commutable Resistors Module.
Configurable star and delta connection.
Three banks with three three-phase resistors of 1600 Ω.
Nominal voltage: 400 VAC.
Nominal power: 3 x (3 x 300) W.
Fuses: 6 x 5 A.
Ethernet connection. N-CAR35T3D
Digital bank of commutable resistors module.
N-CAR36T3D. Three-phase Digital Bank of Commutable Inductances Module.
Configurable star and delta connection.
Three banks with three three-phase inductors of 5 H.
Nominal voltage: 400 VAC.
Nominal power: 3 x (3 x 300) Var.
Fuses: 6 x 5 A.
Ethernet connection. N-CAR36T3D
Digital bench of the commutable inductance module.
N-CAR19T3D. Three-phase Digital Bank of Commutable Capacitors Module.
Configurable star and delta connection.
Three banks with three three-phase capacitors of 2 µF.
Nominal voltage: 400 VAC.
Nominal power: 3 x (3 x 300) Var.
Fuses: 6 x 5 A.
N-CAR19T3D
Ethernet connection.
Digital bank of commutable capacitor module.
8
