Smart Grids Battery Storage Application

The Smart Grids Battery Storage Application, to study cutting-edge energy storing systems with smart battery and grid inverter.

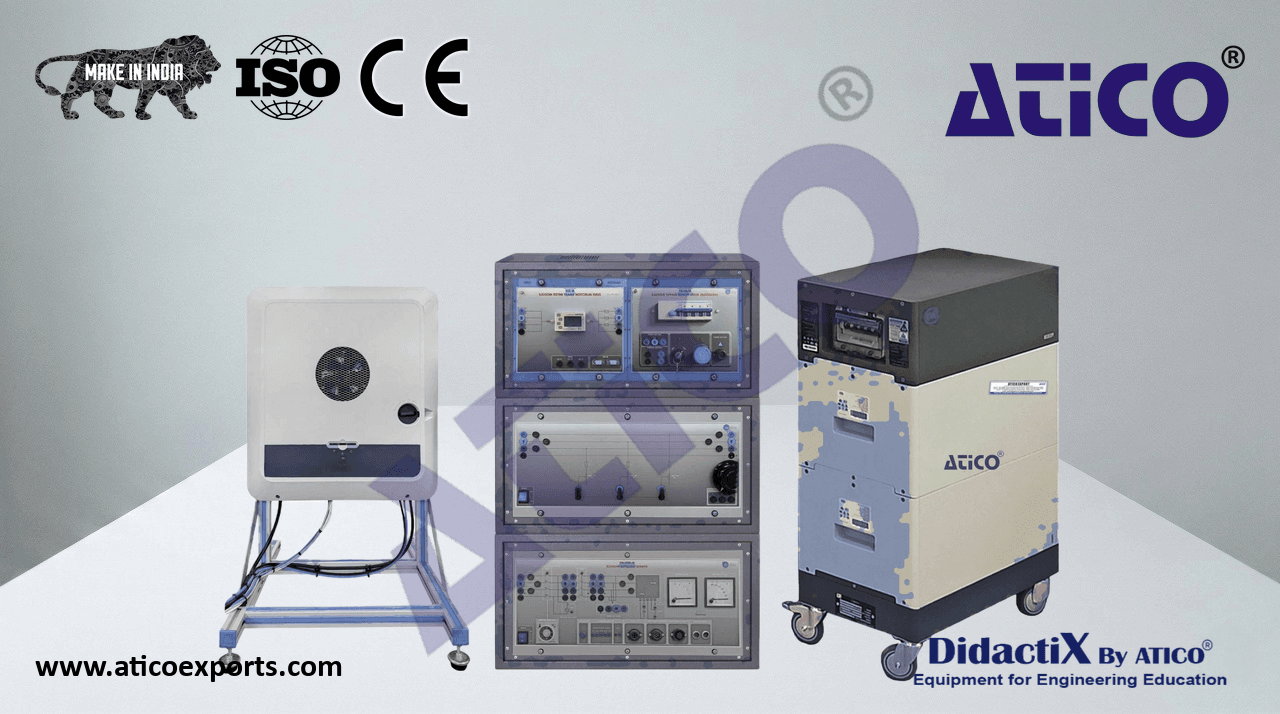

ATENG 11588 — Smart Grids Battery Storage Application

• The “ATENG 11588” application includes the following modules:
• N-ALI01. Industrial Main Power Supply Module.
• Supply voltage: 400 VAC, 3PH + N.
  ON / OFF removable key.
• Output voltage connections:
• Three-phase + Neutral: 400 VAC.
  N-ALI01
• Single-phase: 230 VAC.
• Three-phase supply hose with IP44 3PN + E 32 A 400 V connecting plug.
• Differential magnetothermal, 4 poles, 25 A, 30 mA AC 6 KA.
  Emergency stop push-button.
• BAT3. Lithium-Iron-Phosphate Battery.
  Long life battery.
• Battery capacity: 2000 Wh.
• N-REVT/1K. 1 kW Three-Phase Variable Resistors Module.
  Three banks with three-phase variable resistances of 150 – 500 Ohm.
  BAT3
• Supply voltage: 3 x 150 – 500 Ohm.
• Fuses: 3 x 2 A.
  Fan forced cooling.
• N-INV/HY. Hybrid Inverter Module.
  Three-phase inverter.
  Three-phase energy injection into electrical grid.
  N-REVT/1K
• Terminals:
  One DC input voltage.
  One three-phase AC output voltage.
• Nominal power: 2000 W.
• Output voltage: 400 VAC.
• Frequency: 50 Hz.
• PSPS/A. Advanced Panel Simulator Power Supply.
• Open circuit voltage: 500 V.
• Closed circuit current: 10 A. N-INV/HY
• Power output: 1500 W.
• N-ZIS. Z-WAVE Zero Injection Smart Meter Module.
• Nominal voltage: 400 VAC.

PSPS/A

• Maximum current: 3 x 10 A.
• Self-consumption: 2.5 W.
• Starting current: 40 mA.
• Accuracy class: 1.
• Active energy accuracy: Class B (UNE-EN50470).
• Reactive energy accuracy: Class 2 (EN/IEC 62053-23).
  Eight digits LCD display.
  N-ZIS
  IP51 (front frame) and IP52 (terminals) protections.
  Modbus RTU communication.
• All necessary cables to realize the practical exercises are included.
  Cables and accessories, for normal operation.
