Solar Cell Characteristics

EXPERIMENT: I-V CHARACTERISTICS OF SOLAR CELL & DETERMINATION OF OPEN CIRCUIT VOLTAGE, SHORT CIRCUIT CURRENT, EFFICIENCY, MAXIMUM POWER POINT POWER & FILL FACTOR

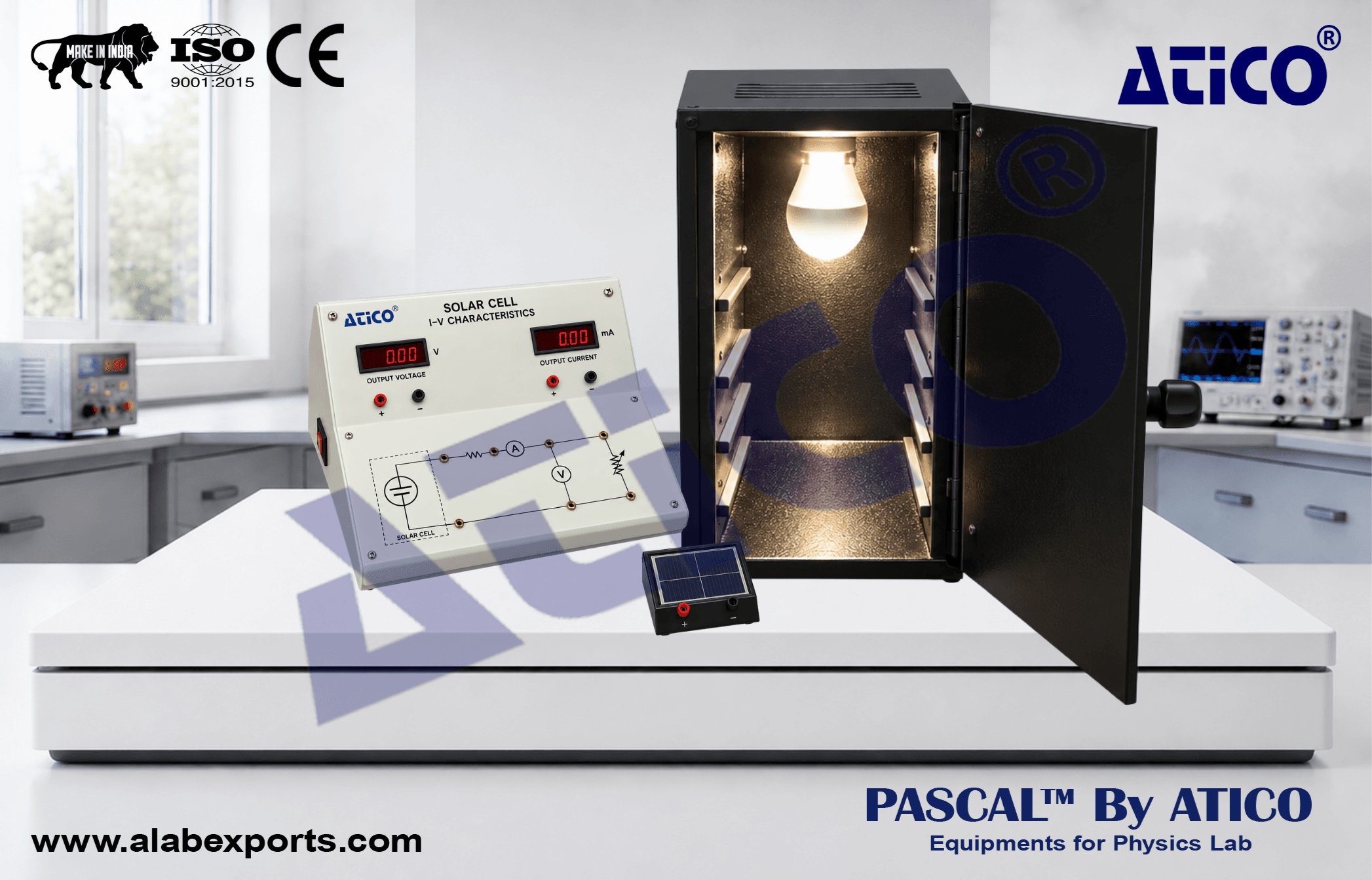

EXPERIMENT SETUP CONSISTS OF:

• Solar Cell Characteristics Kit – With digital millivoltmeter and digital ammeter
• Illumination Chamber – Halogen bulb based with cooling fan and slots for solar cell
• Solar Cell Module – Monocrystalline type, single cell of size 100 × 100 mm
• Decade Resistance Box – Single dial type, 0.1 Ω to 1 Ω load
• Set of Patch Cords

OPTIONAL:

• Digital Lux Meter – Measures up to 200,000 lux

Designed and manufactured by Atico Export to meet the practical demands of modern laboratories.
