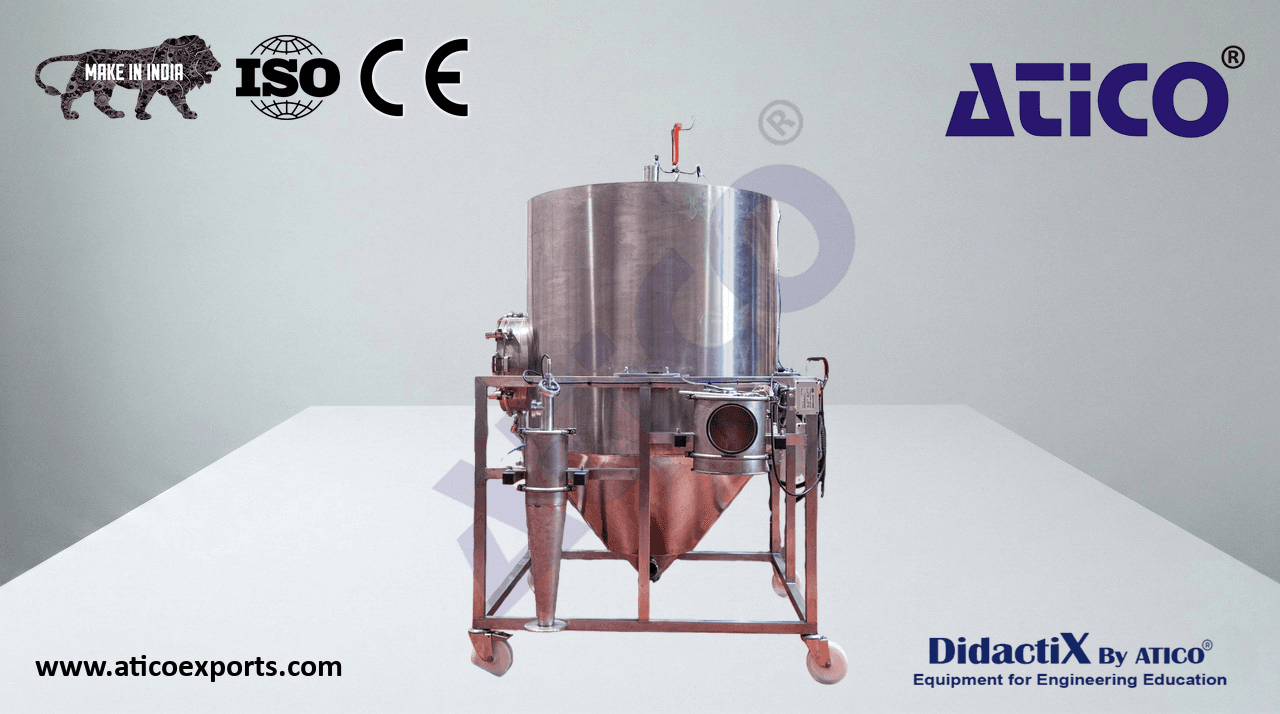

Spray Drying Pilot Unit

A product solution in a solvent (water) is dehydrated to obtain the product in powder form. The solution is injected co-currently with air through a two-fluid atomization nozzle (product/compressed air) that generates a mist of very small droplets. A stream of very hot air evaporates the solvent. Learn about Spray Drying Pilot Unit suppliers for optimal educational outcomes.. Pedagogical Objectives: Study of the following experimental parameters: atomization of a solution; influence of drying air temperature and flow rate; influence of atomization air flow rate; influence of product feed flow rate. Calculations: heat balances; mass balance. Learn about Spray Drying Pilot Unit exporters for optimal educational outcomes..

Technical Description: Fully insulated cylindro-conical 304L stainless steel atomization chamber, mounted on a welded 304L stainless steel chassis with casters (at least two with brakes). Air enters the tower tangentially at the top.

Removable circular door with insulated DN100 sight glass
Illuminated DN100 sight glass
Nozzle for Pt100 temperature probe at the base of the atomization tower
Nozzle for pressure switch at the base of the atomization tower
Nozzle for counter-current or co-current operation mode
9.7" touchscreen for: viewing a real-time machine synoptic; recording data in .CSV format; executing control commands
Viewing a real-time machine synoptic
Recording data in .CSV format
Executing control commands
USB output for recorded data retrieval
Push-button emergency stop
General start button
