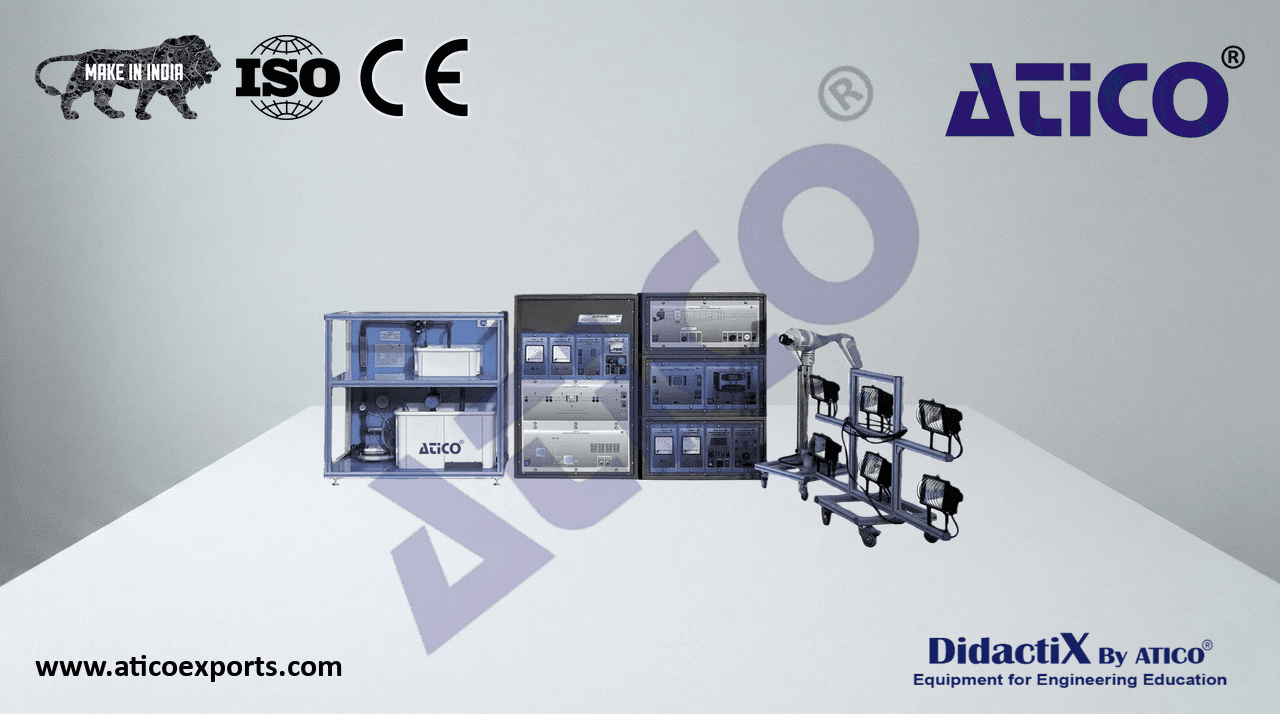

Stand-alone Water Pumping Application

The Water Pumping Application, to show the user the basic principles of operation of pumping equipment in isolated networks, exposing in a didactic way the elements involved in the process of generation and pumping.

ATENG 11491 — Stand-alone Water Pumping Application

• The “ATENG 11491” application includes the following elements:
• N-ALI02. Domestic Main Power Supply Module.
• Supply voltage (single-phase): 230 VAC, 1PH + N.
  ON/OFF removable key.
• Output voltage connections:
• Two single-phase: 230 VAC.
  N-ALI02
  Single-shase supply hose connecting plug.
• Differential magnetothermal, 2 poles, 25 A, 30 mA AC, 6 KA.
  Emergency stop push-button.
• N-PLOC. Pumping Local Control Module.
  Power source input terminals.
  Measurement connectors.
  DC/DC converter.
  Output terminals.
  Remote control LED indicator.
  Maximum level LED indicator.
  N-PLOC
  Minimum level LED indicator.
  Local control switches.
  Flow meter signal connectors.
  Connectors for variable control (communication signal ports).
  ON/OFF switch.
• Supply voltage of the module: 230 VAC.
• Nominal operating voltage with the pump controller: 36 V.
• DC working voltage range (without pump regulator): 24 – 36 V.
• Peak input power with regulator: 175 W.
• Maximum motor output power: 160 W.
• 5 A fuses.
• N-DCPWS-36V/150W. 36 VDC, 150 W Power Supply Module.
  LED indicator.
  DC output terminals.
  Auxiliary outlet sockets.
• 5 A fuse.
• ON/OFF switch. N-DCPWS-36V/150W
• Output voltage: 36 VDC.
• Power: 150 W.
• MED65. Digital Multimeter (2 units).
• This module has a 3 ½ digit digital multimeter, with 4 mm double connector termination cables to
  facilitate interconnections.
• With this digital multimeter we can measure:
  Voltage.
  Current. MED65
  Resistance.
  Capacitors capacity.
  Temperature.
  3

Specificacions

• PTWM. Pumping Unit with Two Water Tanks and Manual Control of Manometric Height.
  Bench-top unit.
  Anodized aluminum frame and panels made of painted steel.
  Main metallic elements made of stainless steel.
  Diagram in the front panel with distribution of the elements similar to the real one.
• Pumping tank: 25 l (approx.)
• Accumulation tank: 75 l (approx.)
  Pressure pump.

PTWM

• Pump voltage: 24 – 36 V.
• Maximum pumping intensity: 4 A.
  Manual valve (V-2).
  Maximum tank level sensor (SN-1).
  Minimum well level sensor (SN-2).
  Manometer of the pipeline (M-1).
  Analogue flow meter.
  Drain valve (V-1).
  Pipes and piping.
  Multimeter.
  AC power cables.
