Stand-Alone Wind Turbine Application

The Stand-Alone Wind Turbine Aplication, for the training at both the theoretical and practical levels in the field of wind turbines.

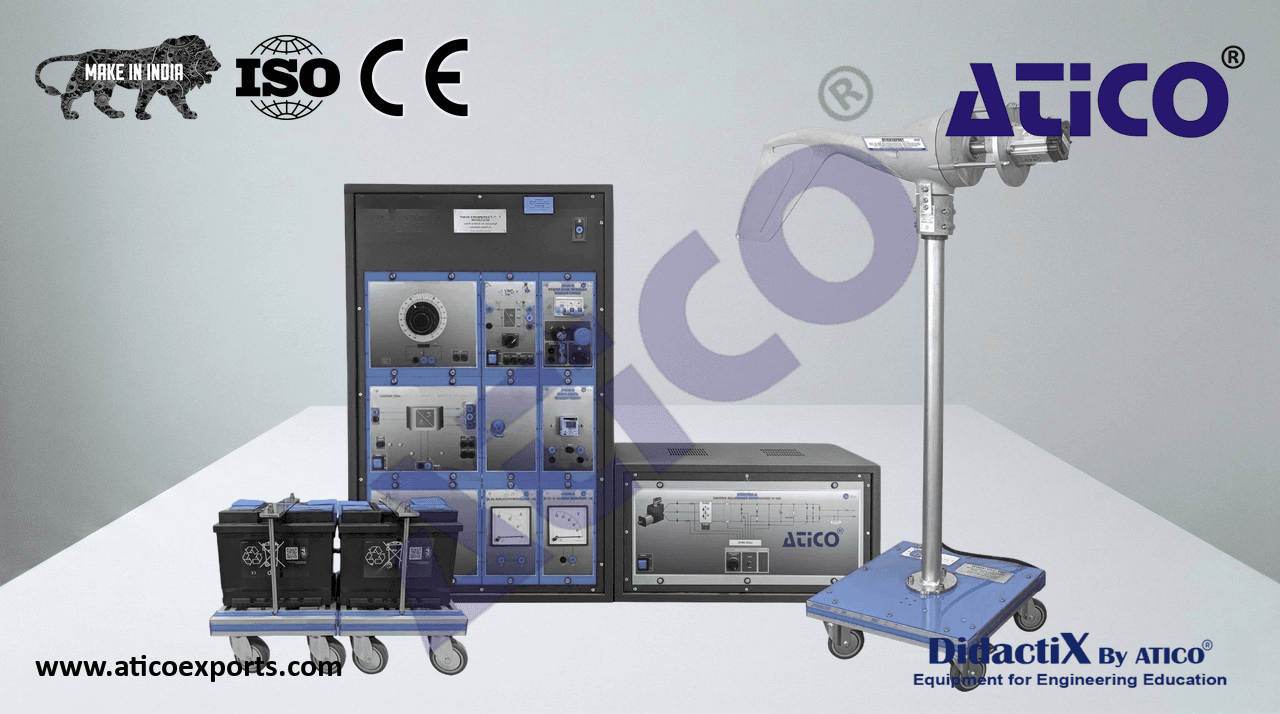

ATENG 11515 — Stand-Alone Wind Turbine Application

• The “ATENG 11515” application includes the following elements:
• N-ALI02. Domestic Main Power Supply Module.
• Supply voltage (single-phase): 230 VAC, 1PH + N.
  ON/OFF removable key.
• Output voltage connections:
  N-ALI02
• Two single-phase: 230 VAC.
  Single-shase supply hose connecting plug.
• Differential magnetothermal, 2 poles, 25 A, 30 mA AC, 6 KA.
  Emergency stop push-button.
• MED65. Digital Multimeter.
• This module has a 3 ½ digit digital multimeter, with 4 mm double connector termination cables to
  facilitate interconnections.
• With this digital multimeter we can measure:
  Voltage.
  MED65
  Current.
  Resistance.
  Capacitors capacity.
  Temperature.
• N-REV01. Single-Phase Variable Resistor Module 0-700 Ohm.
  0 – 700 Ohm varIable resistor.
• Maximum power: 500 W.
  Potentiometer.
  N-REV01
• Terminals:
  Three terminals for taking the maximum resistance or a variable value.
• WT-KIT-400W. 400 W Wind Turbine Kit with Regulator and Measurement Instrumentation.
• WT-24V/400W. Permanent Magnets Wind Turbine 24 V, 400 W.
  Wind turbine.
• Power: 400 W.
• Voltage: 24 VDC.
• WT-24V/400W
• N-REG-24V/400W. Wind Turbine Regulator Module 24 V, 400 W.
• 16 A fuses.
  Wind turbine controller.
  Three-phase input terminals.
• ON/OFF switch. N-REG-24V/400W
• Output voltage: 24 – 36 VDC.
• Battery voltage: 24 VDC.
  DC output terminals.
  3

Specificacions

• N-TPAD-3PH/400V. 400 V Three-Phase AC/DC Converter Module.
• 16 A fuses.
  Three-phase input terminals.
  ON/OFF switch.
• Auxiliary ON/OFF switch. N-TPAD-3PH/400V
  DC output terminals.
• Input voltage range: 0 – 400 VAC.
• Output voltage range: 0 – 400 VDC.
• N-MED16. DC Voltmeter Module (0-50 V).
  Analogue voltmeter.
  Connection terminals.
• Voltage range: 0 – 50 V.
  N-MED16
• N-MED81. DC Ammeter Module (0-30 A).
  Analogue ammeter.
  Connection terminals.
• Intensity range: 0 – 30 A.
  N-MED81
• BAT2. AGM Battery, 25 Ah, 12 V (2 units).
• Nominal voltage: 12 VDC.
  BAT2
• N-SERV400W. 400 W Servomotor Controller Module.
  Servomotor SERV01.
  Error LED indicator.
• 5 A fuse.
  USB connector.
  Encoder connector.
  N-SERV400W
  Power connector.
  Speed control connector.
• Switch for control modes: Local or SCADA.
  ON/OFF switch.
  Potentiometer for manual speed control.
• Module supply voltage: 230 VAC.
• Control speed: 0 – 3000 rpm.
• Specific frequency: 250 Hz.
• Operating intensity: 1.5 A.
• Operating voltage: 101 VAC.
  4

Specificacions
