Stepper Motor Application

The Applications of Stepper Motors, for the study of the main operations performed in the industrial field with this type of electrical machines.

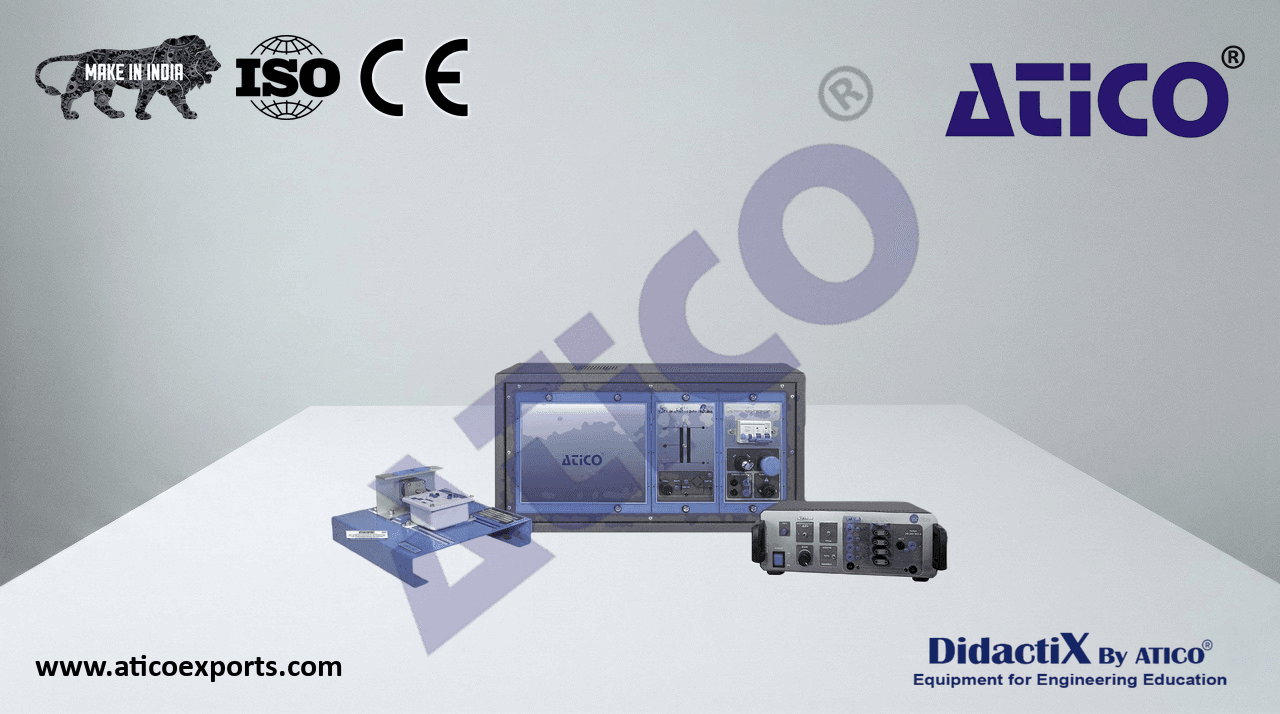

ATENG 11168 — Stepper Motor Application

• The “ATENG 11168” application includes the following elements:
• N-ALI02. Domestic Main Power Supply.
• Supply voltage (single-phase): 230 VAC, 1PH + N.
  ON/OFF removable key.
• Output voltage connections:
• Two single-phase: 230 VAC.
  Single-phase supply hose connecting plug. N-ALI02
• Differential magnetothermal, 2 poles, 25 A, 30 mA AC 6 KA.
  Emergency stop push button.
• N-ALI03. AC Auxiliary Power Supply (24 Vac) Module.
• Supply voltage (single-phase): 230 VAC, 1PH + N.
• Output voltage:
• Single-phase 24 VAC / 12 VAC.
  N-ALI03
• 24 VDC.
• 0 – 24 VDC through potentiometer.
• EMT19. Stepper Motor.
• Nominal power: 5 W.
• Nominal voltage: 5 VDC.
  EMT19
• Nominal current: 1 A.
• N-VVPP. Stepper Motor Controller (manual control and automatic control).
• Supply voltage: 230 VAC.
• Number of inputs: 8 (4 push-buttons + 4 switches).
• Number of outputs: 4. N-VVPP
• Output type: relay.
• Output capacity: 2 A.
• Single-phase: 220 V; 6.3 VA.
• All necessary cables to realize the practical exercises are included.
  Cables and accessories, for normal operation.
