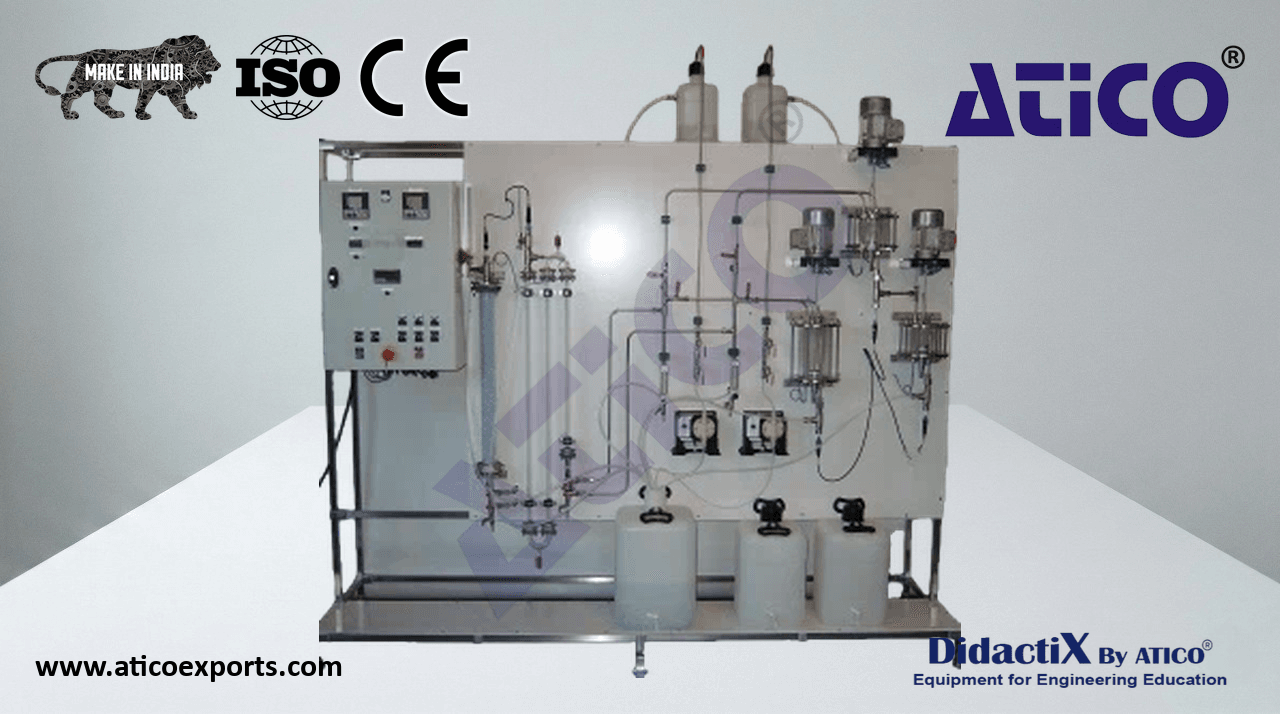

Stirred Reactor – Plug Flow Unit

Chemical reaction is a fundamental operation in the chemical industry, enabling the production from simple molecules (reactants) of increasingly complex compounds for a growing number of industries (chemical, pharmaceutical, etc. ). Learning Objectives: Residence time distribution (RTD) studies. Learn about Stirred Reactor – Plug Flow Unit India for optimal educational outcomes.. Reaction kinetics. Reversible and irreversible reactions. Learn about Stirred Reactor – Plug Flow Unit price for optimal educational outcomes.. Transfer functions. Conversion rate. Learn about Stirred Reactor – Plug Flow Unit for educational labs for optimal educational outcomes..

Knowledge of fluid flow laws through reactors (hydrodynamics) is one of the fundamental concepts enabling correct reactor sizing. The reactors are of the continuous type, theoretically either perfectly mixed or plug flow.

Plastic reactant storage tanks; 20-litre useful volume each.
Two PTFE metering feed pumps; flow rate 1–10 L/h.
Tracer feed with pulse or step injection via syringe system, plus a product introduction system for pulse injection with a tank and flow meter.
Two continuous stirred tank reactors (CSTRs) in cascade: borosilicate glass vessels with drain valves; 0.5-litre useful volume each.
Three variable-speed 316L stainless steel agitation assemblies with propeller turbines.
One borosilicate glass axial-dispersion tubular (plug flow) reactor.
3 conductivity probes.
316L stainless steel interconnecting pipework.
Welded 304L stainless steel frame.
IP55 control and instrumentation cabinet with emergency stop, start/stop buttons, conductivity transmitters, speed potentiometers, and 9.7″ touchscreen displaying conductivities and speeds on synoptic with curve display. Data acquisition in .txt format via USB.
