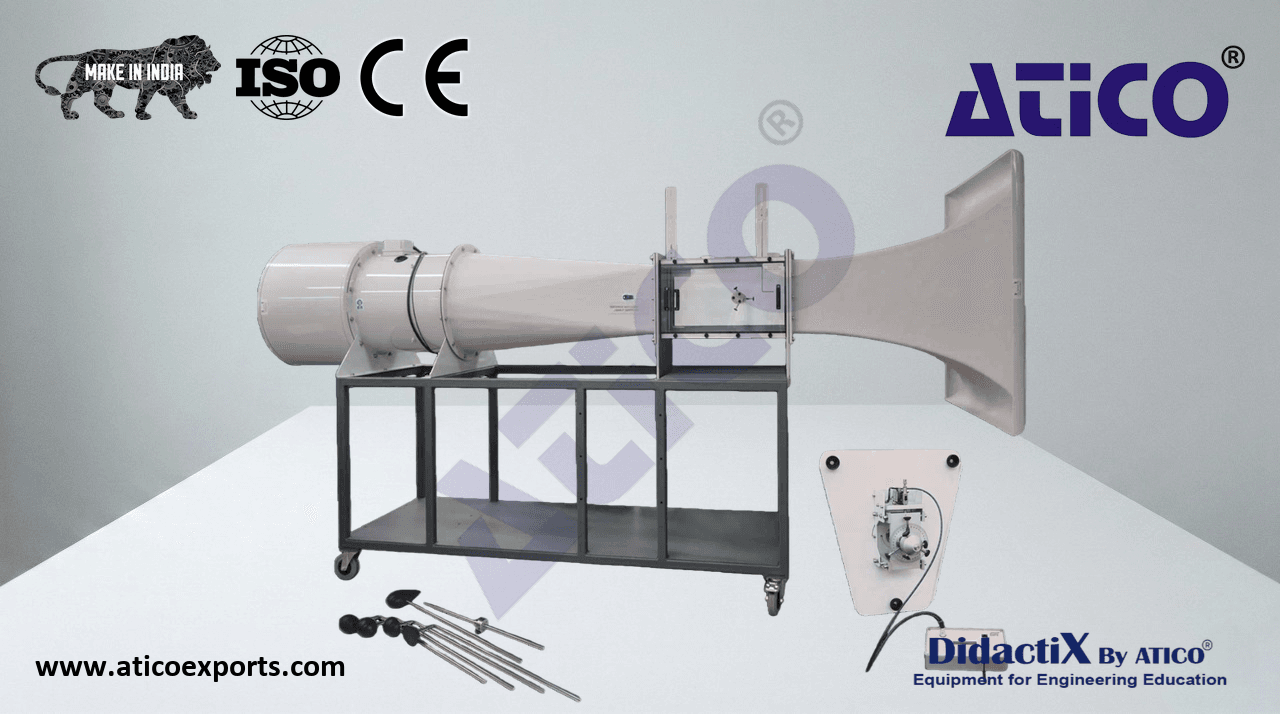

SUBSONIC WIND TUNNEL STARTER SET

A starter set consisting of the Subsonic Wind Tunnel 305 mm, Basic Lift and Drag Balance, and a set of Three-Dimensional Drag Models.

Air enters the tunnel through an aerodynamically designed effuser (cone) that accelerates the air linearly. It then enters the working section and passes through a grill before moving through a diffuser and then to a variable-speed axial fan. The grill protects the fan from damage by loose objects. Learn about SUBSONIC WIND TUNNEL STARTER SET specifications for optimal educational outcomes.. The air leaves the fan, passes through a silencer unit and then back out to atmosphere. A separate control and instrumentation unit controls the speed of the axial fan (and the air velocity in the working section). Learn about SUBSONIC WIND TUNNEL STARTER SET for educational labs for optimal educational outcomes.. The control and instrumentation unit also includes manometers and electrical outlets to supply electrical power to other optional instruments. A metal frame supports the wind tunnel. Learn about SUBSONIC WIND TUNNEL STARTER SET manufacturers for optimal educational outcomes.. The frame includes lockable castors for convenient mobility. The working section of the tunnel is a square section with a clear roof, sides and floor. Learn about SUBSONIC WIND TUNNEL STARTER SET aerodynamics India for optimal educational outcomes.. The sides are removable. The floor and each side panel has a special position to support the optional wind tunnel models. Learn about SUBSONIC WIND TUNNEL STARTER SET equipment for optimal educational outcomes.. Supplied with the wind tunnel are a protractor and a model holder to support and accurately adjust the angle of any models fitted. Two traversing probes fit on the working section. Learn about SUBSONIC WIND TUNNEL STARTER SET price for optimal educational outcomes.. One is a Pitot-static tube and the other a standard Pitot tube. They fit upstream and downstream of any models and connect to the manometers of the instrumentation unit (or other optional instruments) to show pressure. Learn about SUBSONIC WIND TUNNEL STARTER SET suppliers for optimal educational outcomes..
