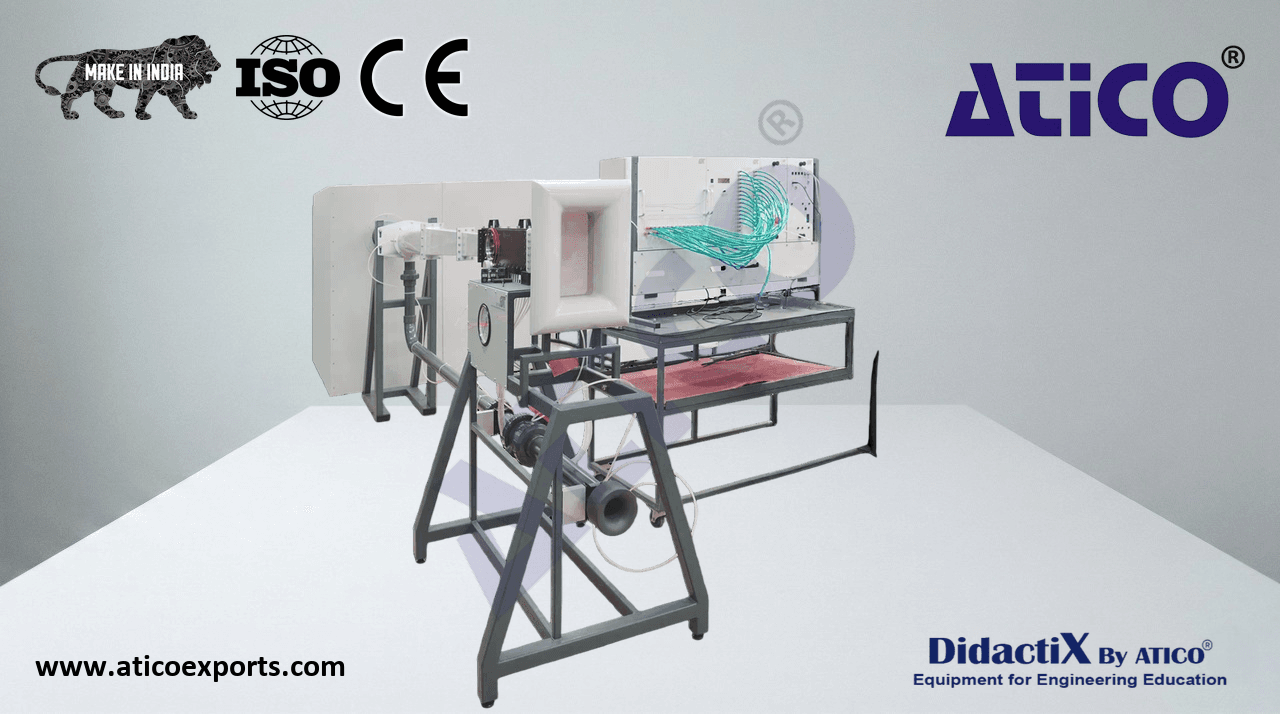

SUPERSONIC WIND TUNNEL (CONTINUOUS)

A suction-type, continuous-operation supersonic (up to Mach 1. 8) wind tunnel for investigations into subsonic and supersonic air flow around two-dimensional models. Also for analysis of the profile of the tunnel working section. Learn about SUPERSONIC WIND TUNNEL (CONTINUOUS) exporters for optimal educational outcomes..

A suction-type continuous-operation supersonic wind tunnel for investigations into subsonic and supersonic air flow. It also allows students to study air flow in two dimensions around aerodynamic models. An instrument frame (supplied) holds a remote-control unit that controls a high-capacity vacuum pump (supplied). Learn about SUPERSONIC WIND TUNNEL (CONTINUOUS) specifications for optimal educational outcomes.. The pump creates low pressure downstream of the working section to draw air into the wind tunnel. A bypass duct, with a hand-operated valve, allows the operator to reduce the air flow through the working section, without disturbing the quality of the main air flow. Learn about SUPERSONIC WIND TUNNEL (CONTINUOUS) suppliers for optimal educational outcomes.. This is useful for start-up and shutdown and for subsonic tests. The working section of the wind tunnel is a convergent/divergent nozzle with a removable top part ('liner'). Learn about SUPERSONIC WIND TUNNEL (CONTINUOUS) aerodynamics India for optimal educational outcomes.. The shape of the liner controls the maximum air velocity at the divergent part of the working section. Included are three different shaped liners. Learn about SUPERSONIC WIND TUNNEL (CONTINUOUS) equipment for optimal educational outcomes.. A selection of models are included with the equipment (one has pressure tappings) for experiments in two-dimensional flow. These fit in the 'portal' of the working section, flush to both windows. Learn about SUPERSONIC WIND TUNNEL (CONTINUOUS) manufacturers for optimal educational outcomes.. A geared mechanism allows students to adjust the incidence angle of the models. An encoder works with the optional data acquisition system to measure the model angle. Learn about SUPERSONIC WIND TUNNEL (CONTINUOUS) exporters for optimal educational outcomes.. Pressure tappings along the working section connect to a 'mimic' panel and multi-pressure display unit in the instrument frame. The display unit shows the pressures at the tappings. Learn about SUPERSONIC WIND TUNNEL (CONTINUOUS) for educational labs for optimal educational outcomes.. The display includes calibrated pressure sensors to measure pressures relative to atmosphere. It also shows the pressures on one of the models. Learn about SUPERSONIC WIND TUNNEL (CONTINUOUS) price for optimal educational outcomes.. An analogue pressure gauge measures and displays the suction of the pump (tunnel reference pressure). The equipment works with an optional data acquisition system. Using a data acquisition system enables accurate real-time data capture, monitoring, display, calculation and charting of all relevant parameters on a suitable computer (computer not included). The wind tunnel includes transparent windows in the working section. These are high-quality optical polycarbonate suitable for use with the optional Schlieren Apparatus (available separately) enabling display and recording of images of high-speed flow.
