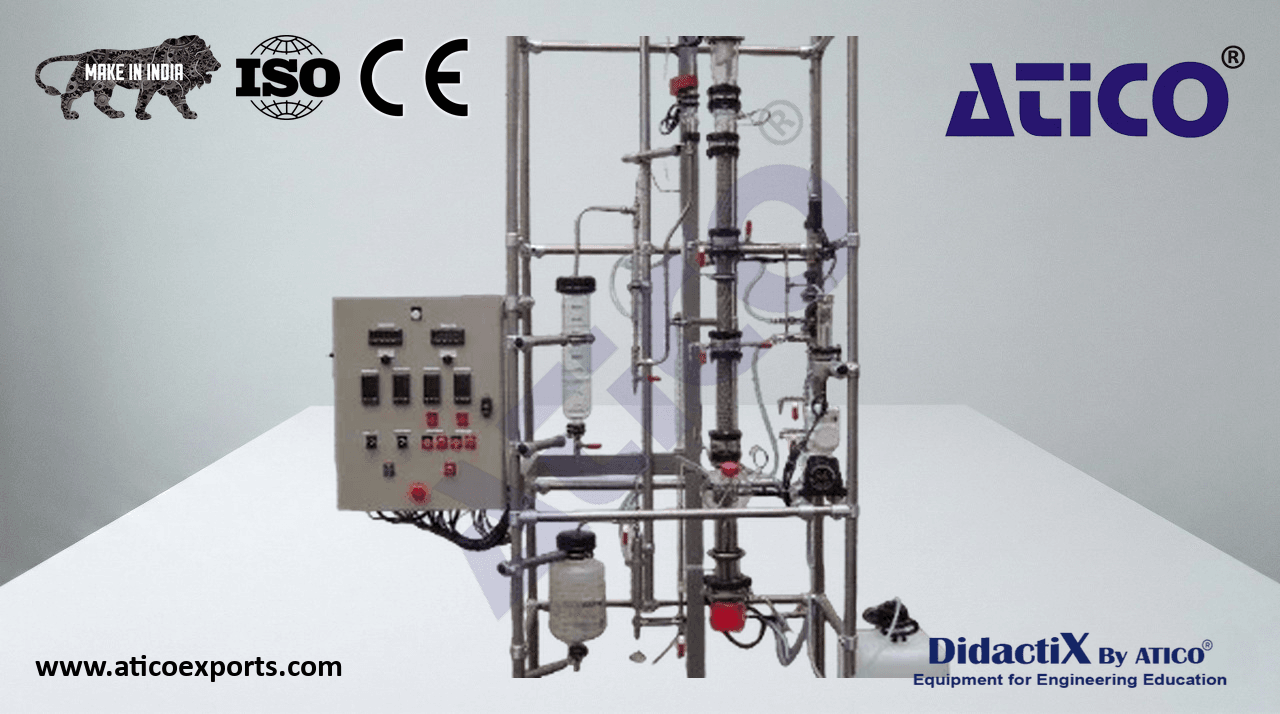

Supervised Continuous Distillation Unit

Distillation enables the separation of a mixture of compounds with different boiling points. Boiling the mixture produces vapours of different composition to the liquid. Repeated condensation and re-evaporation progressively enriches the vapour phase in the most volatile product. Learn about Supervised Continuous Distillation Unit India for optimal educational outcomes.. Learning Objectives: Study of column hydrodynamics. Influence of operating conditions on the separation of a binary solution. Learn about Supervised Continuous Distillation Unit price for optimal educational outcomes.. Remote process operation via industrial supervision. Heat balances. Learn about Supervised Continuous Distillation Unit suppliers for optimal educational outcomes.. Mass balance. Determination of the number of theoretical plates (McCabe & Thiele, Ponchon & Savarit). Learn about Supervised Continuous Distillation Unit specifications for optimal educational outcomes.. Determination of the number of transfer units.

Polyethylene feed solution storage tank. 316L stainless steel – PTFE metering feed pump with remote control.

Polyethylene feed solution storage tank.
316L stainless steel – PTFE metering feed pump with remote control.
Feed preheater with two valves for feeding at 33% or 66% of the column height, with minimum level and maximum temperature safety.
Continuous borosilicate glass reboiler with electric heating, minimum level safety, and maximum temperature safety.
Cooler for differential pressure measurement.
Borosilicate glass column in three packed sections.
Three 316L stainless steel redistribution plates, each fitted with a sampling valve and temperature port.
Borosilicate glass column head with temperature port, fitted with a timer valve to control the reflux ratio.
Vertical 316L stainless steel condenser.
Two 316L stainless steel distillate and residue coolers.
Borosilicate glass distillate receiver.
Borosilicate glass residue receiver.
Two polyethylene distillate and residue collection tanks.
316L stainless steel interconnecting pipework.
Support frame in 304L stainless steel tubing with aluminium fittings.
Condenser cooling water supply with rotameter, flow control valve, and water circulation monitor to stop heating on coolant failure.
Column pressure drop measurement.
Industrial supervision system with real-time process visualisation, data acquisition, and remote instrumentation control.
IP55 control and instrumentation cabinet with emergency stop, start/stop buttons, and the following communicating interfaces: preheater temperature controller; column head temperature controller; reboiler heating controller; feed pump speed controller; digital converters for four Pt100 Ω probes (column temperature profile); two digital temperature indicators for 12 Pt100 Ω probes, one communicating.
