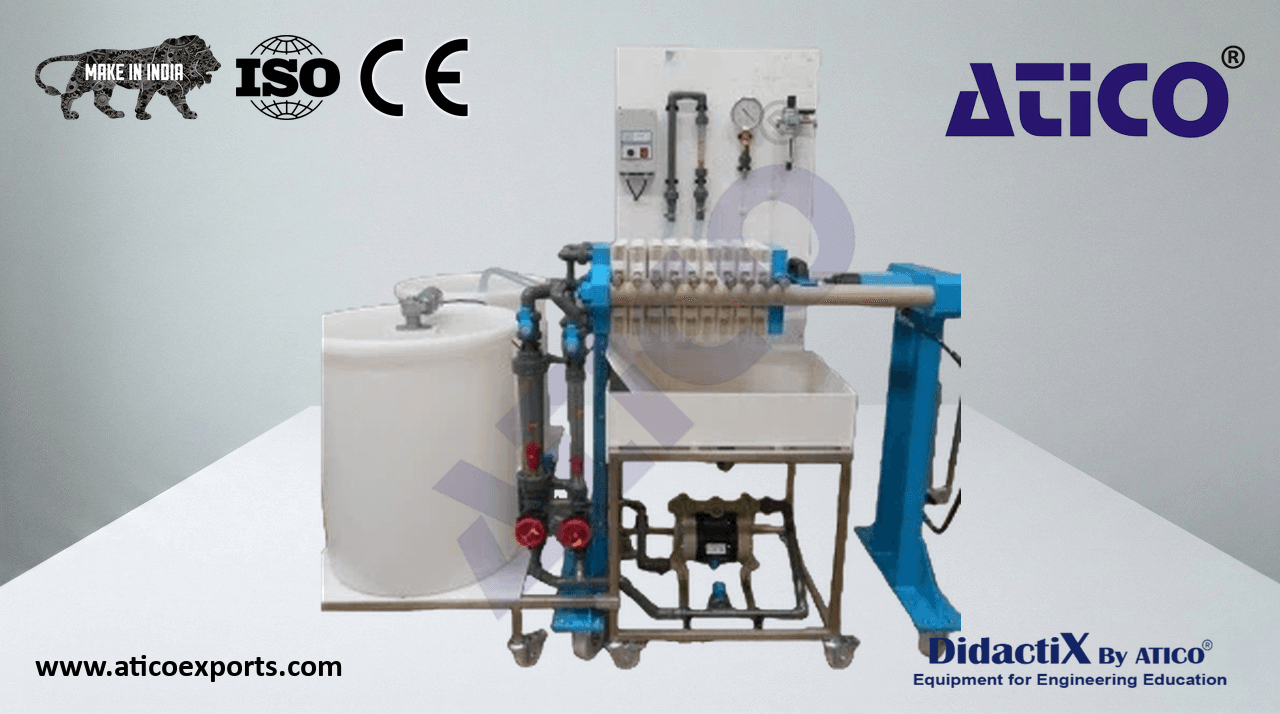

Support Filtration – Filter Press

This pilot allows the study of support filtration. The process consists of circulating a fluid containing solid particles through a support (fabric, felt, membrane, etc. ) on which the particles deposit in the form of a cake of increasing thickness. Learn about Support Filtration – Filter Press exporters for optimal educational outcomes.. Educational Objectives: Study of support and filter resistance, verification of Darcy's law, determination of the P=f(Q) curve and identification of various flow regimes, determination of the clogging point, estimation of cake porosity.

The filtrate, more or less pure depending on the support texture and particle size, passes through the support — this is cake filtration. The operation is performed here in batch mode.

Filter press: frame surface 250 x 250 mm, cast iron frame, filter on casters, 7 plates for 15mm cakes
Polypropylene membrane pneumatic pump
2 tanks with drain and withdrawal valves
1 variable-speed stirrer with 2 propellers
2 pressure gauges
Pressure reducer with filter
3 float-type flow meters (feed, permeate, filtrate at filter outlet)
