Table-Top Flow Regulation Bench

This bench is designed for the study and experimentation of a flow regulation loop. It includes the regulation loop, measurement instrumentation, indication, recording, and control. Topics covered include: flow measurement, sensor calibration, initiation to control and regulation, automatic regulation methods, P/PI/PID regulators, regulation strategies, process response, temporal analysis, precision and stability, control valves, positioner, electrical transmitters, current-to-pressure converter. Learn about Table-Top Flow Regulation Bench exporters for optimal educational outcomes..

Operative Part:

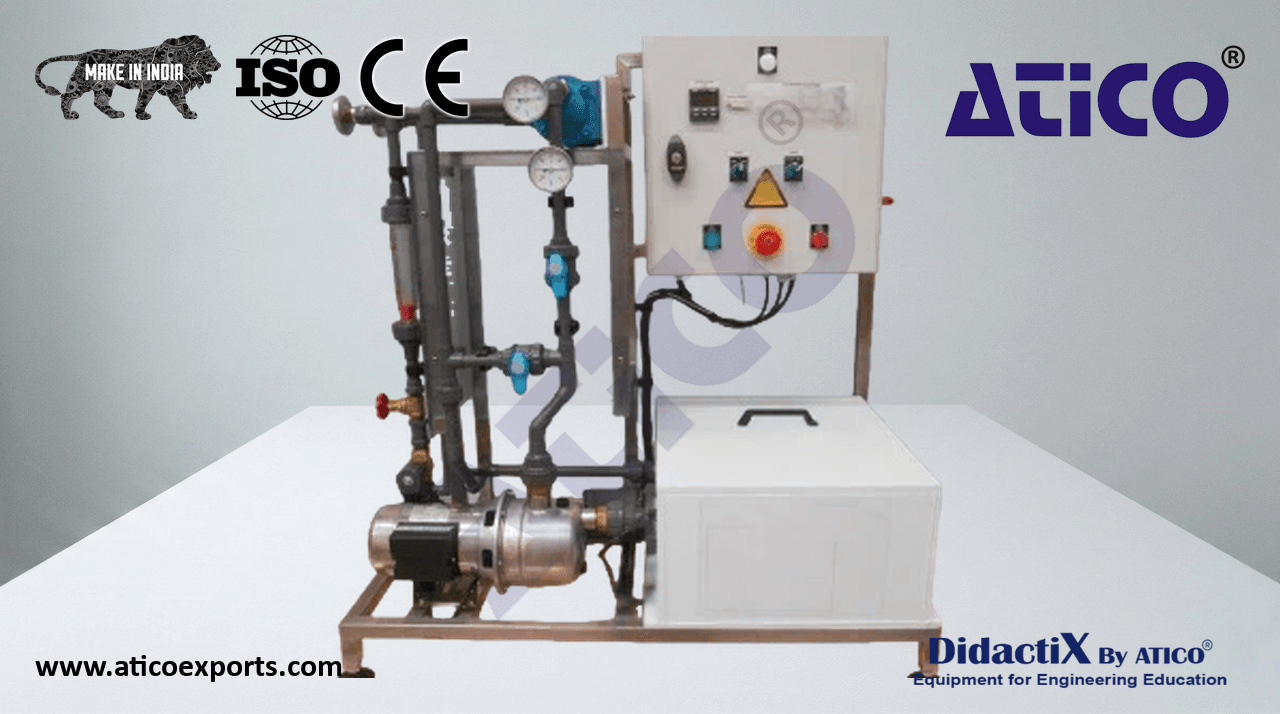

The bench consists of a chassis integrating:

• A 35-liter main tank (30-liter usable volume)
• A centrifugal pump
• A pneumatic control valve
• A P/I converter
• An electromagnetic flow meter
• A set of manually controlled valves
• A flow perturbation circuit
• Sound level below 70 dB(A)

Control Part:

An electrical cabinet containing:

• Power supply and protection equipment
• Emergency stop push button
• Control elements
• RS 232C link for supervision
• Digital controller

The front panel provides clear operator information. Supervision:

A supervision set is included, consisting of supervision software, connection cable, and software protection key.
