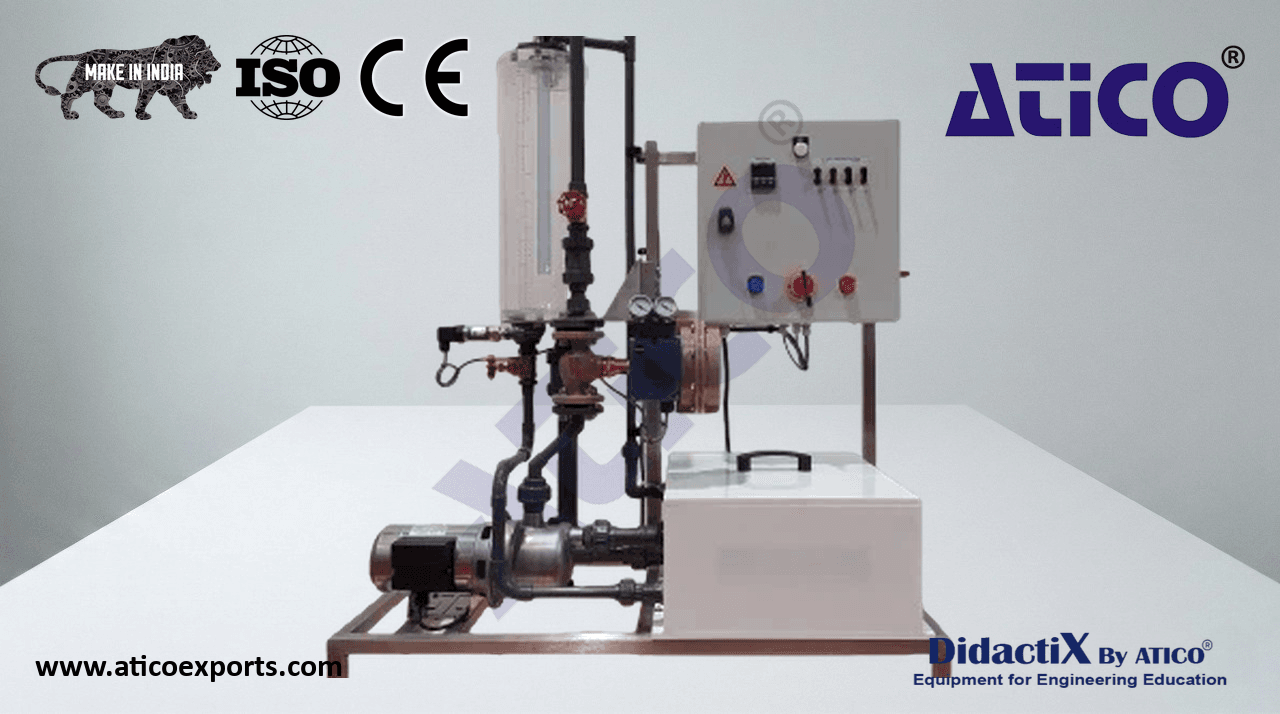

Table-Top Level Regulation Bench

This bench is designed for the study and experimentation of a level regulation loop. It includes the regulation loop, measurement instrumentation, indication, recording, and control. Perturbation circuits (step or other models) highlight the process response. Learn about Digital Table-Top Level Regulation Bench for optimal educational outcomes.. Topics covered include: level measurement, sensor calibration, initiation to control and regulation, automatic regulation methods, discontinuous action adjustment, P/PI/PID regulators, regulation strategies, process response, temporal analysis, precision and stability, control valves, positioner, electrical transmitters, current-to-pressure converter, digital systems.

Control Part:

An electrical cabinet containing:

• Power supply and protection equipment
• Control elements
• Shunts providing access to 4/20 mA sensor and valve measurements
• RS 232C link for supervision
• A digital regulator

The front panel provides clear operator information. Supervision:

A supervision set is included with the base bench, consisting of:

• Supervision software
• Connection cable
• Software protection key

Requires a PC running Windows 10 or 11.
