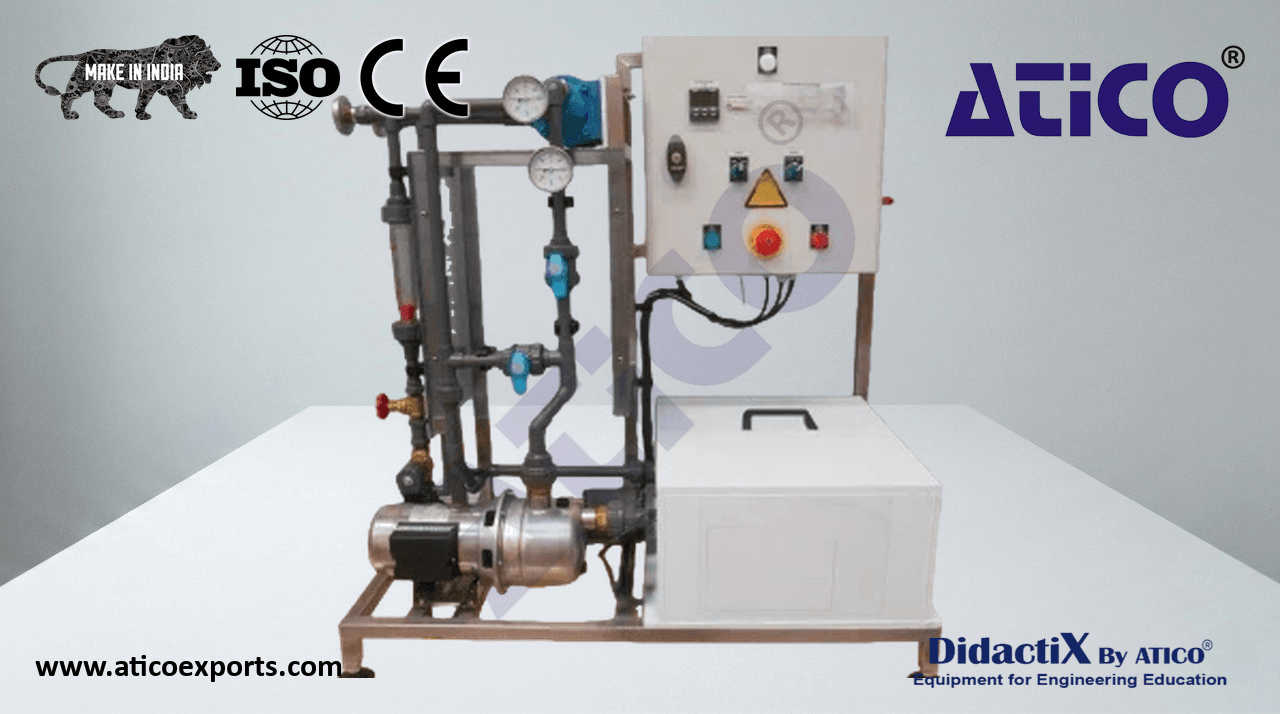

Table-Top Pressure Regulation Bench

This bench is designed for the study and experimentation of a pressure regulation loop. It includes the regulation loop, measurement instrumentation, indication, recording, and control. Topics covered include: pressure measurement, sensor calibration, initiation to control and regulation, automatic regulation methods, P/PI/PID regulators, regulation strategies, process response, temporal analysis, precision and stability, control valves, positioner, electrical transmitters, current-to-pressure converter, digital systems. Learn about Table-Top Pressure Regulation Bench exporters for optimal educational outcomes.. Particularly suited for: Industrial Maintenance, Water Trades, Chemical Engineering.

Operative Part:

The bench consists of a chassis integrating:

• A 30-liter main tank
• A centrifugal pump
• A pneumatic control valve
• A P/I converter
• A pressure sensor: relative pressure transmitter 0–6 bar, 4/20 mA output
• An accumulator
• Three pressure gauges
• A set of manually controlled valves
• A pressure perturbation circuit

Required Services:

• Electrical supply: 220V single-phase 50 Hz – 8A + earth
• Pneumatic supply: 5 bar
• Sound level: 70 dB(A)
• Sanitary water
• PC for software use

Control Part:

An electrical cabinet containing:

• Power supply and protection equipment
• Emergency stop push button
• Control elements
• RS 232C link for supervision
• Digital controller

The front panel provides clear operator information. Supervision:

A supervision set is included, consisting of supervision software, connection cable, and software protection key.
