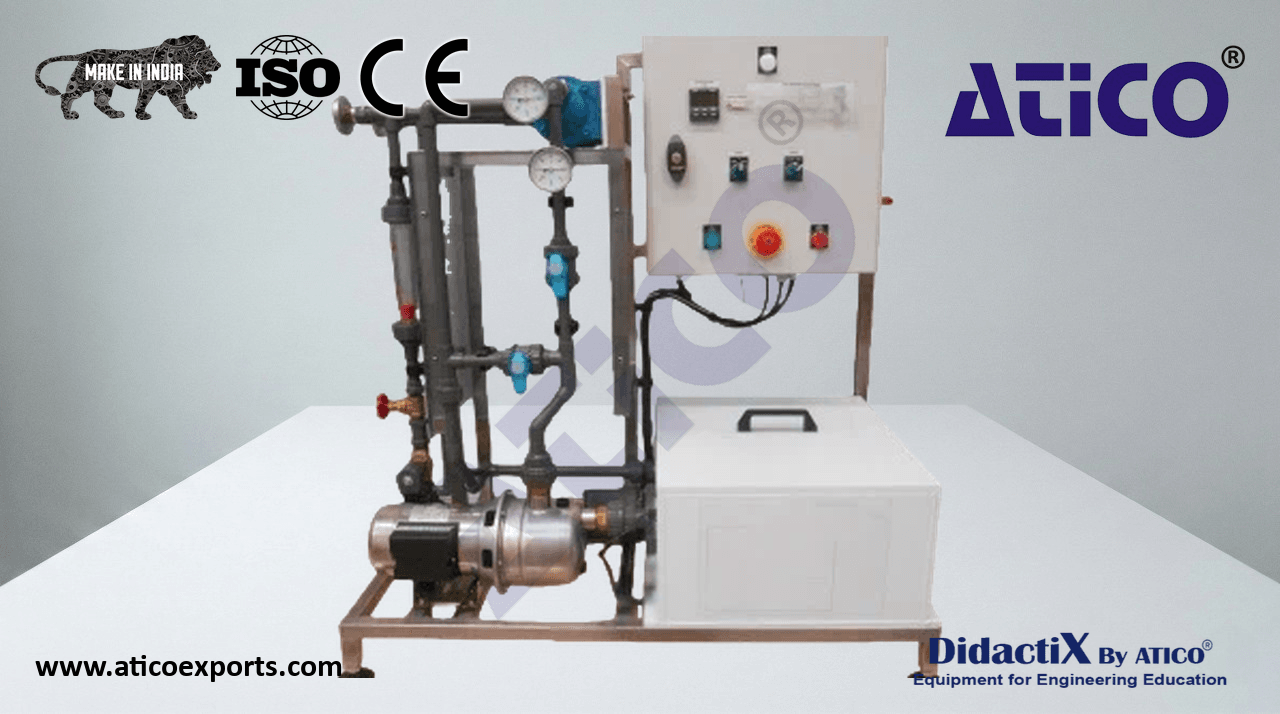

Table-Top Temperature Regulation Bench

This bench is designed for the study and experimentation of a temperature regulation loop. It includes the regulation loop, measurement instrumentation, indication, recording, and control. Topics covered include: temperature measurement, sensor calibration, initiation to control and regulation, automatic regulation methods, P/PI/PID regulators, regulation strategies, process response, temporal analysis, precision and stability, control valves, positioner, electrical transmitters, current-to-pressure converter, digital systems. Learn about Table-Top Temperature Regulation Bench India for optimal educational outcomes..

Operative Part:

The bench consists of a chassis integrating:

• A tank containing: an immersion heater (1. 5 kW), a Pt 100 temperature probe, a low-level safety device
• A centrifugal pump
• A water/water heat exchanger
• Four thermometers
• A flow meter
• A solenoid valve
• A set of manually controlled valves
• A temperature perturbation circuit
• Tank volume: 30 liters

Control and Command Part:

An electrical cabinet containing:

• Power supply and protection equipment
• Heating modulator
• Control elements
• Shunts providing access to 4/20 mA sensor measurements
• A digital regulator, configurable via pre-programmed function blocks
• Hot/cold regulation

The front panel provides clear operator information.
