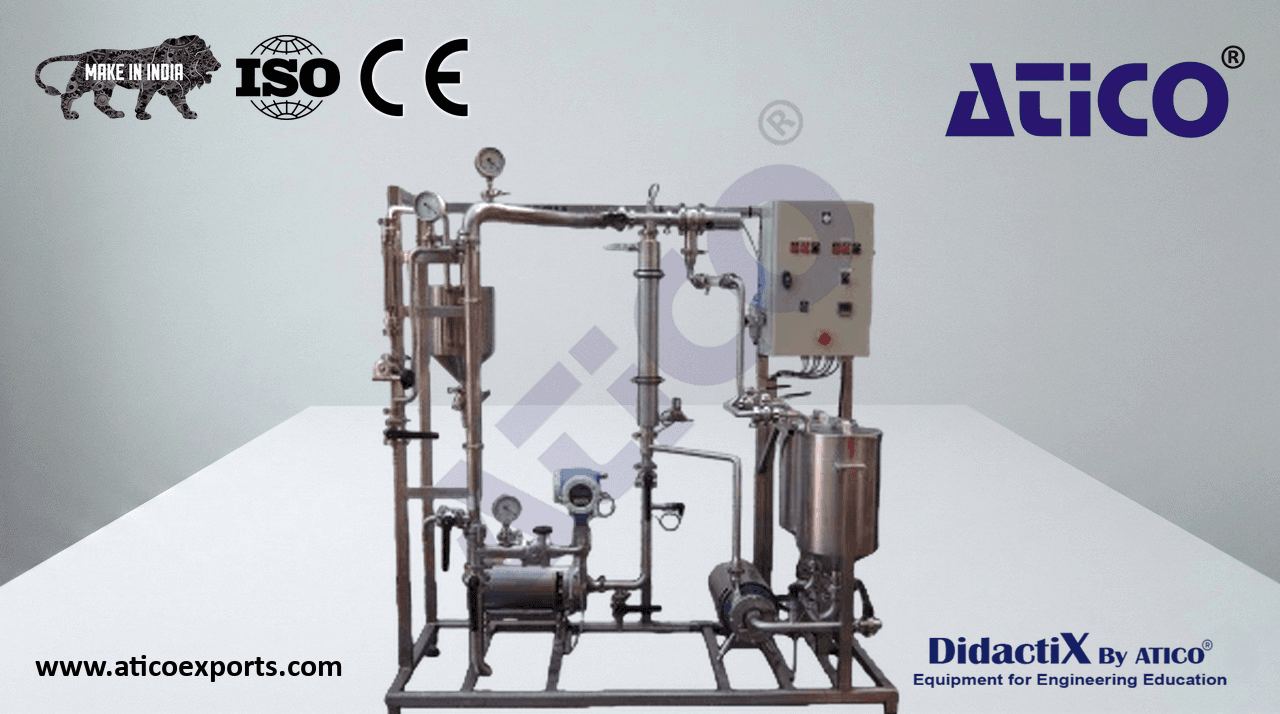

Tangential Microfiltration Pilot Unit

The unit is of single-stage design and operates in closed loop. The module features a 1. 4 μm ceramic microfiltration membrane with its stainless steel housing. Learn about Tangential Microfiltration Pilot Unit manufacturers for optimal educational outcomes..

Technical Description: Batch operation. The unit is constructed in 316L stainless steel and mounted on a stainless steel chassis on jacks.

A cylindro-conical stainless steel launch and cleaning tank
A sanitary-grade 304L stainless steel centrifugal pump, 5 m³/h, 2.5 bar (circulation loop ensuring membrane velocity). Flow adjusted via a valve on the pump discharge
A centrifugal pump
2 vibrating-blade liquid presence detectors
A pneumatic Y-type back-pressure valve for transmembrane pressure control
3 butterfly valves with adjustment handwheels, 8 butterfly valves in stainless steel
1 air pressure reducer/regulator
3 separator-mounted pressure gauges
An inline cooler (coaxial double-tube) with Pt100 probe on the recirculation loop to prevent temperature rise during treatment, with solenoid valve for network cold water inlet
A PT100 Ω temperature probe with regulator in cabinet
A sight glass (mireur)
An electromagnetic float flowmeter for the circulation loop
A float flowmeter for feed, a float flowmeter for permeate
A ceramic tube microfiltration module, 1.4 μm cutoff, with housing. Filtration surface: 0.24 m²
Control and command cabinet: pump control and protection; temperature display/regulator; liquid presence fault indicators
