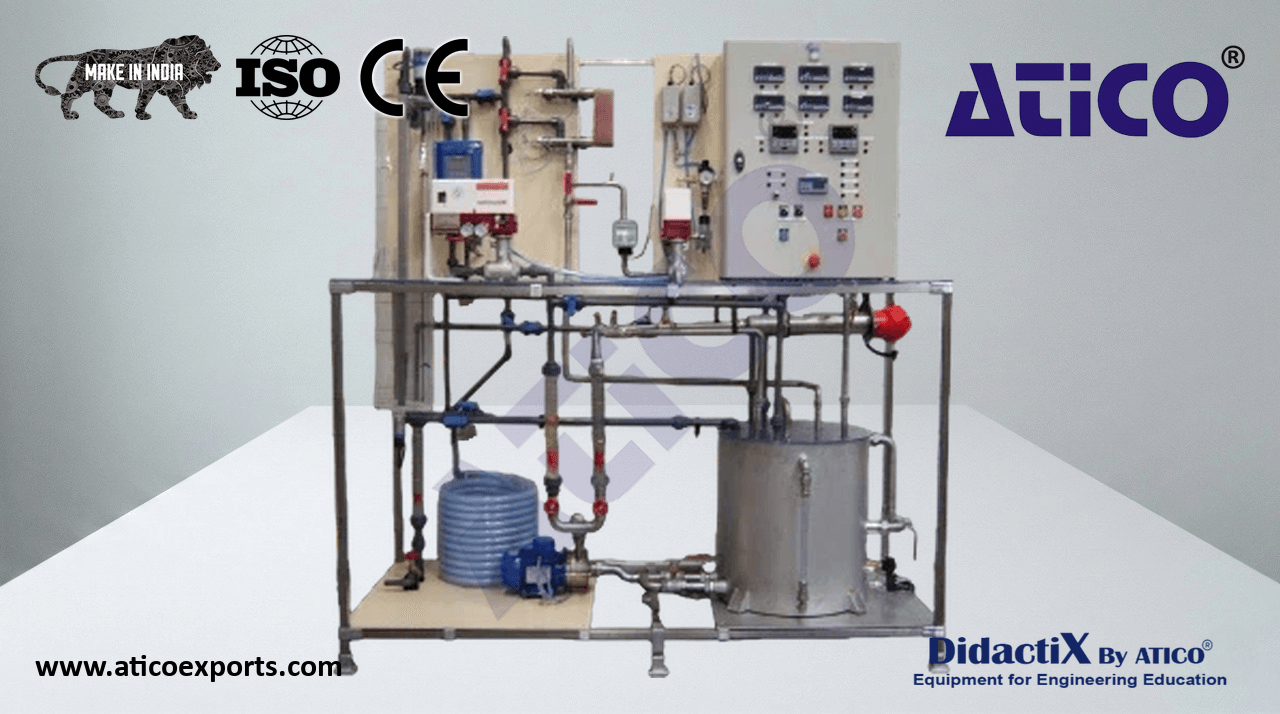

Temperature – Flow – Level Regulation Bench

This bench allows simple temperature, flow, and level regulation, cascade regulation (temperature–flow and level–flow), and study of regulation on hot/cold fluid around a plate heat exchanger. Educational Objectives: Identification of sensors and actuators, regulation loop wiring (simple and cascade), 1st order simple regulation, cascade regulation.

**Technical

Specifications**

Composition:

• Welded stainless steel chassis on casters with brakes
• 100-liter stainless steel supply tank with drain valve
• Stainless steel centrifugal supply pump (0. 6 kW, 3000 rpm, 30–80 L/min)
• Stainless steel coil inside the supply tank
• In-line electric heater (immersion heater, 6 kW)
• Brazed-plate heat exchanger (water/water, 0. 12 m² exchange surface)
• Altuglas column with millimeter scale (1 m length)
• Two PVC float-type flow meters (200–2000 L/h)
• One polysulfone float-type flow meter (200–2000 L/h)
• One paddle flow meter (stainless body)
• One electromagnetic flow meter (stainless)
• Two needle valve proportional control valves with pneumatic servomotor
• Nine Pt 100 temperature probes
• One hydrostatic pressure sensor for water level measurement
• One capacitive level sensor
• Hot circuit in stainless steel, cold circuit in PVC
• IP55 watertight electrical cabinet including: lockable isolator, power indicator, keyed emergency stop, master regulator (with RS485 connection, input switchable between level, temperature, and flow measurements), slave regulator (flow input with RS485 connection), hot fluid preparation regulator, frequency inverter, static relay power unit, secured sockets for 4–20 mA I/O wiring

**Equipment supplied with technical documentation and suggested lab exercises for the various regulation loops. **

Optional software for data acquisition and regulator parameterization: RS485/Ethernet gateway, Windows software for reading PID parameters, trend curve plotting, remote regulator configuration, and value archiving.
