Temperature Regulation Bench

Designed to be part of the electrotechnical systems testing zone, this system comprises an operative part and a containment cabinet integrated into the chassis. The operative part allows heating and cooling a water tank. The containment cabinet receives the control panel wired by the student. Learn about Temperature Regulation Bench for educational labs for optimal educational outcomes.. This system is self-contained in terms of water; only a 230V mains supply is required. It allows students to study and then wire a temperature regulation control panel. Learn about Temperature Regulation Bench India for optimal educational outcomes.. Depending on the panels, it implements instrumentation (transmitter, thermostat, regulator, etc. ), power modulation (static relay, wave train, dimmer, etc. Learn about Temperature Regulation Bench equipment for optimal educational outcomes.. ), and measurement of electrical and thermal quantities.

Operative Part

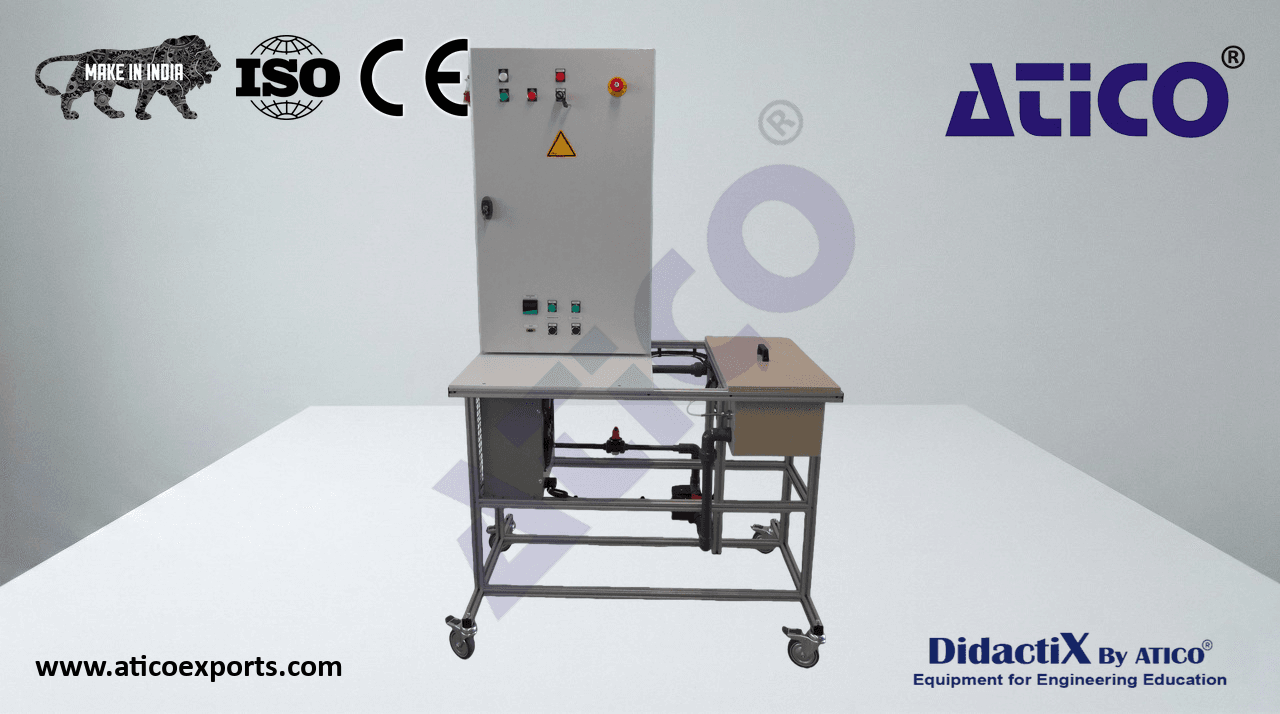

The bench consists of a mobile chassis integrating:

• A 25-liter tank
• A single-phase immersion heater of 2. 5 kW
• A temperature sensor (Pt 100 probe)
• A 'low level' sensor by water resistivity detection
• A bimetallic safety thermostat
• A stainless steel centrifugal circulation pump
• An air cooler

The cooling circuit consists of a circulation pump and an air cooler to increase heat exchange between water and ambient air.
