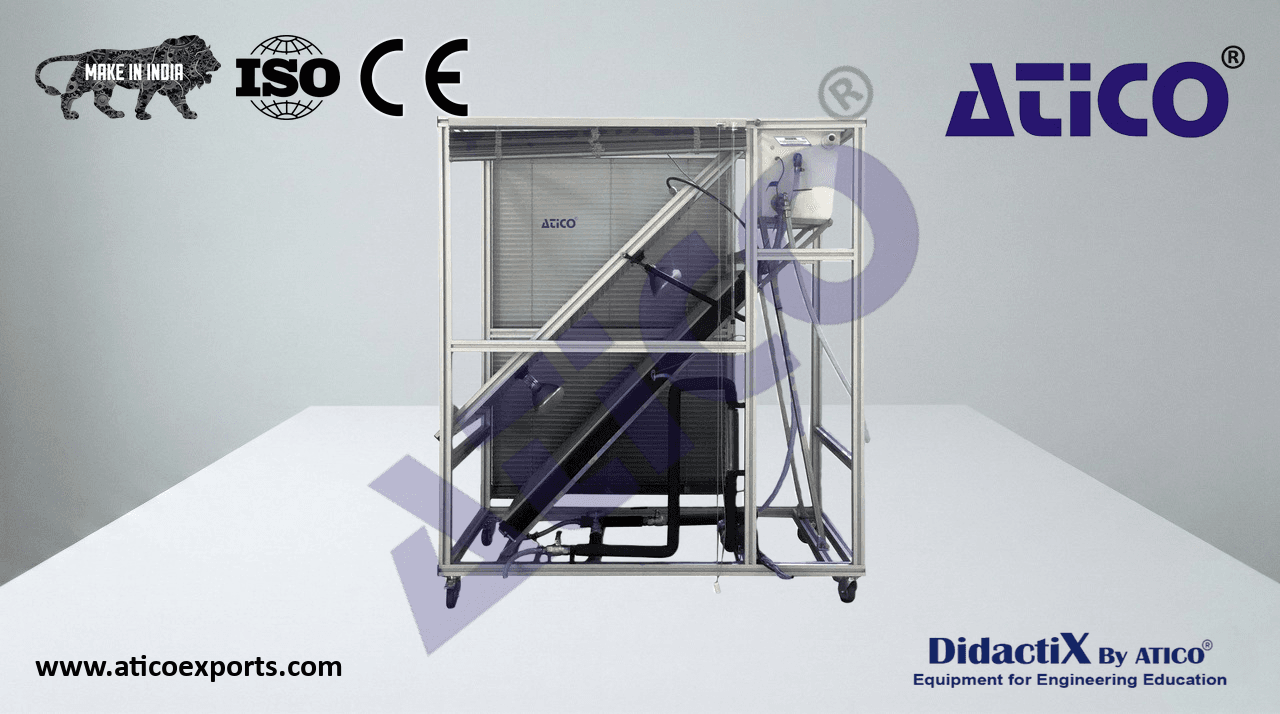

ATENG 11504 — Thermal Solar Energy Basic Unit
Anodized aluminum frame and panels made of painted steel.
The unit includes wheels to facilitate its mobility.
Main metallic elements made of stainless steel.
Diagram in the front panel with distribution of the elements similar to the real one.
- Solar panel (thermal solar collector):
Metallic structure.
Solar panel, is made of polycarbonate, with polypropylene pipes.
Pipes (already set) to connect the panel and the tank.
Temperature sensors, “J“ type.
Tank of 30 l.
- Solar simulator:
Aluminum structure with adjustable height.
Two solar spectrum lamps of 300 W each one.
- Pumping system:
- Pump, range: 0 – 2 l/min.
ATENG 11504 detail
Flowmeter.
Five temperature sensors, “J“ type, at different points of the unit.
The unit includes two “Venetian” type blinds to reduce a direct visual contact with the lamps and to reduce the direct contact with the solar
panel when the unit is working.
- Electronic console:
Metallic box.
Connections for the temperature sensors.
Digital display for the temperature sensors.
Selector for the temperature sensors.
Pump switch.
Lamps switch.
Cables and accessories, for normal operation.
