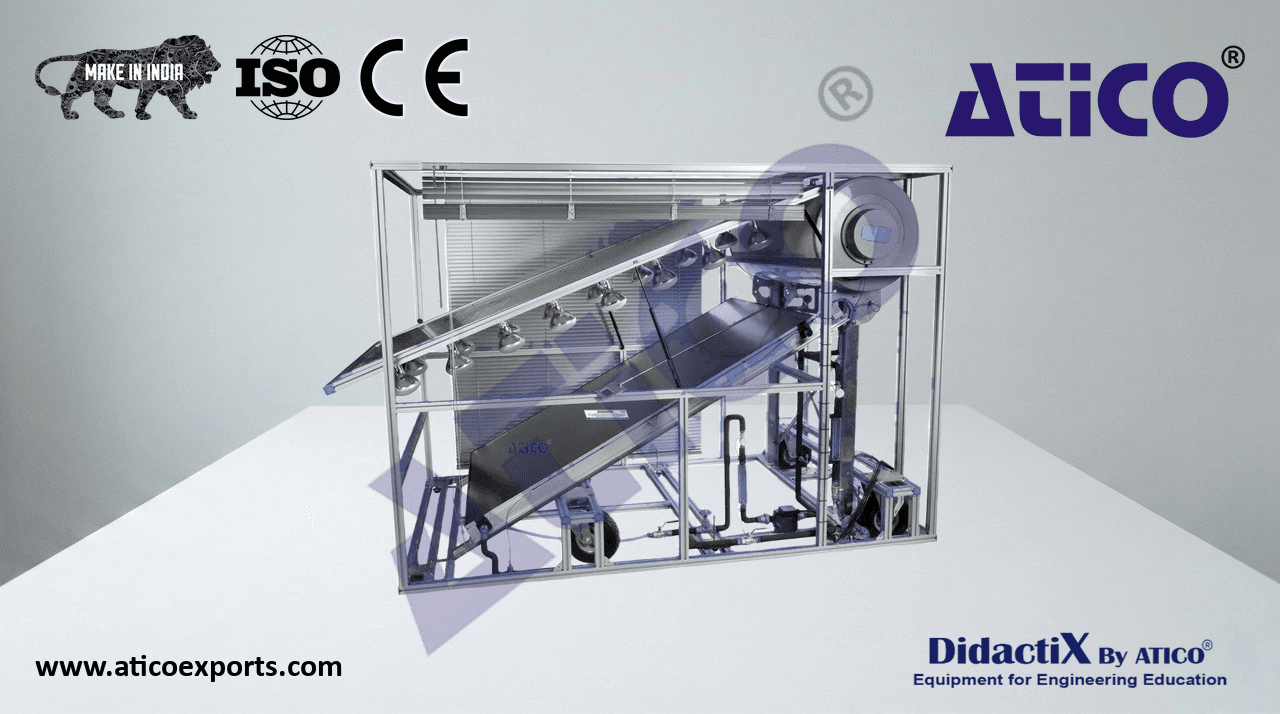

ATENG 11503 — Thermal Solar Energy Unit
Anodized aluminum frame and panels made of painted steel.
The unit includes wheels to facilitate its mobility.
Main metallic elements made of stainless steel.
Diagram in the front panel with distribution of the elements similar to the real one.Solar panel
- (thermal solar collector):
Copper pipes, wrapped with insulating material, to connect the panel and the accumulator tank.
- Area of the panel: 1.92 m².
- Material: tempered glass.
- Accumulator tank:
Vacuum vitrified boiler, high efficiency heating circuit and anti-corrosion protections.
- It has a supporting heating group with a heating element, power: 2400 W.
Contact thermostat to control the temperature.
- Volume: 154 l. ATENG 11503 detail
- Max. pressure: 8 bar.
- Max. temperature: 110 °C.
- Solar simulator:
Aluminum structure with adjustable height.
Sixteen solar spectrum lamps of 300 W. each one, distributed into independent circuits.
Electricity security group, made up by magnetothermics.
- Three different configurations can be simulated with the solar simulator: all the lamps are turned on, half of the lamps are turned on in
zig zag, or only one lamp is turned on.
- Pumping system:
- Pump, flow range: 0 – 2 l/min; max. pressure: 0.6 bar.
- Three flowmeters:
One of 0.2 – 2 l/min in the primary circuit (forced circulation with pump).
One of 4 – 50 cc/min in the primary circuit (free circulation, without pump).
One of 1.5 – 10 l/min in the secondary circuit.
Ten temperature sensors, “J “ type.
- Manometer, range: 0 – 4 bar.
Two safety valves for over-pressure protection.
The unit includes two “Venetian” type blinds to reduce a direct visual contact with the lamps and to reduce the direct contact with the solar
panel when the unit is working.
- Electronic console:
Metallic box.
Connections for the temperature sensors.
Digital display for the temperature sensors.
Selector for the temperature sensors.
Pump switch.
Heating element switch.
- Three switches for the different configurations of the solar simulator: one for all the lamps on, other for half of the lamps on and another
for only one lamp on.
Cables and accessories, for normal operation.
