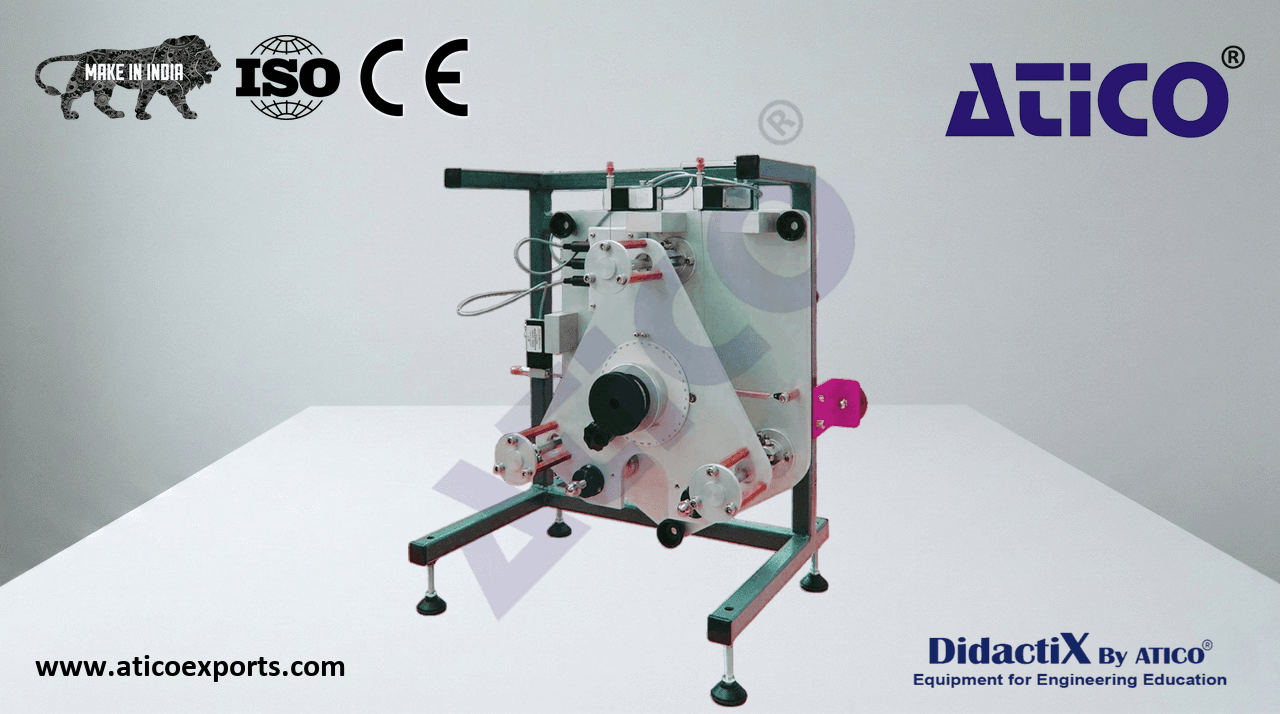

THREE COMPONENT BALANCE

Supports wind tunnel models in the Subsonic Wind Tunnel and measures their lift, drag and pitching moment.

The Three-Component Balance fits onto the working section of the Subsonic Wind Tunnel. It may also be used with other subsonic wind tunnels of similar design. The Three-Component Balance provides an easy-to-use support system for wind tunnel models. Learn about Digital THREE COMPONENT BALANCE for optimal educational outcomes.. It measures lift, drag and pitching moment exerted on the model. The balance attaches to the vertical wall of the wind tunnel working section. Learn about THREE COMPONENT BALANCE exporters for optimal educational outcomes.. It is designed for air flows from right to left when the balance is viewed from the front. The balance comprises a mounting plate secured to the wind tunnel working section. Learn about THREE COMPONENT BALANCE for educational labs for optimal educational outcomes.. A triangular force plate is held on the mounting plate by a mechanism that constrains it to move in a plane parallel to the mounting plate only, while leaving it free to rotate about a horizontal axis. This arrangement provides the necessary three degrees of freedom. Learn about THREE COMPONENT BALANCE suppliers for optimal educational outcomes.. Models for use with the balance are available separately. Other models used with the equipment will need a mounting stem. Learn about THREE COMPONENT BALANCE price for optimal educational outcomes.. The forces acting on the model are transmitted by cables to three strain gauged load cells. The output from each load cell is taken via an amplifier to a microprocessor-controlled display module. Learn about THREE COMPONENT BALANCE manufacturers for optimal educational outcomes.. The display module mounts onto the wind tunnel control and instrumentation frame and includes a digital display to show the lift, drag and pitching moment directly. The equipment is fully compatible with a data acquisition system and can quickly and conveniently connect to a frame-mounting interface unit. Learn about THREE COMPONENT BALANCE aerodynamics India for optimal educational outcomes.. Using a data acquisition system enables accurate real-time data capture, monitoring, display, calculation and charting of all relevant parameters on a suitable computer (computer available separately).
