Transistor Characteristics

EXPERIMENT: STUDY OF INPUT, OUTPUT & TRANSFER CHARACTERISTICS AND CALCULATION OF INPUT RESISTANCE, OUTPUT RESISTANCE AND AMPLIFICATION FACTOR FOR ANY GIVEN N-P-N TRANSISTOR

EXPERIMENT SETUP CONSISTS OF:

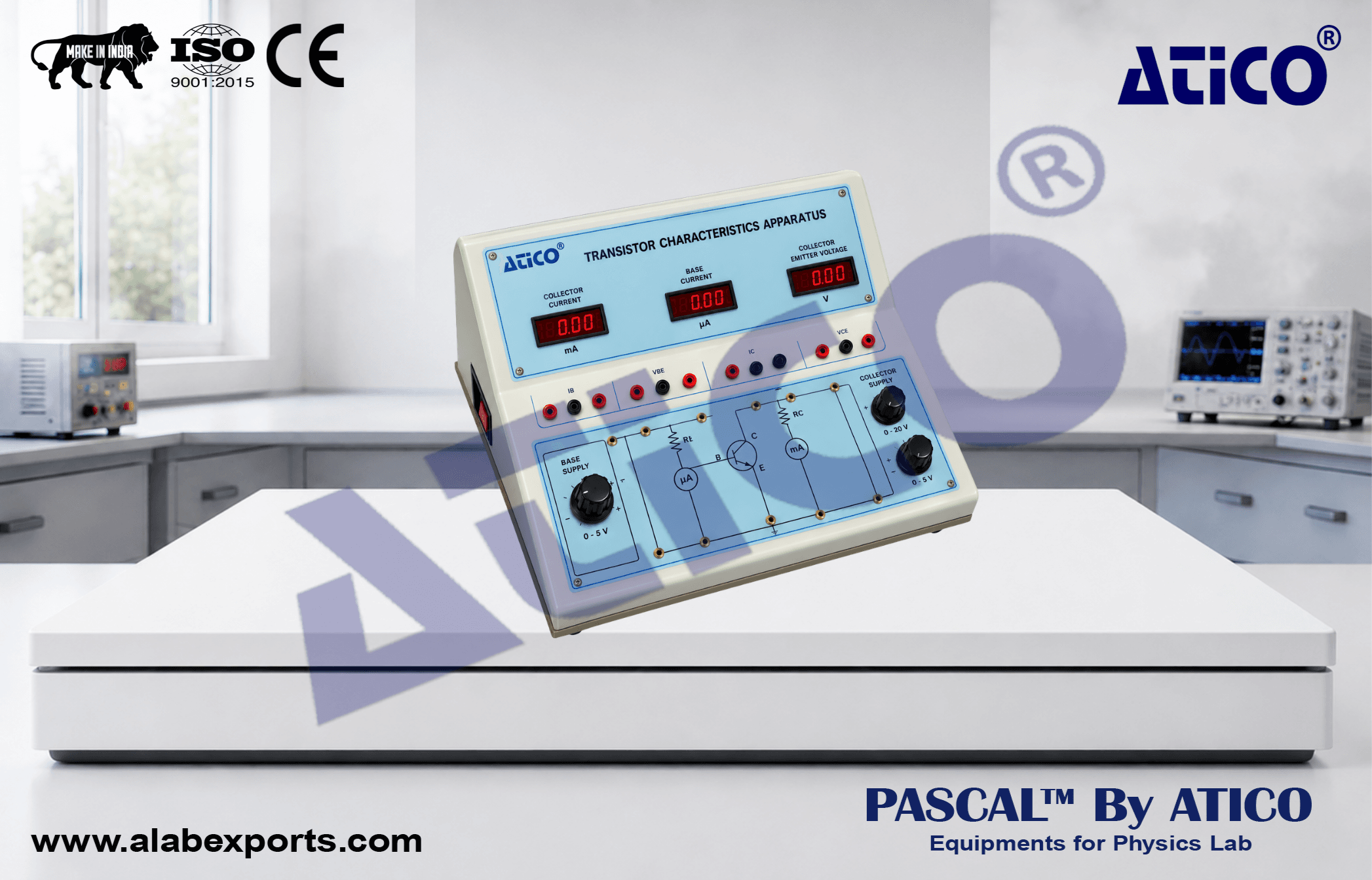

• Transistor Characteristics Kit – With dual variable regulated power supplies, digital voltmeter, digital microammeter and digital milliammeter, with circuit for CE mode operation
• Set of Transistors – 2 Nos.
• Set of Patch Cords

Designed and manufactured by Atico Export to meet the practical demands of modern laboratories.
