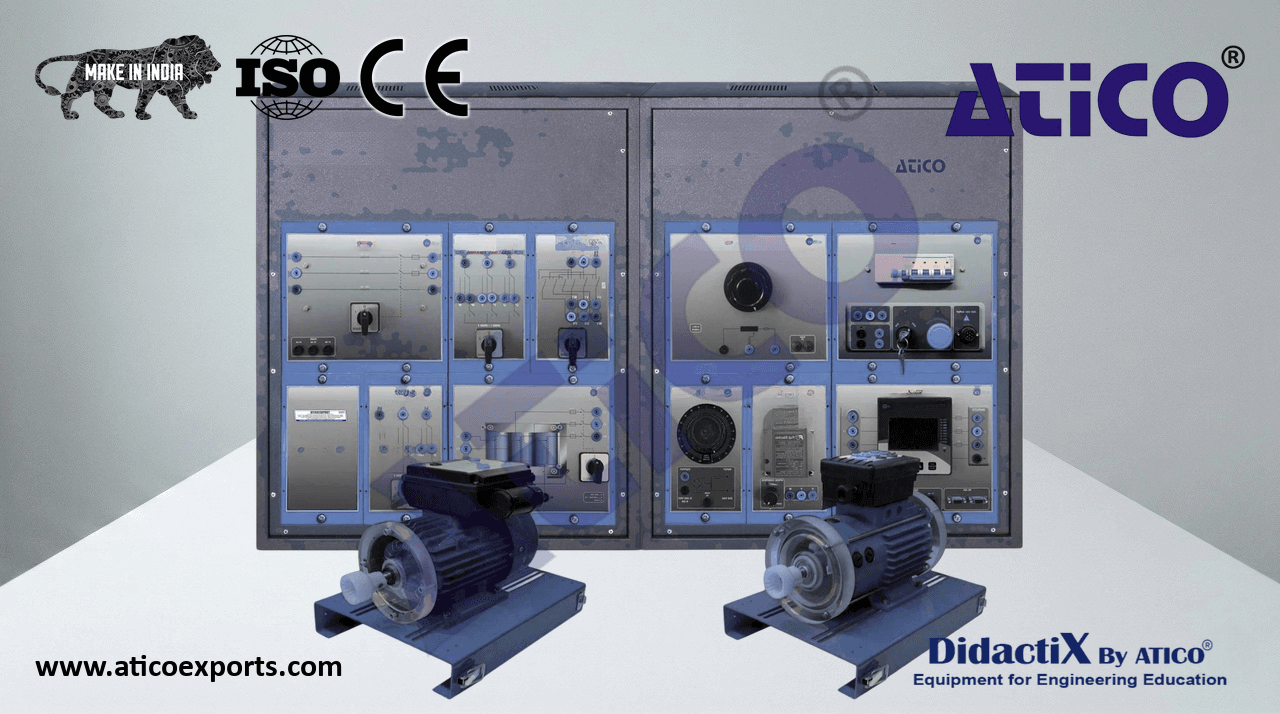

Transparent and Functional Motors Application

The Transparent and Functional Motors Application for the formation at theoretical-practical and functional levels about the electric rotating machines.

ATENG 11150 — Transparent and Functional Motors Application

• The “ATENG 11150” application includes the following elements:
• N-ALI01. Industrial Main Power Supply Module.
• Supply voltage: 400 VAC, 3PH + N.
  ON / OFF removable key.
• Output voltage connections:
• Three-phase + Neutral: 400 VAC.
• Single-phase: 230 VAC. N-ALI01
• Three-phase supply hose with IP44 3PN + E 32 A 400 V connecting plug.
• Differential magnetothermal 4 poles, 25 A, 30 mA AC 6 KA.
  Emergency stop push button.
• MED65. Digital Multimeter (2 units).
• Digital multimeter with 3 ½ digits, with 4 mm double connector termination cables to facilitate
  interconnections.
• With this digital multimeter we can measure:
  Voltage.
  Current.
  MED65
  Resistance.
  Capacitors capacity.
  Temperature.
• STRO. Stroboscope.
• Flash speed: 100 – 10000 flash per minute.
• Speed rate: 100 – 10000 rpm.
• Display: flash speed.
• Required elements (at least one) (Not included):

STRO

• EMT1-T-DC-KIT. Transparent and Functional DC Independent Excitation Motor-Generator Study Kit.
• EMT1-T. Transparent and Functional DC Independent Excitation Motor-Generator.
• Nominal power: 250 W.
• Armature voltage: 200 VDC.
• Excitation voltage: 190 VDC.
• Armature current: 1.5 A.
• Excitation current: 0.3 A.
  EMT1-T
• Speed: 3000 rpm.
• Shaft height: 71 mm.
• N-VVCC/M. DC Motor Speed Controller Module (intermediate option) (2 units).
• Supply voltage: 230 VAC.
• Variable output voltage: 0 – 300 VDC.
• Fuse: 2 A.
  N-VVCC/M
• EMT2-T-DC-KIT. Transparent and Functional DC Series Excitation Motor-Generator Study Kit.
• EMT2-T. Transparent and Functional DC Series Excitation Motor-Generator.
• Nominal power: 300 W.
• Armature voltage: 200 VDC.
• Armature current: 1.5 A.
• Speed: 7500 rpm. EMT2-T
• Shaft height: 71 mm.
• N-VVCC/M. DC Motor Speed Controller Module (intermediate option).
• Supply voltage: 230 VAC.
• Variable output voltage: 0 – 300 VDC.
• Fuse: 2 A.
  N-VVCC/M
  4

Specificacions

• EMT3-T-DC-KIT. Transparent and Functional DC Shunt Excitation Motor-Generator Study Kit.
• EMT3-T. Transparent and Functional DC Shunt Excitation Motor-Generator.
• Nominal power: 300 W.
• Nominal voltage: 200 VDC.
• Nominal current: 1.5 A.
• Speed: 3400 rpm.
• Shaft height: 71 mm.
  EMT3-T
• N-VVCC/M. DC Motor Speed Controller Module (intermediate option).
• Supply voltage: 230 VAC.
• Variable output voltage: 0 – 300 VDC.
• Fuse: 2 A.
  N-VVCC/M
• EMT4-T-DC-KIT. Transparent and Functional DC Compound Excitation Motor-Generator Study Kit.
• EMT4-T. Transparent and Functional DC Compound Excitation Motor-Generator.
• Nominal power: 250 W.
• Armature voltage: 200 VDC.
• Armature current: 1.5 A.
• Excitation current: 0.3 A.
• Speed: 3000 rpm.
  EMT4-T
• Shaft height: 71 mm.
• N-VVCC/M. DC Motor Speed Controller Module (intermediate option).
• Supply voltage: 230 VAC.
• Variable output voltage: 0 – 300 VDC.
• Fuse: 2 A.
  N-VVCC/M
• EMT5-T-DC-KIT. Transparent and Functional DC Serie/Shunt/Compound Excitation Motor-Generator
  Study Kit.
• EMT5-T. Transparent and Functional DC Shunt/Series/Compound Excitation Motor-Generator.
• Nominal power: 300 W.
• Armature voltage: 200 VDC.
• Excitation voltage: 230 VDC.
• Armature current: 1.5 A.
• Excitation current: 0.4 A. EMT5-T
• Speed: 3400 / 7500 rpm.
• Shaft height: 71 mm.
• N-VVCC/M. DC Motor Speed Controller Module (intermediate option) (2 units).
• Supply voltage: 230 VAC.
• Variable output voltage: 0 – 300 VDC.
• Fuse: 2 A.
• EMT6-T-AC-KIT. Transparent and Functional Independent Excitation 3PH Synchronous Motor-
  N-VVCC/M
  Generator Study Kit.
• EMT6-T. Transparent and Functional Independent Excitation 3PH Synchronous Motor-Generator.
• Nominal power: 250 W.
• Nominal output voltage: 3 x 400 VAC.
• Frequency: 50 / 60 Hz.
• Speed: 3000 rpm.
• Nominal output current: 1 A.
• Nominal excitation current: 0.25 A. EMT6-T
• Shaft height: 71 mm.
  5

Specificacions

• N-VVCC/M. DC Motor Speed Controller Module (intermediate option).
• Supply voltage: 230 VAC.
• Variable output voltage: 0 – 300 VDC.
• Fuse: 2 A.
• . 3PH Squirrel-Cage Motor. N-VVCC/M
• Nominal power: 370 W.
• Nominal voltage: 3 x 400 VAC.
• Frequency: 50 / 60 Hz.
• Speed: 900 / 1420 rpm.
• Nominal current: 1.05 / 1.35 A.
• Shaft height: 71 mm.
• N-VVCA/M. AC Motors Speed Controller Module (intermediate option).
  ON / OFF switch.
• Supply voltage: 230 VAC.
• Nominal power: 750 W.
• PWM output voltage connections:
  N-VVCA/M
• Three-phase: 230 VAC.
  10 K potentiometer for the induction motor control speed.
  Setting and visualization display of the machine parameters.
• N-REFTI. Three-Phase Independent Resistor Module.
• Nominal voltage: 400 VAC.
• Resistor value: 3 x 150 Ohm.
• Nominal power: 3 x 352 W.
  Manual commutator to switch ON / OFF the resistors.
  N-REFTI
• Fuses: 3 x 5 A.
• Terminals:
  Three input terminals (3PH).
  Three output terminals (3PH).
• -T-AC-KIT. Transparent and Functional 3PH Squirrel-Cage Industrial Motor Study Kit.
• -T. Transparent and Functional 3PH Squirrel-Cage Motor.
• Nominal power: 370 W.
• Nominal voltage: 3 x 400 VAC.
• Frequency: 50 / 60 Hz.
• Speed: 900 / 1420 rpm.
  EMT7-T
• Nominal current: 1.05 / 1.35 A.
• Shaft height: 71 mm.
• N-ARR01. Manual Star-Delta Starter Module.
• Nominal voltage: 400 VAC.
• Maximum contacts current: 10 A.
• Star-delta three positions commutator:
• 0: Open circuit.
• Y: Star connection. N-ARR01
• Δ: Delta connection.
  6

Specificacions

• N-TRANS03. Three-Phase Autotransformer 400/230 VAC, 1 kVA, Module.
  Three-phase autotransformer.
• Input voltage: 400 VAC (3PH).
• Output voltage: 3 x 230 VAC (3PH).
• Nominal power: 1 kVA.
  Three-phase ON / OFF switch. N-TRANS03
• Fuses: 3 x 5 A.
• EMT8-T-AC-KIT. Transparent and Functional 3PH Wound Motor Study Kit.
• EMT8-T. Transparent and Functional 3PH Wound Motor.
• Nominal power: 300 W.
• Nominal voltage: 3 x 230 / 400 VAC Δ / Y.
• Frequency: 50 / 60 Hz.
• Poles number: 2.
  EMT8-T
• Speed: 2870 rpm.
• Nominal current: 1 / 0.5 A.
• Shaft height: 71 mm.
• N-TRANS03. Three-Phase Autotransformer 400/230 VAC, 1 kVA, Module.
  Three-phase autotransformer.
• Input voltage: 400 VAC (3PH).
• Output voltage: 3 x 230 VAC (3PH).
• Nominal power: 1 kVA.
  Three-phase ON / OFF switch. N-TRANS03
• Fuses: 3 x 5 A.
• N-ARR01. Manual Star-Delta Starter Module.
• Nominal voltage: 400 VAC.
• Maximum contacts current: 10 A.
• Star-delta three positions commutator:
• 0: Open circuit.
• Y: Star connection. N-ARR01
• Δ: Delta connection.
• N-REFTI. Three-Phase Independent Resistor Module (3 units).
• Nominal voltage: 400 VAC.
• Resistor value: 3 x 150 Ohm.
• Nominal power: 3 x 352 W.
  Manual commutator to switch ON / OFF the resistors.
• Fuses: 3 x 5 A. N-REFTI
• Terminals:
  Three input terminals (3PH).
  Three output terminals (3PH).
• EMT9-T-AC-KIT. Transparent and Functional Dahlander Motor, 2 speeds Study Kit.
• EMT9-T. Transparent and Functional Dahlander Motor, 2 speeds.
• Nominal power: 370 W.
• Nominal voltage: 3 x 400 VAC.
• Frequency: 50 / 60 Hz.
• Poles number: 4.
• Speed: 1400 / 2800 rpm.
  EMT9-T
• Nominal current: 1.2 / 1.55 A.
• Shaft height: 71 mm.
  7

Specificacions

• N-ARR07. Manual Dahlander Commutator Module, 2 speeds.
• Nominal voltage: 400 VAC.
• Maximum contacts current: 10 A.
• Three positions commutator:
• 0: Open circuit.
• 1: Low speed. N-ARR07
• 2: High speed.
• EMT10-T-AC-KIT. Transparent and Functional 3PH Squirrel-Cage Motor, 2 speeds Study Kit.
• EMT10-T. Transparent and Functional 3PH Squirrel-Cage Motor, 2 speeds.
• Nominal power: 240 / 370 W.
• Nominal voltage: 3 x 400 VAC.
• Frequency: 50 / 60 Hz.
• Speed: 900 / 1420 rpm.
• Nominal Current: 1.05 / 1.35 A.
  EMT10-T
• Shaft height: 71 mm.
• N-ARR09. Manual Independent Windings Commutator Module, 2 speeds.
• Nominal voltage: 400 VAC.
• Maximum contacts current: 10 A.
• Three positions commutator:
• 0: Open circuit.
• 1: Winding 1. N-ARR09
• 2: Winding 2.
• EMT12-T-DC-KIT. Transparent and Functional Universal Motor Study Kit.
• EMT12-T. Transparent and Functional Universal Motor.
• Nominal power: 230 W.
• Nominal voltage: 110 – 240 VAC / VDC.
• Speed: 9000 rpm.
• Shaft height: 71 mm. EMT12-T
• N-REV. Single Phase Variable Resistor Module.
• Variable resistor: 150 Ohm.
• Maximum power: 500 W.
  Potentiometer.
• Terminals: N-REV
  Three terminals to choose all resistance or variable resistance.
• Fuse: 2 A.
• N-VVCC/M. DC Motor Speed Controller Module (intermediate option).
• Supply voltage: 230 VAC.
• Variable output voltage: 0 – 300 VDC.
• Fuse: 2 A.
  N-VVCC/M
• EMT15-T-DC-KIT. Transparent and Functional DC Permanent Magnet Motor Study Kit.
• EMT15-T. Transparent and Functional DC Permanent Magnet Motor.
• Nominal power: 300 W.
• Nominal voltage: 200 VDC.
• Nominal current: 0.5 A.
• Speed: 3400 rpm.
• Shaft height: 71 mm. EMT15-T
  8

Specificacions

• N-VVCC/M. DC Motor Speed Controller Module (intermediate option).
• Supply voltage: 230 VAC.
• Variable output voltage: 0 – 300 VDC.
• Fuse: 2 A.
• EMT20-T-AC-KIT. Transparent and Functional 1PH Squirrel-Cage Motor with Split Phase Study Kit. N-VVCC/M
• EMT20-T. Transparent and Functional 1PH Squirrel-Cage Motor with Split Phase.
• Nominal power: 370 W.
• Nominal voltage: 220 VAC.
• Speed: 2780 rpm.
• Frequency: 50 Hz.
• Armature current: 2.53 A. EMT20-T
• Shaft height: 71 mm.
• N-VVCA/M. AC Motors Speed Controller Module (Intermediate option).
  ON / OFF switch.
• Supply voltage: 230 VAC.
• Nominal power: 750 W.
• PWM output voltage connections:
• Three-phase: 230 VAC. N-VVCA/M
  10 K potentiometer for the induction motor control speed.
  Setting and visualization display of the machine parameters.
• EMT21-T-AC-KIT. Transparent and Functional 3PH Reluctance Motor Study Kit.
• EMT21-T. Transparent and Functional 3PH Reluctance Motor.
• Nominal power: 300 W.
• Nominal voltage: 3 x 400 VAC.
• Frequency: 50 / 60 Hz.
• Speed: 3000 rpm.
• Nominal current: 1.4 A. EMT21-T
• Shaft height: 71 mm.
• N-VVCA/M. AC Motors Speed Controller Module (Intermediate option).
  ON / OFF switch.
• Supply voltage: 230 VAC.
• Nominal power: 750 W.
• PWM output voltage connections:
  N-VVCA/M
• Three-phase: 230 VAC.
  10 K potentiometer for the induction motor control speed.
  Setting and visualization display of the machine parameters.
• EMT11-T. Transparent and Functional 1PH Squirrel-Cage Motor with Starting Capacitor.
• Nominal power: 370 W.
• Nominal voltage: 3 x 230 VAC.
• Frequency: 50 / 60 Hz.
• Speed: 2780 rpm.
• Nominal current: 2.53 A. EMT11-T
• Shaft height: 71 mm.
  9

Specificacions

• EMT16-T. Transparent and Functional 1PH Squirrel-Cage Motor with Starting and Running Capacitor.
• Nominal power: 370 W.
• Nominal voltage: 110 / 220 VAC.
• Speed: 2780 rpm.
• Frequency: 50 / 60 Hz.
• Nominal current: 1.85 A.
  EMT16-T
• Shaft height: 71 mm.
• EMT22-T. Transparent and Functional 1PH Shaded Pole Motor.
• Nominal power: 34 W.
• Nominal voltage: 230 / 240 VAC.
• Frequency: 50 / 60 Hz.
• Speed: 1550 rpm.
• Shaft height: 71 mm.
  EMT22-T
• Recommended additional elements (Not included):
• FRECP. Eddy Current Brake.
• Maximum supply voltage: 60 VDC.
• Nominal current: 1.67 A.
• Maximum current: 1.8 A.
• Maximum braking torque: 1.4 Nm.
• Shaft height: 71 mm.

FRECP

• FRENP. Magnetic Powder Brake.
• Nominal torque: 5 Nm.
• Maximum power dissipation: 100 W.
  Maximum output current adjustment.
  Operating modes “freewheel “ and “blocking”.
• Nominal voltage: 24 VAC / VDC.

FRENP

• Maximum output current: 2 A.
• Output load (resistor): 4 – 20 Ohm.
• Maximum power consumed: 70 W.
• Remote voltage control: 0 – 10 VDC.
• Weight: 4 Kg.
• FRE-FE. Electronic Brake.
  The electronic brake is a unit that allows the braking torque of a motor to be regulated.
• The unit is composed of two main elements:
• Control module:
• Front panel:
  Braking torque control. FRE-FE
  ON / OFF switch.
  Electrical parameters indicator.
• Display manipulation: Key “FUNC / DATA”. Keys “RUN” / “STOP”.
  Forward / reverse switch.
  Braking motor mounted on a bench-support.
  Cable to connect the two elements.
• Power: 370 W.
• Armature voltage: 220 / 240 VDC.
  The motor braking torque is controlled by a control potentiometer located on the front of the control
  module.
  The direction of the braking motor is controlled by a switch located on the front panel of the control
  module.
• In addition, the user will be able to visualize on a display various electrical parameters (such as: current,
  frequency, active power, etc.).
  10
