Tubing and Piping Trainer

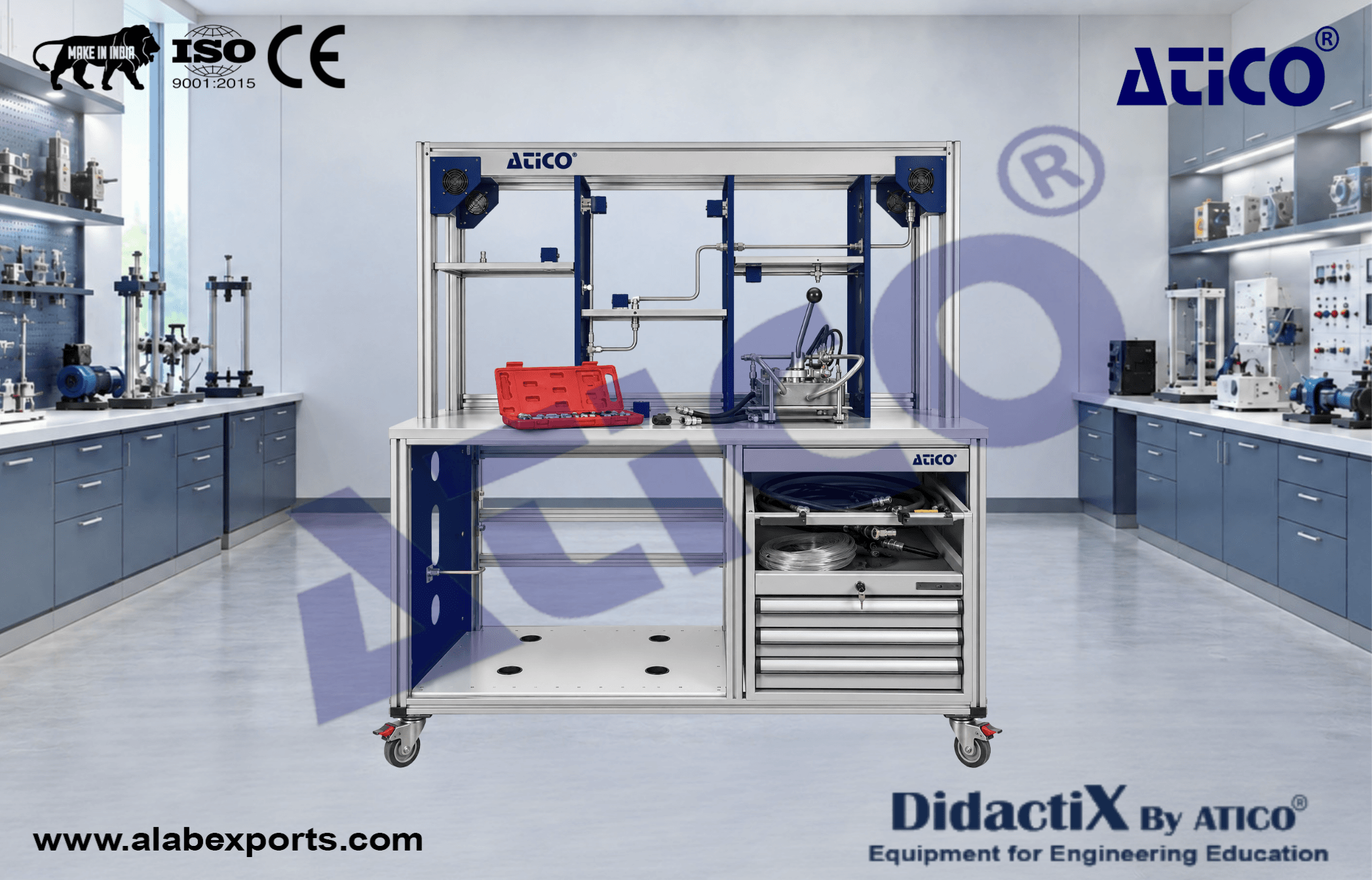

The Tubing and Piping Training Set provides training on tubing and piping used in hydraulic and pneumatic systems in an aircraft. Tubing and hose assemblies prepared by trainees can be tested using the integrated pump and pressure gauges.

Manufactured by Atico Export with quality-focused production and attention to engineering specifications for teaching and training purposes.

Components :

• Two (2) Hydraulic Pressure Gauges
• Two (2) Pneumatic Pressure Gauges
• Hydraulic Tank with Hand Pump
• Flaring Tools
• Tube Cutter
• Tube Bender
• Fittings (at least 200 units)
  • Male Elbow
  • Male Plug
  • Female Plug
  • Male Cross
  • Female Cross
  • Nipple
  • Cap
  • Sleeve
  • Nut
  • Straight
  • Female Run Tee
  • Male Run Tee
  • Female Elbow
  • Adaptor
• Fifty (50) Meter Transparent Pneumatic Hose
• Fifty (50) Meter Aluminum Hose and 20 Meter Metal Hose
• Two (2) Drawers for Fittings

Documentation :

• User’s Manual

• Understand fundamentals of tubing and piping and their components.
• Practice piping and tubing skills
• Twenty (20) different training scenarios
• Twenty (20) different transition points
• Pressure gauges to show line pressures
• Vertical and horizontal applications
• The system is mounted on a metal/aluminum mobile stand.
• Metal/aluminum frame with 4 wheels. 2 of 4 wheels are lockable.
• Delivered fully assembled, tested, and ready to operate
