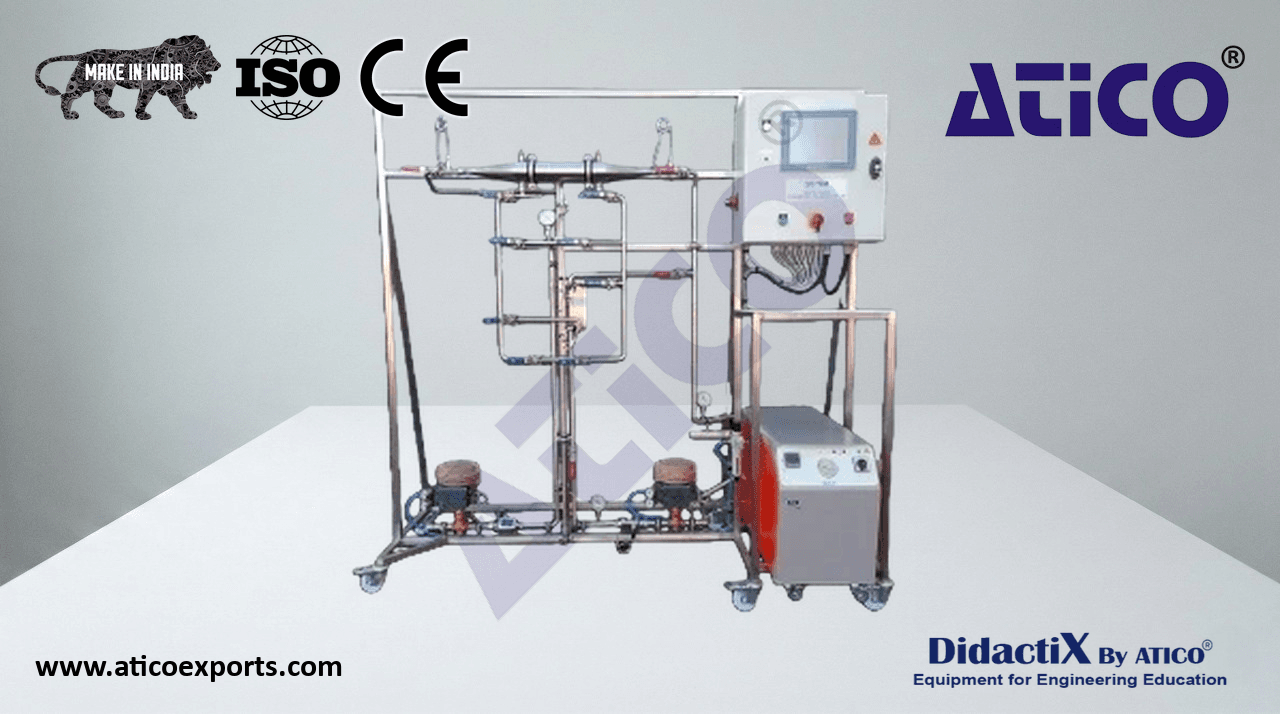

Two Heat Exchanger Study Bench

This pilot allows the study and comparison of 2 types of heat exchangers: plate (0. 1 or 0. 2 m²) and multi-tube (0. Learn about Two Heat Exchanger Study Bench equipment for optimal educational outcomes.. 1 or 0. 2 m²). Learn about Two Heat Exchanger Study Bench for educational labs for optimal educational outcomes.. It allows the study of co-current or counter-current exchangers. Educational Objectives: Determination of heat balances, global exchange coefficients, and flow regimes. Learn about Two Heat Exchanger Study Bench India for optimal educational outcomes.. Study of transfer modes (co- or counter-current). Influence of hot and cold fluid supply. Learn about Two Heat Exchanger Study Bench price for optimal educational outcomes.. Comparison of efficiency of 2 types of exchangers. Establishment of temperature profiles and calculation of mean temperature differences. Learn about Two Heat Exchanger Study Bench manufacturers for optimal educational outcomes..

Composition:

• 1 brazed plate heat exchanger
• 1 multi-tube heat exchanger: tube bundle with one end welded to a plate, mounted inside a stainless steel shell
• All exchangers in stainless steel
• Manual stainless steel valves for circuit selection
• Pressure gauges
• 1 float-type flow meter (cold circuit) PVC
• 1 float-type flow meter (hot circuit) PVC
• Stainless steel globe valves for flow rate adjustment on cold and hot water circuits
• 8 Pt100 temperature probes
• Electrical cabinet with 2-position commutator for circulation mode selection (co- or counter-current), transmitters and emergency stop
• Temperature displays
• Hydraulic circuit in stainless steel, on welded stainless steel chassis

Options:

Option 1 (data acquisition): Two electronic flow meters replace the float-type flow meters. Acquisition and visualization of temperatures and flow rates on a 9.
