Universal Motor Application

The Universal Motor Application, to study of the main operations performed in the industrial field with universal motors.

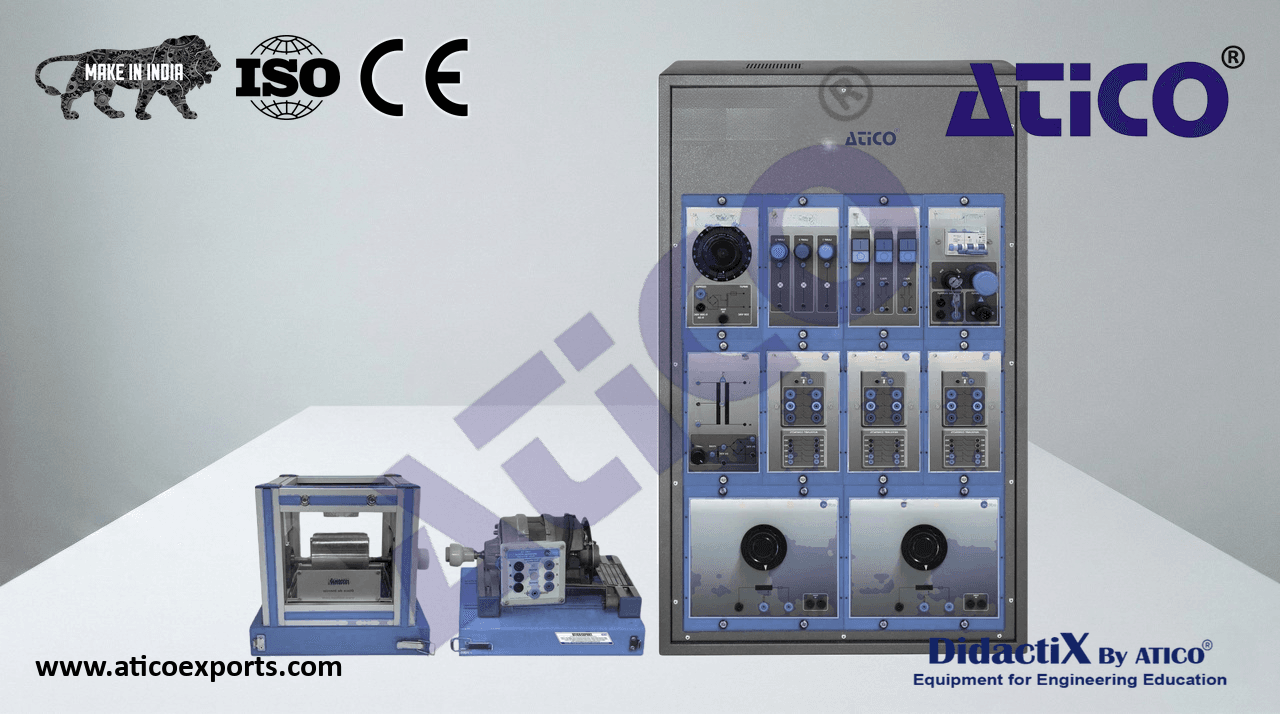

ATENG 11167 — Universal Motor Application

• The “ATENG 11167” application includes the following elements:
• N-ALI02. Domestic Main Power Supply Module.
• Supply voltage (single-phase): 230 VAC, 1PH + N.
  ON / OFF removable key.
• Output voltage connections:
• Two single-phase: 230 VAC.
  Single-phase supply hose connecting plug. N-ALI02
• Differential magnetothermal 2 poles, 25 A, 30 mA AC 6 KA.
  Emergency stop push-button.
• N-PUL48. Module with Three Dual Camera Push Buttons.
  Two independent chambers.
• Nominal voltage: 24 VAC.
  Three double chamber push-buttons (green and red).
  N-PUL48
• Contacts:
  Three Normally Open Contacts (NO) for green switch.
  Three Normally Close Contacts (NC) for red switch.
• N-LAM02. Auxiliary Lamps Module.
• Nominal voltage: 24 VAC.
  Three lamps (red, yellow and green).
  N-LAM02
• N-CON01. Three-Pole Contactor Module (24 VAC). (3 units)
• Nominal voltage for power contacts: 400 VAC.
• Nominal voltage for control contacts: 24 VAC.
• Nominal voltage for the control coil: 24 VAC.
• Contacts:
  One three-phase Normally Open Contact (NO) for power circuit.
  N-CON01
  Three Normally Open Contacts (NO) for control circuit.
  Two Normally Close Contacts (NC) for control circuit.
• N-ALI03. AC Auxiliary Power Supply (24 Vac) Module.
• Supply voltage (Single-Phase): 230VAC PH+N.
• Output voltage:
• Single-Phase 24 VAC/12 VAC. N-ALI03
• 24 VDC.
• 0-24 VDC through potentiometer.
• FLYW. Flywheel.
• Weight: 2 kg.
• Maximum recommended speed: 4000 rpm.

FLYW

• Moment of inertia: 0,0025 kgm².
• N-VVCC/M. DC Motor Speed Controller (Intermediate Option) Module.
• Supply voltage: 230 VAC.
• Variable output voltage: 0-300 VCC.
• Fuse: 2 A.
  N-VVCC/M
• N-REV. Single Phase Variable Resistor Module. (2 units).
  Variable resistor of 150 Ohm.
• Maximum power: 500 W.
  Potentiometer.
• Terminals:
  Three terminals to choose all resistance or variable resistance.
• Fuse: 2 A. N-REV
  3

Specifications

• EMT12. Universal Motor.
• Supply voltage: 110 – 240 VAC / VDC.
• Rated power: 0.3 HP.
• Speed: 9000 rpm.
• Shaft height: 71 mm.
