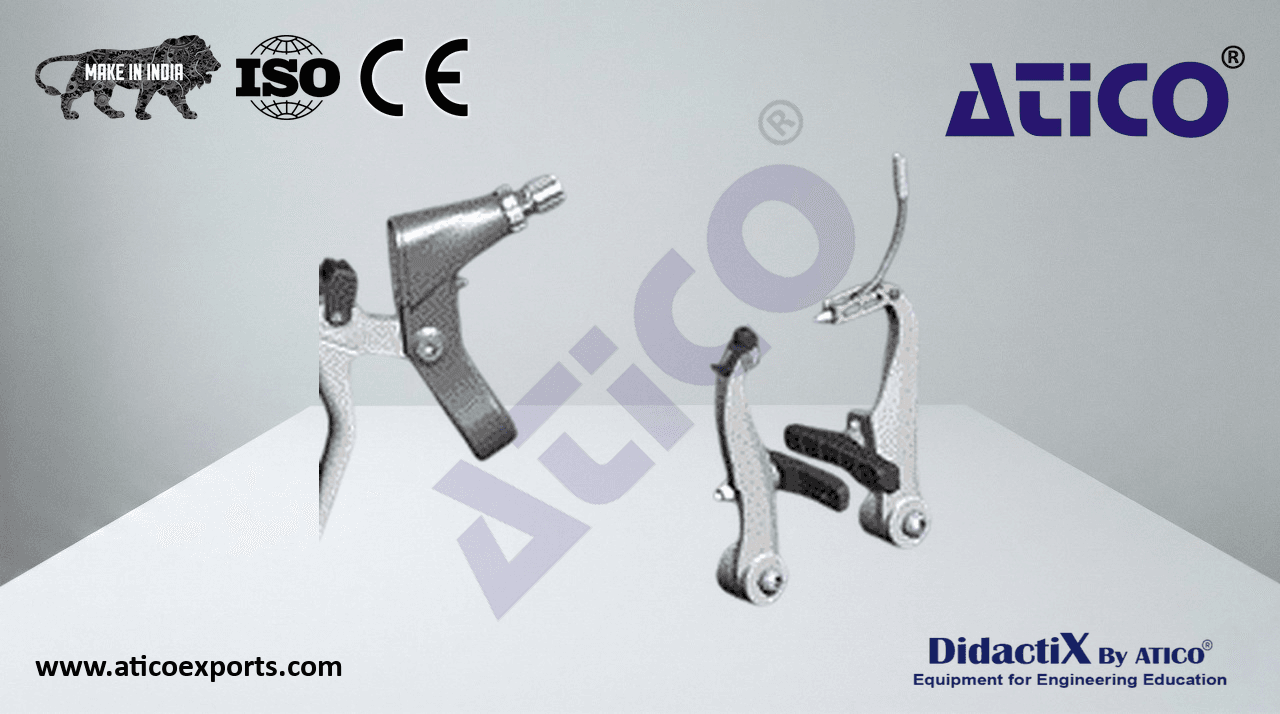

V-Brake Bicycle Brake

The V-Brake bicycle brake caliper is placed on a fork equipped with a cable and handle for context. Students describe a constructive solution from the real product and its volumetric representation, and apply the fundamental principle of statics. Educational Objectives: Identification of constructive solutions from the real product and its volumetric representation. Learn about V-Brake Bicycle Brake manufacturers for optimal educational outcomes.. 3D modeling of a mechanism part.

Composition

• V-Brake bicycle brake caliper mounted on a front fork equipped with a cable and handle
• CD-ROM with educational and technical resources (3D)

V-Brake bicycle brake caliper mounted on a front fork equipped with a cable and handle
CD-ROM with educational and technical resources (3D)
