Venturi Tube Study Apparatus

Most industrial deprimogenic flow measurement systems are based on the Venturi phenomenon. This apparatus allows observation of this phenomenon by measuring static pressure variation along a Venturi tube. It is a perfect application of Bernoulli's theorem. Learn about Venturi Tube Study Apparatus equipment for optimal educational outcomes..

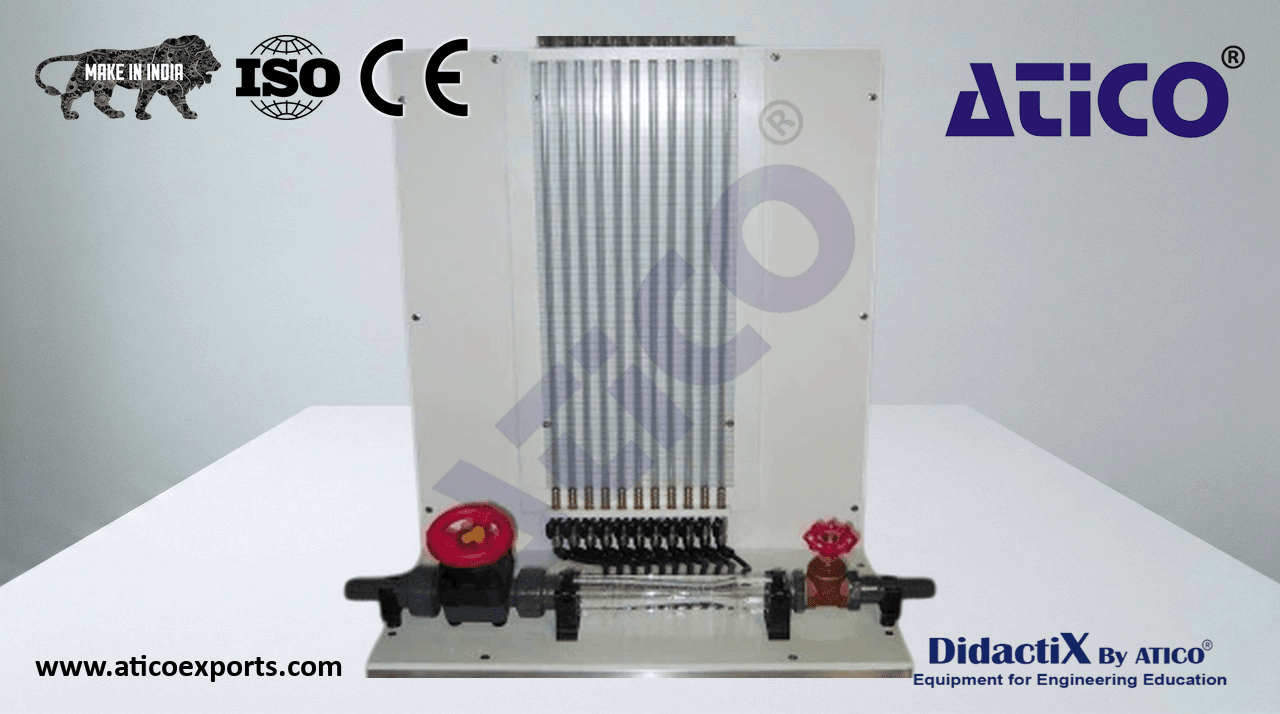

The fluid flows in a circular conduit, passes through a convergent section, then through a divergent section of lesser slope, before crossing a flow control valve. Eleven pressure tappings connected to a multi-manometer measure the static pressure variation within the Venturi tube.

Observation and measurement of static pressure distribution along a Venturi tube.
Application of Bernoulli's theorem and comparison of experimental and theoretical results.
Influence of Reynolds number on the discharge coefficient.
