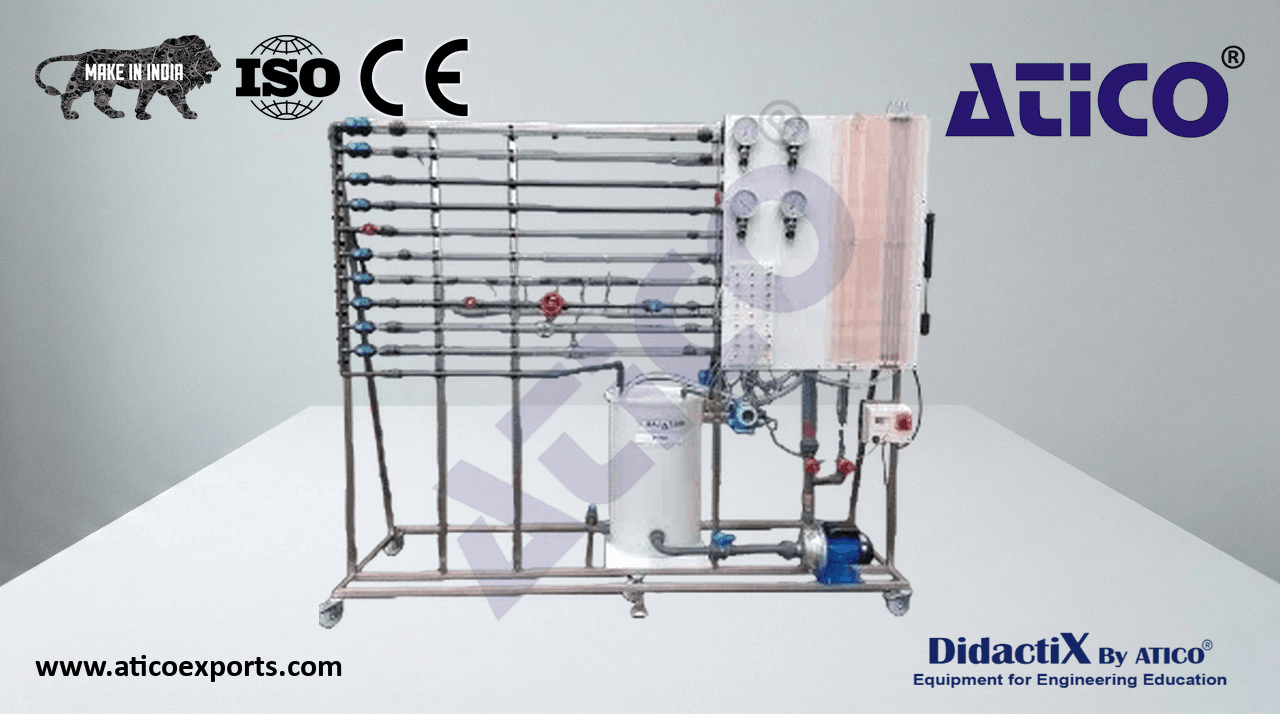

Vertical Parallel Fluid Dynamics Study Bench

A fluid flowing in a pipe is subject to friction forces causing energy loss and therefore total pressure drop. This varies depending on obstacles encountered by the fluid. Learning Objectives: Study of the main elements in a pipework installation. Learn about Vertical Parallel Fluid Dynamics Study Bench India for optimal educational outcomes.. Measurement of pressure drops via a differential pressure sensor with display, quick-connect fittings, and a manometric panel. Visualisation of flow in pipes and deprimogenic devices. Learn about Vertical Parallel Fluid Dynamics Study Bench specifications for optimal educational outcomes.. Demonstration of laminar and turbulent flow regimes. Study of major losses in: pipes of different diameters; smooth and rough pipes. Learn about Vertical Parallel Fluid Dynamics Study Bench price for optimal educational outcomes.. Study of minor losses in: elbows of different radii; sudden enlargements and reductions; different valves. Flow measurement using deprimogenic devices (Venturi, orifice plate). Learn about Vertical Parallel Fluid Dynamics Study Bench for educational labs for optimal educational outcomes.. Determination of valve Kv coefficients.

Major (distributed) and minor (localised) losses are distinguished. This bench demonstrates these various losses due to the main pipework installation elements.

Stainless steel frame with braked castors.
One feed tank with drain.
One industrial stainless steel centrifugal pump.
Two rotameters with 2 flow control valves.
Pipe sections fed by a complete set of directional manual valves.
Two acrylic pipes, DN15 and DN25.
Two PVC pipes DN15, one straight and one rough.
Elbows at 30°, 45°, 75°, 90°, and 135°.
One acrylic sudden enlargement and reduction, DN15–DN25.
Three valves (membrane, ball, globe).
One acrylic orifice plate.
One acrylic Venturi tube.
Piezometric tube panel and one U-tube for pressure measurement.
Self-sealing quick-connect fittings on each pressure tapping.
One pump start/stop and protection control box.
Technical and educational manual.
