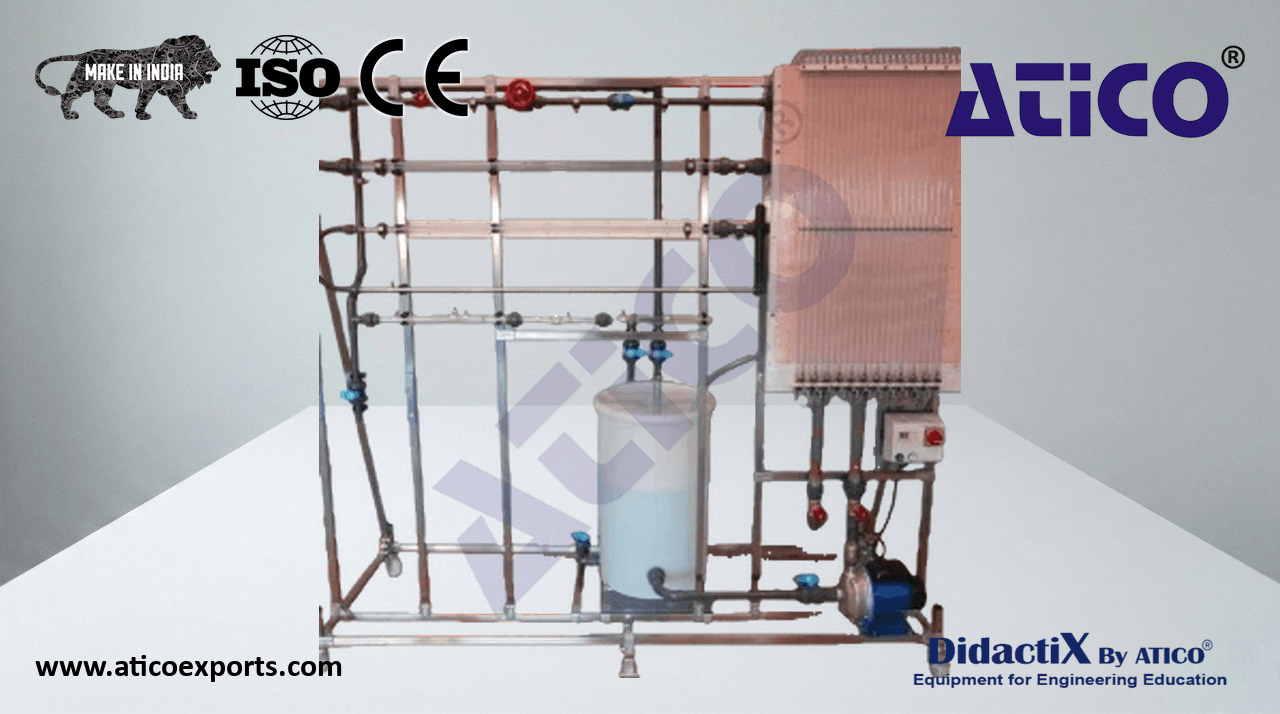

Vertical Series Fluid Dynamics Study Bench

A fluid flowing in a pipe is subject to friction forces causing energy loss and therefore total pressure drop. This varies depending on obstacles encountered by the fluid. Learning Objectives: Study of the main elements in a pipework installation. Learn about Vertical Series Fluid Dynamics Study Bench suppliers for optimal educational outcomes.. Measurement of pressure drops via a differential pressure sensor with display and quick-connect fittings. Visualisation of flow in pipes and deprimogenic devices. Learn about Vertical Series Fluid Dynamics Study Bench manufacturers for optimal educational outcomes.. Demonstration of laminar and turbulent flow regimes. Study of major and linear losses in: pipes of different diameters; smooth and rough pipes. Learn about Vertical Series Fluid Dynamics Study Bench exporters for optimal educational outcomes.. Study of minor and linear losses: elbows of different radii; sudden enlargements and reductions; different valves. Flow measurement using deprimogenic devices (Venturi, orifice plate). Learn about Vertical Series Fluid Dynamics Study Bench specifications for optimal educational outcomes.. Determination of valve Kv coefficients.

Major (distributed) and minor (localised) losses are distinguished. This bench demonstrates these various losses due to the main pipework installation elements.

Stainless steel and aluminium-fitting frame with 4 swivel castors, 2 of which are self-locking.
One tank with lid and drain valve.
One industrial stainless steel centrifugal pump.
1 rotameter.
1 flow control valve.
2 smooth straight pipes, diameters 16 and 32 mm, length 1 m.
1 straight pipe, diameter 17 mm.
2 x 180° elbows, bend radius 100 mm.
2 x 180° elbows, bend radius 50 mm.
One sudden enlargement and reduction, DN15–DN25.
One membrane valve.
One ball valve.
One globe valve.
One nozzle.
One orifice plate.
One Venturi tube.
Self-sealing quick-connect fittings and a differential pressure sensor with remote display on the electrical cabinet for pressure drop measurement.
One pump control and protection box. Technical and educational manual.
