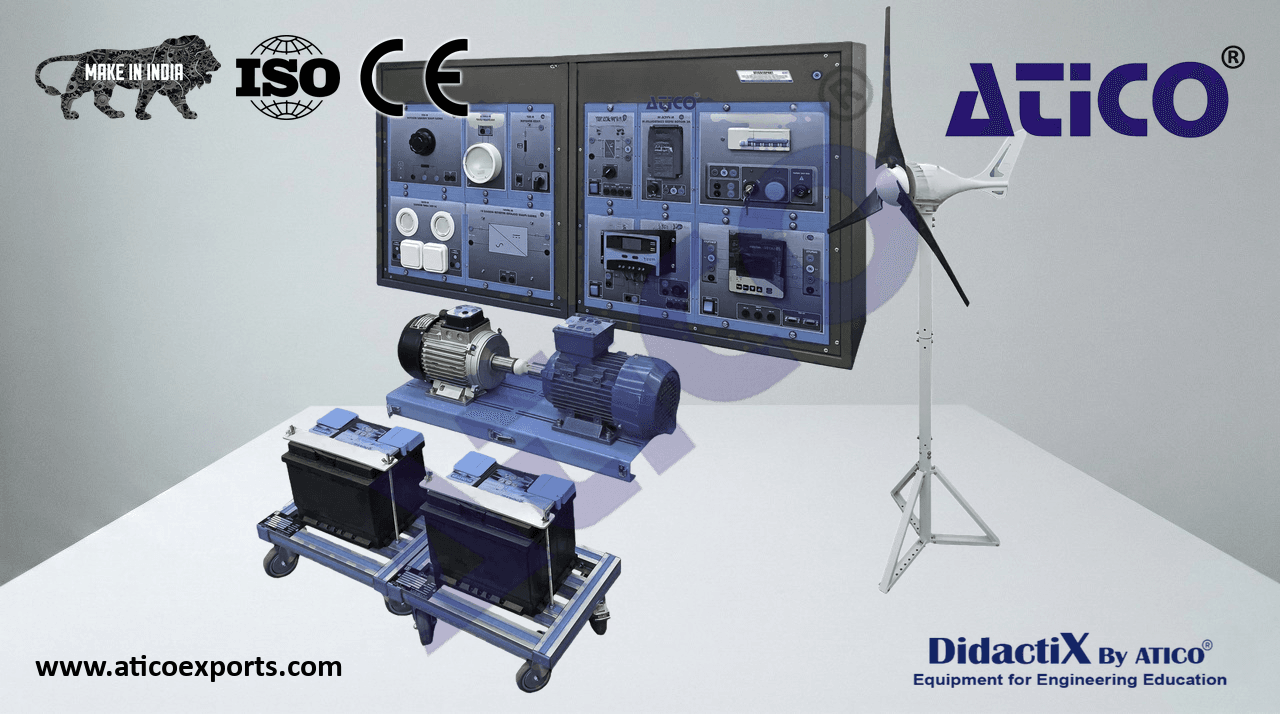

Wind Power Application with Permanent Magnets Synchronous Generator

The Wind Power Application with Permanent Magnets Synchronous Generator, to train the students in the main operations of wind turbines.

ATENG 11509 — Wind Power Application with Permanent Magnets Synchronous Generator

• The “ATENG 11509” application includes the following modules:
• N-ALI01. Industrial Main Power Supply Module.
• Supply voltage: 400 VAC, 3PH+N.
  Removable key ON/OFF.
• Output voltage connections:
• Three-Phase + Neutral: 400 VAC.
  N-ALI01
• Single-Phase: 230 VAC.
• Three-Phase supply hose with IP44 3PN+E 32 A 400 V connecting plug.
• Differential magnetothermal, 4 poles, 25 A, 30 mA AC 6 KA.
  Emergency stop push button.
• EMT6C. Cutaway Permanent Magnets 3PH Synchronous Motor-Generator, 8 Poles, 24 VAC.
• Nominal power: 0.6 kVA.
• Nominal voltage: 24 VAC.
• Speed: 850 rpm.
• Poles number: 8.
• Shaft height: 71 mm. EMT6C
• EMT7C. 3PH Squirrel-Cage Motor, 8 poles.
• Nominal power: 550 W.
• Nominal voltage: 3 x 230/400 VAC Δ/Y
• Frequency: 50/60 Hz.
• Poles number: 8.
  EMT7C
• Speed: 750 rpm.
• Nominal current: 3.6 / 2 A.
• Shaft height: 71 mm.
• N-VVCA/M. AC Motor Speed Controller (Intermediate Option) Module.
  ON/OFF Switch.
• Supply voltage: 230 VAC.
• Nominal power: 750 W.
• PWM output voltage connections:
  N-VVCA/M
• Three-phases: 230 VAC.
  10 K, potentiometer for the induction motor control speed.
  Setting and visualization display of the machine parameters.
• N-REV01. Single-Phase Variable Resistor Module 0-700 Ohm.
  0 – 700 Ohm variable resistor.
• Maximum power: 500 W.
  Potentiometer.
• Terminals:
  Three terminals for taking the maximum resistance or a variable value. N-REV01
• N-REF. Single-Phase Fixed Resistor Module.
• Resistance value: 150 Ohm.
• Maximum power: 500 W.
• Switch:
• Position 0: circuit opened.
• Position 1: circuit closed.
  N-REF
• Fuse: 2 A.
  3

Specifications

• N-TPAD-3PH/400V. 400V Three-Phase AC/DC Converter Module.
• 16 A fuses.
  Three-phase input terminals.
  ON/OFF switch.
  Auxiliary ON/OFF switch.
• DC output terminals. N-TPAP-3PH/400V
• Input voltage range: 0 – 400 VAC.
• Output voltage range: 0 – 400 VDC.
• BAT6. Lead-Acid Battery 6 (2 units).
• Battery voltage: 12 V.
• Charge and discharge current: 23 A.
• Battery capacity: 7 Ah.
  BAT6
• MED65. Digital Multimeter (2 units).
• This digital multimeter of about 3 ½ digits, with double-jack ending cables of about 4 mm to
  facilitate interconnections.
• With this digital multimeter we will be able to measure:
  Voltage.
  Current.
  Resistance. MED65
  Capacitors capacity.
  Temperature.
• N-LAM31. 2 LED Lamps Module with Commutators, 24 VDC.
• Supply voltage: 24 VDC.
  Two Lamps.
  Two switches.
• N-REG02. Current Electronic Regulator Module 2.
  N-LAM31
• Automatic detection of operating voltage of 12 V or 24 V.
• Monitoring of parameters:
  Voltage.
  Current.
  Charge level of the battery.
  Charging current.
  N-REG02
  State.
  Devices to protect itself, battery and loads.
