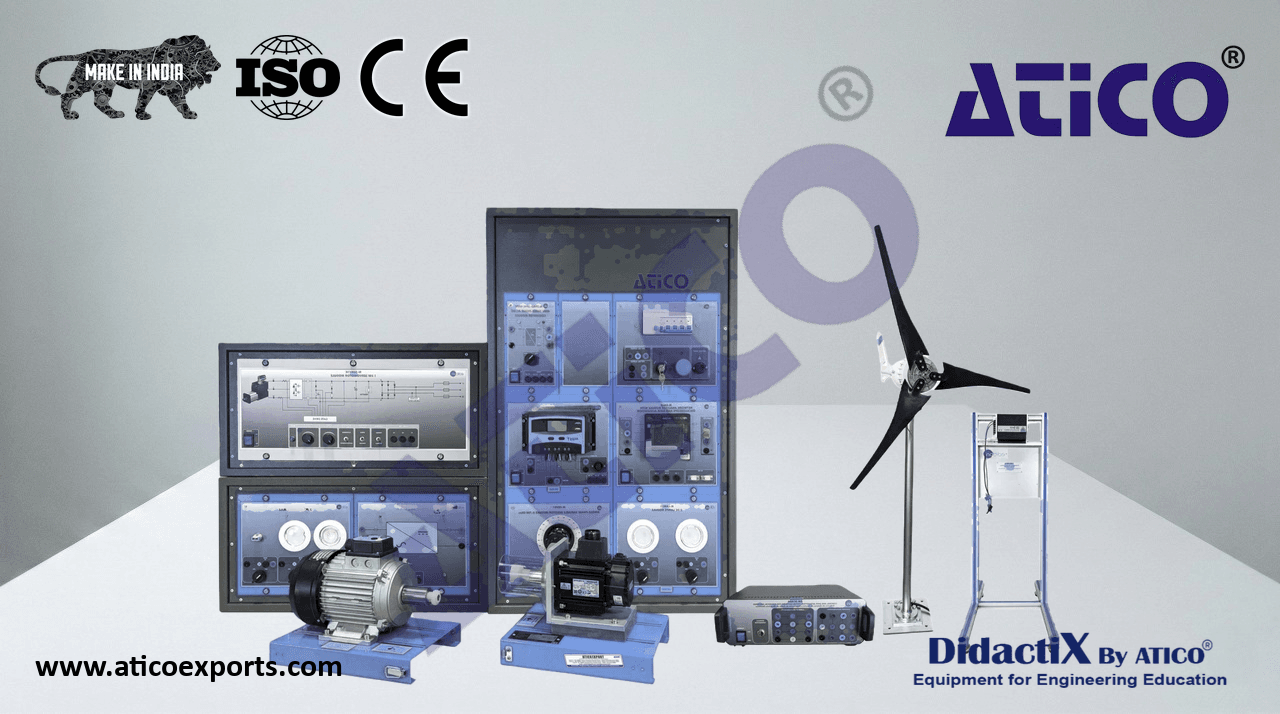

Wind Power Application with Permanent Magnets Synchronous Generator, with SCADA

The Wind Power Application with Permanent Magnets Synchronous Generator, with SCADA, has been designed to study the conversion of wind energy into electricity by means of a permanent magnet synchronous generator.

ATENG 11510 — Wind Power Application with Permanent Magnets Synchronous Generator, with SCADA

(for main items)

• With this unit there are several options and possibilities:
• Main items: 1, 2, 3 and 4.
• Optional items: 5, 6 and 7.
• Let us describe first the main items (1 to 4):
• 1AEL-WPTC Application.
• N-ALI01. Industrial Main Power Supply Module.
• Supply voltage: 400 VAC, 3PH + N.
  ON / OFF removable key.
• Output voltage connections:
• Three-phase + Neutral: 400 VAC.
• Single-phase: 230 VAC.
  N-ALI01
• Three-phase supply hose with IP44 3PN + E 32 A 400 V connecting plug.
• Differential magnetothermal 4 poles, 25 A, 30 mA AC 6 KA.
  Emergency stop push-button.
• N-EALD. Electrical Network Analyzer Module with Oscilloscope and Data Acquisition.
  The network analyzer module allows fulfilling measurements, displaying and analyzing all the
  parameters of the AC electrical networks. It has an LCD screen and push-buttons for the navigation
  through the different menus. It includes a specific software for monitoring current and voltage curves,
  harmonics display, tariffs programming, alarms programming and electrical parameters storage.
• Features:
• Multifunctional three-phase power meter: N-EALD
• Three-phase and single-phase voltage. Up to 690 VAC L-L.
• Line and neutral nominal current: 10 A.
  Active, reactive and apparent power.
• Suitable frequencies: 25 Hz, 50 Hz, 60 Hz and 400 Hz.
  Display of the V-I vector diagram.
• Supply voltage: 85 – 265 VAC.
• Energy quality control:
  Current and voltage individual harmonics measurement. Up to the 40th harmonic.
  Voltage and THD current, TDD current and K-Factor.
  Maximums and minimums display.
  Waveforms display, 128 samples/sec.
• Events and data storage:
• Harmonics analyzer:
  Voltage and THD current, TDD current and K-Factor, up to the 40th harmonic.
  Current and voltage harmonic spectrum and angles.
• Tariff programming:
  Class 0.5S IEC 62053 – 22, active and reactive power in four quadrants.
  Measurement of the total and per phase three-phase active, reactive and apparent powers.
  Usage time, four energy/demand records of total tariffs.
  Eight tariffs, four seasons and four types of days.
  Automatic daily report of energy consumption maximums and minimums.
• Communications:
  RS – 485 communication port.
• N-INV01. Single-Phase Isolated Inverter Module 01.
  ON / OFF switch.
• Nominal power: 240 VA.
• Input voltage: 24 VDC.
• Output voltage: 210 – 245 VAC.
• Safety functions:
  Cut out for excess battery voltage. N-INV01
  Over temperature and overload protection.
  Short-circuit protection.
  Pole reversal protection.
• N-LAM34. 3 AC Lamps Module.
• Lamps voltage: 230 VAC (1PH + N).
• Conventional lamp: 50 W.
• Low consumption lamp: 8 W.
• LED lamp: 2 W.
  Three switches.
  N-LAM34
• Fuses: 2 A.
  3

Complete Technical Specifications (for main items)

• N-LAM35. 2 DC Lamps Module.
• Lamps voltage: 12 VDC.
• Halogen lamp: 6 W.
• LED lamp: 2 W.
  Two switches.
• Fuses: 2 A.
  N-LAM35
• N-REV01. Single-Phase Variable Resistor Module 0-700 Ohm.
  Variable resistance from 0 – 700 Ohm.
• Maximum power: 500 W.
  Potentiometer.
• Terminals:
  Three terminals for taking the maximum resistance or a variable value.
  N-REV01
• N-SERV1K. 1 kW Servomotor Module.
  Dynamic and static operating mode in four quadrants.
  Speed and torque signals.
• Power supply terminals: 3 x 400 VAC.
• Frequency: 50 / 60 Hz.
• Nominal power: 1 kW.
• Maximum power: 3 kW.
• Maximum speed: 5000 rpm. N-SERV1K
• Nominal torque: 3.18 Nm.
• Maximum torque: 9.55 Nm.
  Temperature control.
  Speed control potentiometer.
  Torque control potentiometer.
• Mode selection switch: torque/speed control.
  Motor reversing switch.
• N-REG02. Current Electronic Regulator Module 2.
  ON / OFF switch.
• Output terminals: 24 VDC.
• Battery terminals: 24 VDC.
• Module power supply: 230 VAC.
• Nominal discharge current: 20 A.
  N-REG02
• Acceptable DC voltage range: 12 – 50 V.
• Fuses: 16 A.
• Monitoring of parameters:
  Voltage.
  Current.
  Charge level of the battery.
  Charging current.
  State.
  Devices with self-protection, battery and loads.
• N-TPAD-3PH/400V. 400 V Three-Phase AC/DC Converter Module.
  Three-phase input terminals.
  ON / OFF switch.
  Auxiliary ON / OFF switch.
  DC output terminals.
• Input voltage range: 0 – 400 VAC.
• N-TPAD-3PH/400V
• Output voltage range: 0 – 400 VDC.
• Fuses: 16 A.
• BAT6. Lead-Acid Battery 6. (2 units)
• Battery voltage: 12 V.
• Battery capacity: 66 Ah.
  BAT6
  4

Complete Technical Specifications (for main items)

• EMT6C. Permanent Magnets 3PH Synchronous Motor-Generator, 8 poles, 24 VAC.
• Nominal power: 450 W.
• Nominal voltage: 24 VAC.
• Synchronous speed: 1000 rpm.
• Number of poles: 8.
  EMT6C
• ATENG 11128. Control and Data Acquisition System Software for Electrical Machines.
• Power supply: 230 VAC.
• Input signals:
  Current signal (x2).
  RMS current signal (x2).
  ATENG 11128
  Voltage signal (x2).
  RMS voltage signal (x2).
  Torque and speed signals.
• Output signals:
  Torque control signal for the servomotor.
  Speed control signal for the servomotor.
  The three softwares are part of the SCADA system.
  Compatible with actual Windows operating systems. Graphic and intuitive simulation of the process in
  screen. Compatible with the industry standards.
  Registration and visualization of all process variables in an automatic and simultaneous way.
  Management, processing, comparison and storage of data.
  It allows graphic representation in real time.
  Comparative analysis of the obtained data, after the process and modification of the conditions during
  the process.
  This unit allows the 30 students of the classroom to visualize simultaneously all the results and the
  manipulation of the unit, during the process, by using a projector or an electronic whiteboard.
