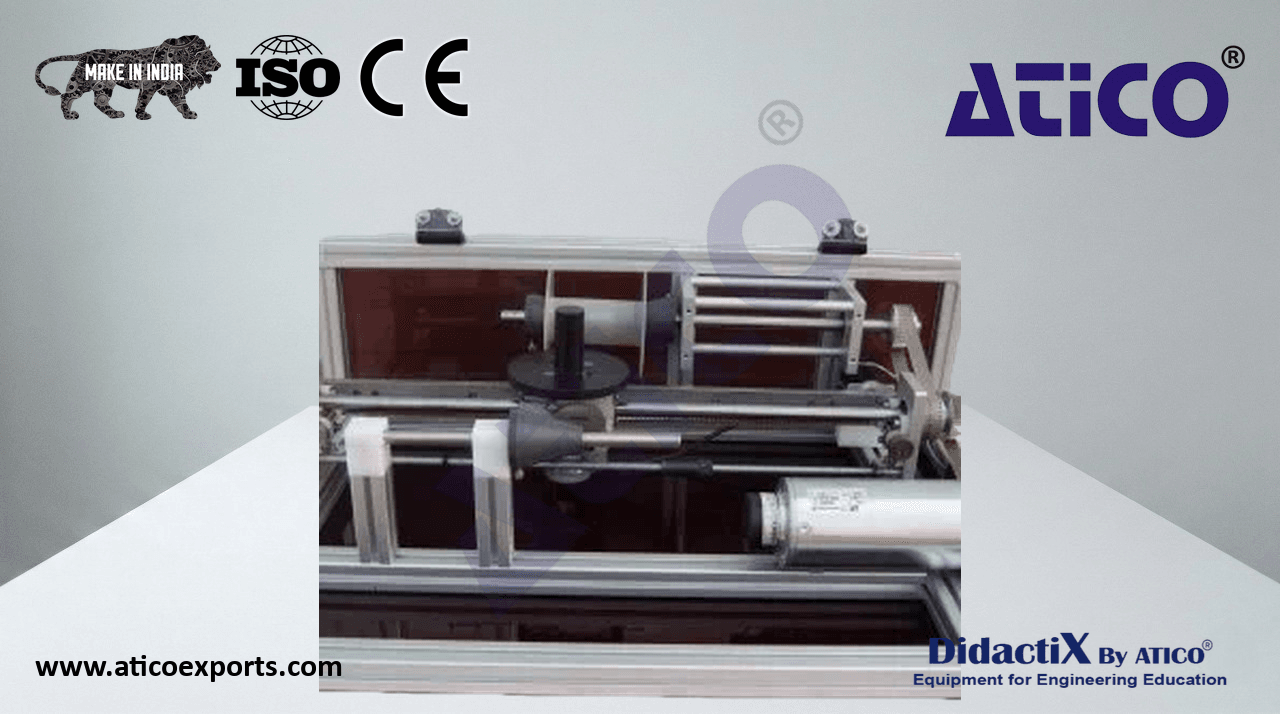

Winding Traverse System

This winding traverse system uses a reciprocating mechanism that transforms the continuous rotation of a smooth shaft into a linear back-and-forth motion — kinematically similar to a screw/nut system, with two additional functions: pitch adjustment and direction reversal, enabling near-instantaneous direction change. These mechanisms are widely used in winding to correctly distribute wires or cables on a bobbin. Pedagogical Activities: Functional analysis of all functions. Learn about Winding Traverse System India for optimal educational outcomes.. Performance measurement of the system. Kinematic modelling. Learn about Winding Traverse System specifications for optimal educational outcomes.. Software modelling (SolidWorks and MECA3D) of pitch adjustment and direction-change bistable subsystems. Electrical and control aspects with DC motor and 4-quadrant drive, complete instrumentation. Learn about Winding Traverse System manufacturers for optimal educational outcomes.. Practical work list: TP1 – System discovery and internal functional analysis; TP2 – Experimental performance verification; TP3 – Kinematic modelling; TP4 – Software modelling of pitch adjustment; TP5 – Software modelling of direction change; TP6 – Performance measurement (reversal time, pitch); TP7 – Slippage study; TP8 – Winding operation and settings; TP9 – Servo-control system identification; TP10 – 4-quadrant variator operation.

Technical Description: A test bench including:

• A reciprocating mechanism mounted on a support with a winding operation device; two bobbins for setup and operation with wires of different diameters
• A DC motor

Sensors for real-time measurement:

• Motor rotation speed (tachometric generator)
• Housing translation speed (tachometric generator)
• Motor current (torque image)
• Angular position of the bearing inner ring forming the nut during reversal (potentiometric sensor)
• A force sensor for testing the slippage force limit

Control cabinet:

• 4-quadrant electronic variator
• Input reference signals: speed step, speed ramp, sinusoidal speed
• Acquisition card (10,000 Hz) for studying the reversal phase (~0. 1 second)
• Motor speed display
• Manual/software operation switch
• Pilot and acquisition software

Complement: Mechanism housing with transparent cover for visualizing mechanical operation (pitch adjustment and direction change).
