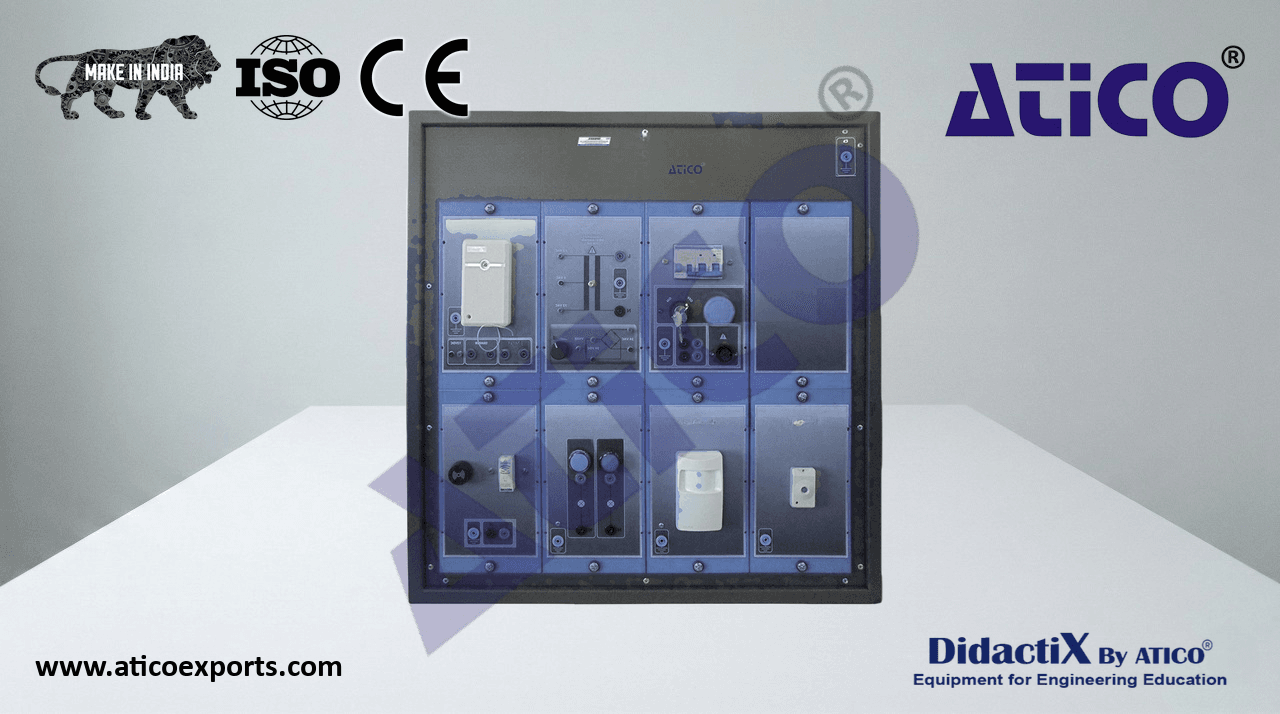

Wireless Intrusion Detection Application (RF)

The Wireless Intrusion Detection Application (RF), in the aim to understand the operation of a wireless intrusion detection system.

ATENG 11081 — Wireless Intrusion Detection Application (RF)

• The “ATENG 11081” application includes the following elements:
• N-ALI03. AC Auxiliary Power Supply (24 Vac) Module.
• Voltage supply (single-phase): 230 VAC, 1PH + N.
• Output voltage:
• Single–Phase 24 VAC / 12 VAC.
• 24 VDC. N-ALI03
• 0 – 24 VDC through potentiometer.
• N-DET13. Wireless Intrusion Detector Module RF.
• Vision angle: 90°.
• Frequency: 433.92 MHz.
• Voltage supply: battery of 3.6 VDC.
  Max. Area 12 x 12 m.
  Status LED.
• N-DET14. Wireless Panic Push-Button Module RF.
• Frequency: 433.92 MHz.
• Voltage supply: battery of 12 VDC.
  Battery status LED.
• Working temperature : 0 – 49 °C. N-DET14
• Dimensions: 32 x 53 x 17 mm.
• N-DET15. Wireless One Channel Receptor Module RF.
  Communication with ten transmitter modules.
• Frequency: 433.92 MHz.
• Voltage supply: 12 VDC.
  One alarm output. N-DET15
  One tamper output.
• Dimensions: 110 x 63 x 25 mm.
• N-SEL01. Luminous Signaling Beacons Module.
  Two pilots of yellow and red color.
• Voltage supply: 230 VAC.
  N-SEL01
• N-TIM05. Buzzer + Buzzer Module.
• Voltage supply: 230 VAC.
• Bell sound: 70 dB.
• Buzzer sound: 80 dB.
  N-TIM05
  3

Specifications

• N-ALI02. Domestic Main Power Supply Module.
• Supply voltage (single–phase): 230 VAC, 1PH + N.
  ON / OFF removable key.
• Output voltage connections:
• Two single-phase: 230 VAC. N-ALI02
  Single-phase supply hose with connecting plug.
• Differential magnetothermal 2 poles, 25 A, 30 mA AC 6 KA.
  Emergency stop push-button.
• All necessary cables to realize the practical exercises are included.
  Cables and accessories, for normal operation.
