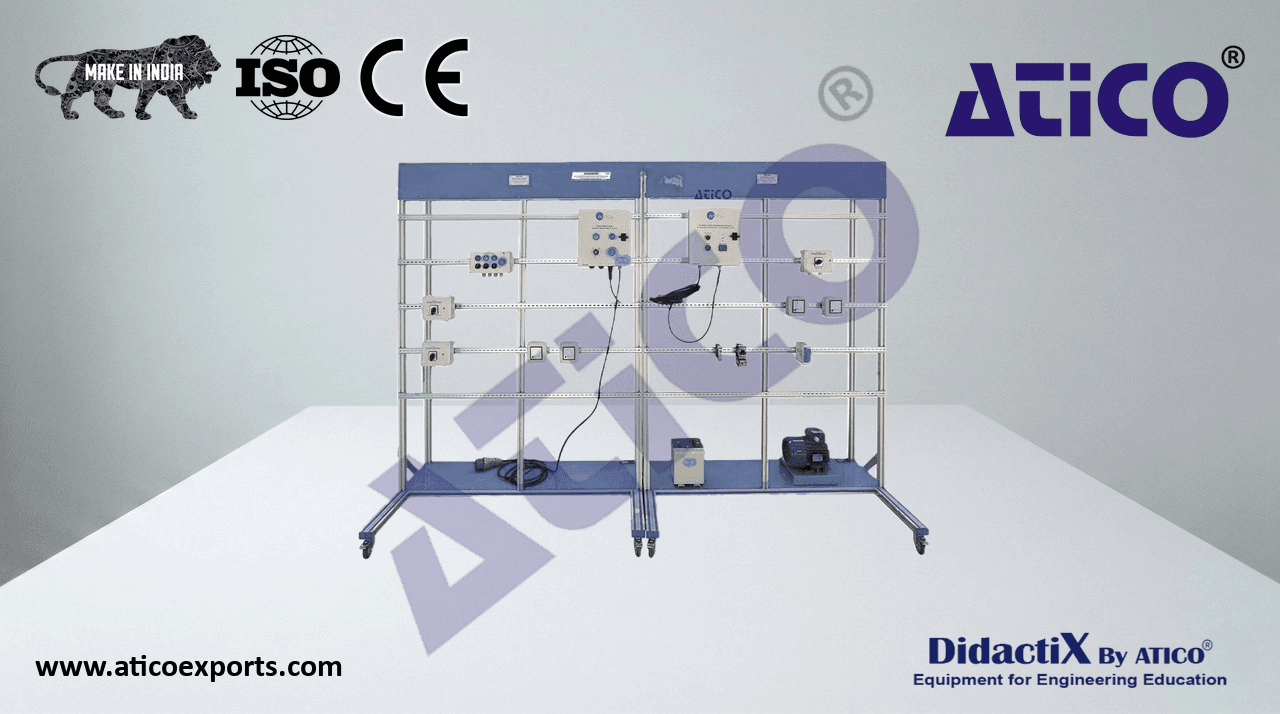

Wiring Installation Training for AC and DC Industrial Electrical Motors

The Wiring Installation Training for AC and DC Industrial Electrical Motors, for training at a practical-professional level in the field of installation, wiring and commissioning of industrial electric motors, both AC and DC. With this unit, students will learn how the motors themselves work, as well as the necessary elements for their correct operation and protection.

ATENG 11213 — Wiring Installation Training for AC and DC Industrial Electrical Motors

• The “ATENG 11213” unit includes the following elements:
• FP-STR. Assembly Frame with Safe Electrical Power Supply.
• Aluminium structure:
  Three aluminium struts.
  Easy assembly of components via hammer head screws.
  Possibility of simultaneous work of several students.
  Four swivelling casters to facilitate the movement.
• Dimensions:
• Structure heigh: 1800 mm.
  FP-STR
• Useful working height: 1000 mm.
• Width: 1500 mm.
  Three-phase connection plug.
• Safe electric box:
• Differential magnetothermal, 4 poles, 25 A, 300 mA AC 6 kA.
• Emergency stop push-button (230/400 VAC).
  5-wire hose for connection to frame.
  Signal lamp of voltage presence.
• FP-KIT-4. Wiring Installation Kit.
• 100 m of grey wire of 1.5 mm².
• 100 m of brown wire of 1.5 mm².
• 100 m of black wire of 1.5 mm².
• 100 m of green/yellow wire of de 1.5 mm².
  25 m of screened wire. FP-KIT-4
• FP-KIT-10. Tubes and Fittings for Channelling Wiring Kit.
  20 m of PVC pipe for wiring installation.
  7 x Electrical box.
  Cable guide.
• 20 x Cable clamps, 20 mm.
  FP-KIT-10
• CHER. Tool Box.
  Crimper.
  Tin.
  Meter.
  Insulating tape.
  Heat shrink.
  Pin punch.
  Star and flat screwdrivers.

CHER

Allen keys.

Soldering iron and soldering iron support.

Rubber hammer.

Connection terminals.

Cable ties.

Cable cutters.

Clamps.

• MED65. Digital Multimeter.
• This 3 ½ digit digital multimeter, with double-jack ending cables of about 4 mm to facilitate
  interconnections.
• With this digital multimeter we will be able to measure:
  Voltage.
  Current.
  Resistance. MED65
  Capacitors capacity.
  Temperature.
  3

Specifications

• FP-KIT-5. Measuring Kit.
• Clamp meter:
  Clamp for alternating/direct current measurements contactless.
• The clamp can measure:
  Current.
  Voltage.
  FP-KIT-5
  Resistance.
• A voltage and continuity tester:
• Voltage range: 12 – 690 VAC.
  Phases rotating detection in three-phase systems.
  Polarity tester.
• FP-KIT-6. Signalling and Control Kit.
• Three commutators:
  Two positions commutator.
• Three signalling lamps:
• Nominal voltage: 230 VAC.
  Three lamps (red, yellow and green).
  FP-KIT-6
• Emergency stop push-button (230/400 VAC):
• Supply voltage: 230/400 VAC.
• FP-KIT-7. Manual Starters for Three-Phase Induction Motor of Squirrel Cage Kit.
• Manual star-delta starter:
• Nominal voltage: 400 VAC.
• Maximum current contacts: 10 A.
• Star-delta three position commutator:
• 0: Open circuit.
  FP-KIT-7
• Y: Star connection.
• Δ: Delta connection.
• Direct manual starter:
• Nominal voltage: 400 VAC.
• Maximum current contacts: 10 A.
• Two positions commutator (ON/OFF):
• 0: Open circuit.
• 1: Closed circuit.
• Manual direct starter with inversión:
• Nominal voltage: 400 VAC.
• Maximum current contacts: 10 A.
• Three positions commutator:
• 0: Open circuit.
• 1: Direct connection.
• 2: Inverse connection.
• FP-KIT-3. AC Motor Controller Installation Kit.
• Frequency controller:
• Supply voltage: 230 VAC.
• Nominal power: 0.4 kW.
• PWM output voltage connections:
• Three-phases: 230 VAC.
  Potentiometer for the induction motor control speed.
  Setting and visualization display of the machine parameters.
  EMC/EMI filter to limit electromagnetic interference. FP-KIT-3
  Potentiometer.
• Control cabinet with door:
• Dimensions:
• Height: 500 mm.
• Width: 400 mm.
• Depth: 200 mm.
  4

Specifications

• -E. 3PH Squirrel-Cage Industrial Motor.
• Nominal power: 370 W.
• Nominal voltage: 3 x 230/400 VAC Δ/Y.
• Frequency: 50/60 Hz.
• Number of poles: 2.
• Speed: 2730 rpm.
  EMT7-E
• Nominal current: 1.67/0.97 A.
• Shaft height: 71 mm.
• FP-DLT. Delay Timer.
• Nominal voltage: 400 VAC.
• Supply voltage: 24 V.
• Potentiometers to adjust:
  Starting time.
  FP-DLT
  Starting voltage.
  Stop time.
• FP-KIT-15. Electrical Motor Protection Kit.
• Thermal relay:
• Nominal voltage for power contacts: 400 VAC.
• Nominal voltage for the control coil: 24 VAC.
• Contacts:
  One three-phase normally open contact (NO) for power circuit.
  FP-KIT-15
• Overcurrent relay:
• Nominal voltage for power contacts: 400 VAC.
• Nominal voltage for the control coil: 24 VAC.
• Contacts:
  One three-phase normally open contact (NO) for power circuit.
• FP-KIT-12. AC Measuring Kit.
• Ammeter AC (0 – 2.5 A):
• Measurement range: 0 – 2.5 A.
• Voltmeter AC (0 – 400 V):
  FP-KIT-12
• Measurement range: 0 – 400 VAC.
• FP-KIT-9. 400 VAC Circuit Breakers Kit.
• Five three-pole contactors:
• Nominal voltage for power contacts: 400 VAC.
• Nominal voltage for control contacts: 230 VAC.
• Nominal voltage for the control coil: 230 VAC.
• Auxiliary contacts: 3 NO/2 NC.
• FP-ESS. Electronic Soft Starter.
  FP-KIT-9
• Nominal voltage: 400 VAC.
• Nominal current: 3.6 A.
• Nominal power: 1.5 kW.
• Protection rating: IP20.
  Three-phase.
  Regulating potentiometer for setting the acceleration/deceleration ramp.
  FP-ESS
  Regulating potentiometer for starting voltage.
• TRANS03. Three-phase Autotransformer 400/230 VAC, 1 kVA.
  Three-phase autotransformer.
• Nominal supply voltage: 400 VAC (3PH).
• Nominal output voltage: 3 x 230 VAC (3PH + N).
• Nominal power: 1 kVA.
• Transformer connection: YY0. TRANS03
