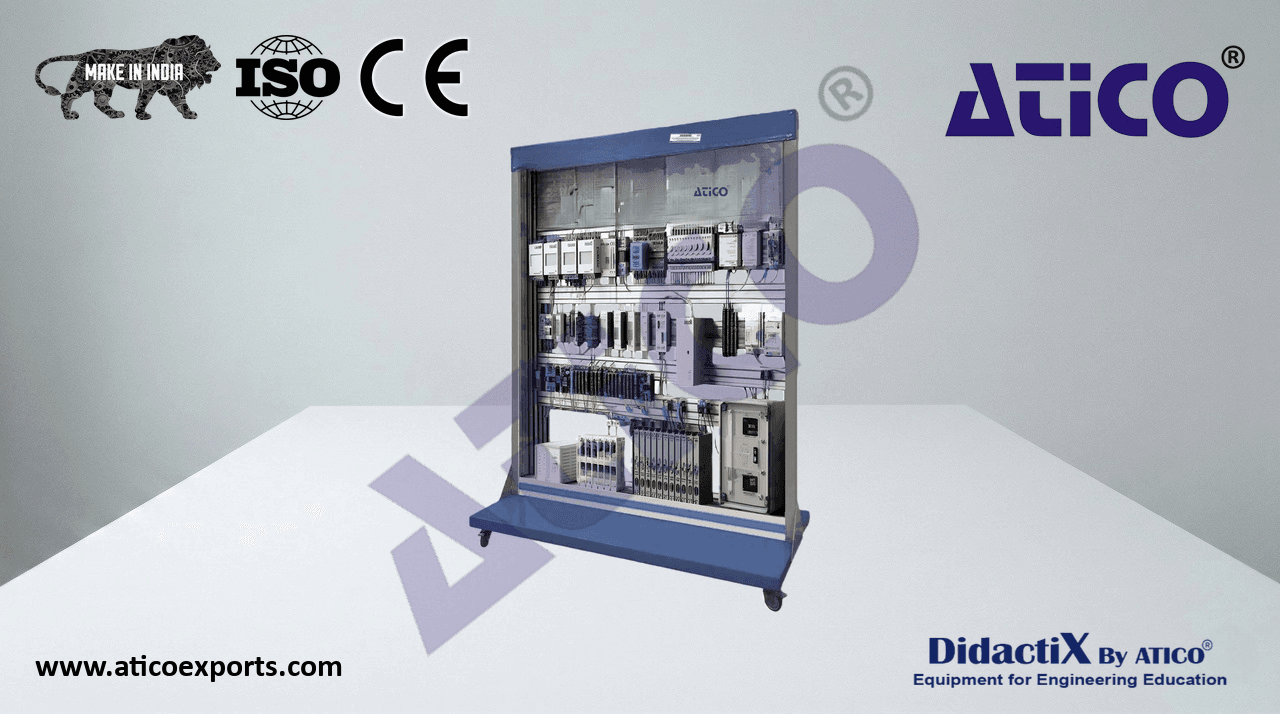

Wiring Installation Training for Building Control via BMS

The is a unit designed to provide practical insights and hands-on experience in KNX wiring practices specifically tailored for building management systems (BMS). This unit serves as a valuable resource for educational and professional institu­tions and training centers focusing on building automation, allowing students to learn and understand the intricacies of wiring KNX devices, programming and commissioning in the context of BMS applications.

ATENG 11236 — Wiring Installation Training for Building Control via BMS

• The “ATENG 11228” unit includes the following elements:
• The “WIT-KNX-UB” base unit includes the following elements:
• FP-STR. Assembly Frame with Safe Electrical Power Supply.
• Aluminum frame:
  Three aluminum struts.
  Easy assembly of components via hammer head screws.
  Possibility of simultaneous work of several students.
  Four swiveling casters to facilitate the movement.
• Dimensions:
• Frame height: 1800 mm.
• Useful working height: 1000 mm.
• Width: 1500 mm.
  Three-phase connection plug.
• Safe electric box:
• Differential magnetothermal 4 poles, 25 A, 30 mA AC 6 kA.
• Emergency stop push-button (230/400 VAC).
  5-wire hose for connection to frame.
  Signal lamp of voltage presence.
• USB/TP Programming Interface.
• Type: USB/TP programming interface for KNX devices.
• Connection: USB port for connection to programming devices.
• Compatibility: Compatible with KNX programming software.
• Functions: Allows programming and configuration of KNX devices through a user friendly interface.
• KNX Power Supply.
  Power supply for KNX devices, 320 mA.
• Protections: Includes protections against overload, short circuit and over temperature.
• CHER. Tool box.
  Crimper.
  Tin.
  Meter.
  Insulating tape.
  Heat shrink.
  Pin punch.
  Phillips and flat screwdriver.
  Allen wrenches.
  Soldering iron and soldering iron support.
  Rubber hammer.
  Connection terminals.
  Cable ties.
  Cable cutters.
  Clemas.
  Wire strippers.
• TP BUS Communication Cable.
  Communication cable for the TP KNX bus.
• Length: 100 m.
• Connectors: Standard KNX connectors at both ends.
• Application: Suitable for reliable connection of KNX devices in the TP bus network.
• Tubes and Fittings for Cable Trunking.
  Tubes and accessories for KNX wiring ducts.
• Accessories: Including joints and brackets for versatile installation.
  They allow safe cable trunking in KNX installations.
• Residual Current Circuit Breakers and Circuit Breakers.
  Circuit breakers, 2P (4 units).
• Rated current: 16A.
  Overload and short-circuit protection.
  Residual current circuit breaker with overcurrent protection, 2P (2 units).
• Rated current: 16A.
• Sensitivity: 30 mA.
  Protection against overloads and short circuits.
  6

Specifications

• Digital Multimeter.
• This module has a digital multimeter of about 3 ½ digits, with double-jack ending cables of about 4 mm to facilitate
  interconnections.
• With this digital multimeter we will be able to measure:
  Voltage.
  Current.
  Resistance.
  Capacitors capacity.
  Temperature.
• Clamp Ammeter.
• Note: Specifications are approximate and may vary according to specific model and manufacturer.
• Required elements (at least one) (Not included):
• ATENG 11230. Wiring Installation Training for Lighting with KNX.
  Electrical Distribution Box for the Installation of Protections and KNX Devices.
• Type: Electrical distribution box for KNX installations.
• Material: Galvanized steel.
• Dimensions: 40 cm x 30 cm x 15 cm.
• Compartments: Two compartments for protections and KNX devices.
• Mounting: Wall mounting with reinforced brackets.
  KNX Presence Sensor.
  Presence sensor for KNX systems.
• Technology: Infrared.
• Detection Angle: 180 degrees.
• Power supply: 24 VDC.
• Connection: Standard KNX connection interface.
  KNX Luminosity Sensor.
  Brightness sensor for KNX systems.
• Measuring Range: 1 lux to 1000 lux.
• Power supply: 24 VDC.
• Connection: Standard KNX connection interface.
• Automatic Adjustment: Yes.
  LED luminaires.
• Type: LED luminaires for KNX systems.
• Power: 10 W.
• Color Temperature: 3000 K.
• Control: Dimming and dimming by KNX controllers.
  KNX Binary Output Module.
• Type: Binary output module for KNX systems.
• Number of Channels: 4.
• Maximum load per channel: 16 A.
• Connection: Standard KNX connection interface.
  KNX Binary Input Module.
• Type: Binary input module for KNX systems.
• Number of Channels: 8.
• Input Type: 230 VAC.
• Connection: Standard KNX connection interface.
  KNX Push Button.
  Push button for KNX systems.
• Number of buttons: 2.
• Functions: Configurable for on, off and scenes.
• Connection: Standard KNX connection interface.
  KNX/DALI Gateway Controller.
  Gateway controller for integration between KNX and DALI systems.
• Functions: Unified control of DALI luminaires from the KNX system.
• Connection: Standard KNX and DALI connection interface.
  7

Specifications

DALI Light Controller.

• Type: Light controller for DALI systems.
• Functions: Advanced control of DALI luminaires.
• Connection: Standard DALI connection interface.
  Room Controller KNX with Touch Screen.
  Room controller with touch screen for KNX systems.
• Display size: 5 inches.
• Functions: Intuitive control of KNX devices, scenarios and room temperature.
• Connection: Standard KNX connection interface.
• Note: Specifications are approximate and may vary depending on the specific model and manufacturer.
• ATENG 11231. Wiring Installation Training for ATENG 11845 with KNX.
  Electrical Distribution Box for the Installation of Protections and KNX Devices.
• Type: Electrical distribution box for KNX installations.
• Material: Galvanized steel.
• Dimensions: 50 cm x 40 cm x 20 cm.
• Compartments: Three compartments for protections and KNX devices.
• Mounting: Wall mounting with reinforced brackets.
  KNX Room Controller with Touch Screen.
• Type: Room controller with touch screen for KNX systems.
• Display size: 7 inches.
• Functions: Intuitive control of KNX devices, scenarios, room temperature and data visualization.
• Connection: Standard KNX connection interface.
  Four and Two Pipe KNX Fan Coil Controller.
• Type: KNX Fan Coil Controller.
• Piping: Available in four-pipe and two-pipe versions.
• Functions: Temperature and fan speed control.
• Connection: Standard KNX connection interface.
  KNX Temperature and Presence Detector.
• Type: Temperature and presence detector for KNX systems.
• Temperature Range: -10°C to 50°C.
• Detection Angle: 120 degrees.
• Connection: Standard KNX connection interface.
  KNX Binary Output Module.
• Type: Binary output module for KNX systems.
• Number of Channels: 6.
• Maximum load per channel: 15 A.
• Connection: Standard KNX connection interface.
  Ambient Temperature Simulator Box.
• Type: Simulator box to simulate room temperature conditions.
• Controls: Simulated temperature setting.
• Indicators: Digital display of simulated temperature.
• Connection: Connector for KNX systems.
• Analog Voltmeters 0 – 10 V.
• Type: Analog voltmeters for monitoring control signals.
• Range: 0 – 10 V.
• Connection: 4 mm connector.
• Functions: Real-time display of voltages in the KNX system.
  Variable Frequency Drive for Fan Speed Control.
• Type: Frequency inverter for KNX systems.
• Frequency range: 0 – 100 Hz.
• Control: Fan speed adjustment.
• Connection: Standard KNX connection interface.
  8

Specifications

• Motor with Fan and Heating Resistor with 0 – 10 VDC Controller.
• Type: Motor with fan and heating resistor for KNX systems.
• Control: 0 – 10 VDC.
• Functions: Ventilation and heating control.
• Connection: Standard KNX connection interface.
  Circuit breakers.
• Type: Circuit breakers for additional control.
• Functions: Setting of scenarios and on/off conditions.
• Connection: Standard KNX connection interface.
• Note: Specifications are approximate and may vary depending on the specific model and manufacturer.
• ATENG 11233. Wiring Installation Training for Blinds with KNX.
  KNX Room Controller with Touch Screen.
• Type: room controller with touch screen for KNX systems.
• Screen size: 5 inches.
• Functions: Intuitive control of KNX devices, scenarios, and data visualization.
• Connection: Standard KNX connection interface.
  Electrical Distribution Box for the Installation of KNX Protections and Devices.
• Type: Electrical distribution box for KNX installations.
• Material: ABS fire resistant.
• Dimensions: 40 cm x 30 cm x 15 cm.
• Compartments: Two compartments for protections and KNX devices.
• Mounting: Wall mounting with reinforced brackets.
  KNX Binary Input Module.
• Type: Binary input module for KNX systems.
• Number of channels: 8.
• Functions: Event detection and input signals.
• Connection: Standard KNX connection interface.
  Push Button Module.
• Type: Push button module for KNX systems.
• Number of push buttons: 6.
• Functions: Manual control of KNX devices and scenarios.
• Connection: Standard KNX connection interface.
  KNX Binary Output Module for Blind Control.
• Type: Binary output module for shutter control in KNX systems.
• Number of channels: 4.
• Functions: Up and down control of blinds.
• Connection: Standard KNX connection interface.
  KNX Brightness Sensor.
• Type: Brightness sensor for KNX systems.
• Measuring range: 0 – 1000 lux.
• Functions: Detection of ambient light levels.
• Connection: Standard KNX connection interface.
  Shutter-Motor System.
• Type: Integrated shutter control system.
• Components: Shutter motor and KNX control system.
• Functions: Automation of the opening and closing of blinds.
• Connection: Integration with KNX modules.
• Note: Specifications are approximate and may vary depending on the specific model and manufacturer.
  9

Specifications

• ATENG 11234. Wiring Installation Training for Security with KNX: Fire, Intrusion Prevention, Floods, etc.
  Electrical Distribution Box for the Installation of Protections and KNX Devices.
• Type: Electrical distribution box for KNX installations.
• Material: Resistant steel.
• Dimensions: 50 cm x 40 cm x 20 cm.
• Compartments: Three compartments for protections and KNX devices.
• Mounting: Wall mounting with reinforced brackets.
  Intrusion Detector and KNX Security Zones.
• Type: KNX intrusion detector.
• Security zones: Four configurable zones.
• Functions: Motion detection and activation of security zones.
• Connection: Standard KNX connection interface.
  Buzzer Box for Alarm Simulation (3 units).
• Type: Buzzer box for alarm simulation.
• Number of Buzzers: 3.
• Functions: Emission of simulated alarm sounds.
• Connection: Power supply and activation through KNX binary output.
  KNX Binary Output (for Alarm Activation).
• Type: KNX binary output module.
• Number of channels: 1.
• Functions: Alarm activation and deactivation.
• Connection: Standard KNX connection interface.
  Circuit Breakers (4 units).
• Type: Circuit breakers.
• Number of switches: 4.
• Functions: Control of specific circuits.
• Connection: Installation in KNX electrical distribution box.
  Induction Motor.
• Functions: Electrical load simulation and control via KNX output module.
• Connection: Power supply and KNX control.
  KNX Presence Detector.
• Type: KNX presence detector.
• Functions: Motion detection in the designated area.
• Power supply: Through KNX network.
• Mounting: Wall or ceiling as required.
  KNX Magnetic Window Detector.
• Type: KNX magnetic window detector.
• Functions: Detection of opening and closing of windows.
• Power supply: Through the KNX network.
• Mounting: Window frame.
  KNX Smoke/Fire Detector.
• Type: KNX smoke/fire detector.
• Functions: Smoke detection and indication of possible fires.
• Power supply: Through KNX network.
• Mounting: Ceiling or wall according to safety recommendations.
  KNX Temperature and Presence Detector.
• Type: KNX temperature and presence detector.
• Functions: Simultaneous temperature and presence detection.
• Power supply: Through KNX network.
• Mounting: Wall or ceiling as required.
  10

Specifications

Flood Detector KNX.

KNX flood detector.

• Functions: Detection of anomalous water levels.
• Power supply: Through the KNX network.
• Mounting: On the floor or in areas prone to flooding.
• Note: Specifications are approximate and may vary depending on the specific model and manufacturer.
• ATENG 11236: Wiring Installation Training for Building Control via BMS.
  Electrical Distribution Box for the Installation of KNX Protections and Devices.
• Type: KNX electrical distribution box.
• Functions: Safe and organized housing of KNX protections and devices.
• Material: Resistant and durable material.
• Dimensions: Suitable for the number and type of KNX devices to be installed.
  KNX Space Link Web Server.
• Type: KNX web server.
• Functions: Facilitates the connection and remote control of the KNX system through a web interface.
• Connectivity: Compatible with standard KNX networks.
• Security: Implements security measures for remote management.
• Note: Specifications are approximate and may vary depending on the specific model and manufacturer.
• All necessary cables to realize the practical exercises are included.
  Cables and accessories, for normal operation.
