Wiring Installation Training for Electrical Installations in Buildings

The Wiring Installation Training, Electrical Installations in Buildings application, for the students formation at a professional-practical level in the field of the installation, wiring and testing of building electrical installations.

ATENG 11224 — Wiring Installation Training for Electrical Installations in Buildings

• The “ATENG 11224” unit includes the following elements:

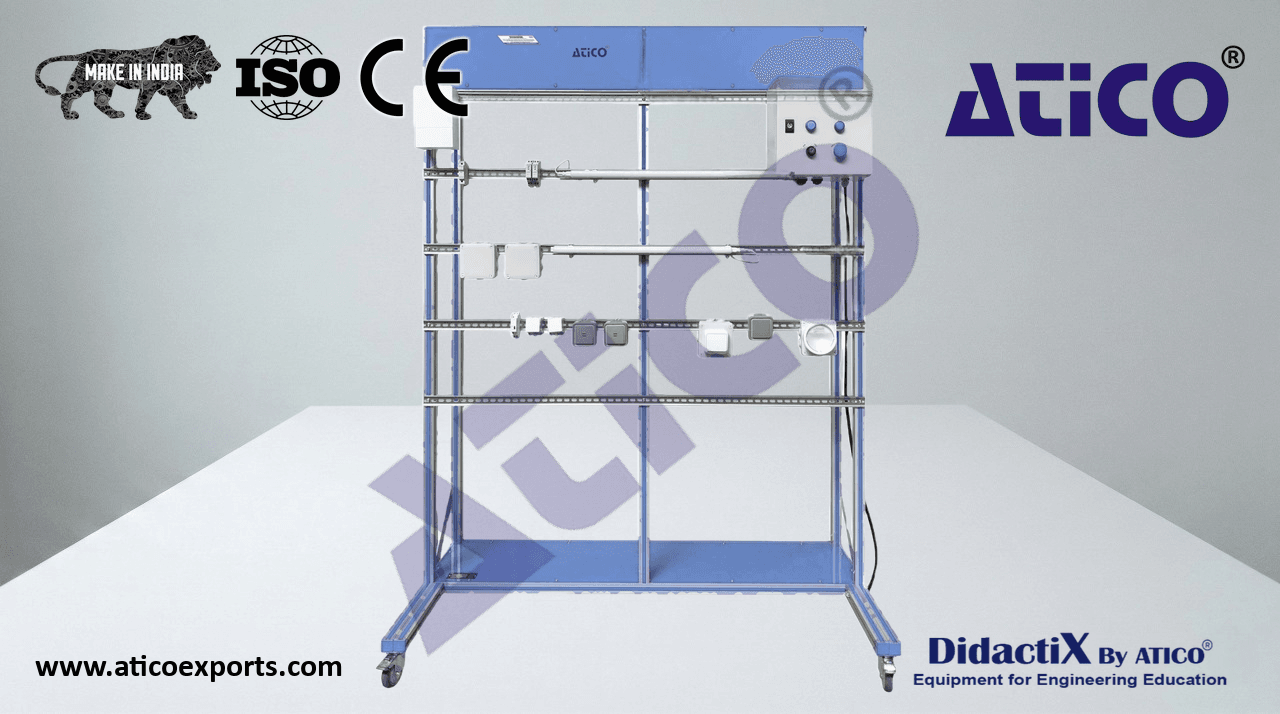

• FP-STR. Assembly Frame with Safe Electrical Power Supply.
• Aluminum frame:
  Three aluminum struts.
  Easy assembly of components via hammer head screws.
  Possibility of simultaneous work of several students.
  Four swiveling casters to facilitate the movement.
• Dimensions:
• Frame height: 1800 mm. FP-STR
• Useful working height: 1000 mm.
• Width: 1500 mm.
  Three-phase connection plug.
• Safe electric box:
• Differential magnetothermal 4 poles, 25 A, 30 mA AC 6 kA.
• Emergency stop push-button (230/400 VAC).
  5-wire hose for connection to frame.
  Signal lamp of voltage presence.
• FP-KIT-4. Wiring Installation Kit.
• 100 m of grey wire of 1.5 mm².
• 100 m of brown wire of 1.5 mm².
• 100 m of black wire of 1.5 mm².
  FP-KIT-4
• 100 m of green/yellow wire of de 1.5 mm².
  25 m of screened wire.
• FP-KIT-1/S. Single-Phase Feeders Installation Kit.
  2 poles differential magnetothermal protection.
  Single-phase fuse holder.
  FP-KIT-1/S
  Cartridge fuse.
  Electrical board.
  Screw clamp terminals with plug.
• FP-KIT-10. Tubes and Fittings for Channelling Wiring Kit.
  20 m of PVC pipe for wiring installation.
  FP-KIT-10
  7 x Electrical box.
  Cable guide.
• 20 x Cable clamps, 20 mm.
  FP-KIT-37
• FP-KIT-37. Fluorescent Ceiling Fixture Kit.
  2 x Fluorescent tube line, 8 W (with tube holder).
• FP-KIT-42. Incandescent Lamps Kit.
  4 x Double throw lighting switch.
• 4 x Encapsulated halogen lamp, 230 V.
  FP-KIT-42
• Single-phase, 230 VAC socket.
  2 x Commutator switch.
• FP-KIT-68. Stair Lighting Kit.
  2 x Stair timer.
• 2 x 10 A Push-button switch.
  FP-KIT-68
  3

Specifications

• FP-KIT-10/B. Rigid Tube Kit.
  20 m PVC rigid tube.
  10 x Threaded connector.
  5 x Elbow for conducts clamping.
  FP-KIT-10/B
• Required elements (Not included):
• CHER. Tool Box.
  Crimper.
  Tin.
  Meter.
  Insulating tape.
  Heat shrink.
  Pin punch.
  Star and flat screwdrivers.

CHER

Allen keys.

Soldering iron and soldering iron support.

Rubber hammer.

Connection terminals.

Cable ties.

Cable cutters.

Clamps.
