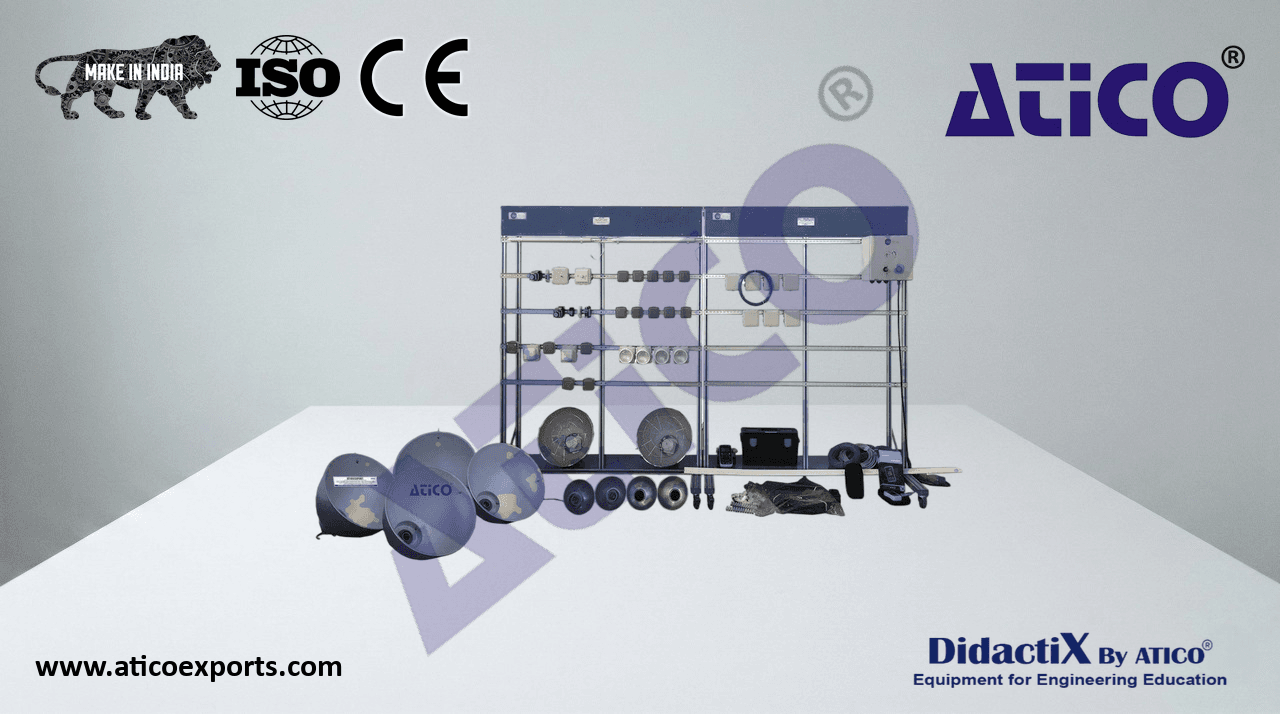

Wiring Installation Training for Industrial Lighting Installations

The Wiring Installation Training, Industrial Lighting Installations application, for the formation at professional-practical level in the field of the installations, wiring and testing of the different industrial illumination lamps.

ATENG 11218 — Wiring Installation Training for Industrial Lighting Installations

• The “ATENG 11218” application includes the following elements:
• FP-STR. Assembly Frame with Safe Electrical Power Supply.
• Aluminum frame:
  Three aluminum struts.
  Easy assembly of components via hammer head screws.
  Possibility of simultaneous work of several students.
  Four swiveling casters to facilitate the movement.
• Dimensions:
• Frame height: 1800 mm.
  FP-STR
• Useful working height: 1000 mm.
• Width: 1500 mm.
  Three-phase connection plug.
• Safe electric box:
• Differential magnetothermal 4 poles, 25 A, 30 mA AC 6 kA.
• Emergency stop push-button (230/400 VAC).
  5-wire hose for connection to frame.
  Signal lamp of voltage presence.
• FP-KIT-4. Wiring Installation Kit.
• 100 m of grey wire of 1.5 mm².
• 100 m of brown wire of 1.5 mm².
• 100 m of black wire of 1.5 mm².
• 100 m of green/yellow wire of de 1.5 mm².
  25 m of screened wire.
  FP-KIT-4
• FP-KIT-10. Tubes and Fittings for Channeling Wiring Kit.
  PVC electrical conduit for wiring installation, 20 m.
  7 x Electrical box.
  Cable guide.
• 20 x Cable clamp, 20 mm.
  FP-KIT-10
• FP-KIT-32. Switches Kit 1.
  2 x Switch.
  2 x Double switch.
  2 x Commutator.
  2 x Push-button.
  Crossover switch.
  Case for storing switches. FP-KIT-32
• FP-KIT-33. Lighting Regulation Kit.
  Dimmer for LED lamp.
  Dimmer for incandescent lamp.
  Universal dimmer RLC/LED/CFL.
  Case for storing regulators.
  FP-KIT-33
• FP-KIT-34. Lighting Relays Kit.
  2 x Timer relay.
• Switch relay:
• Coil voltage: 230 VAC.
• Commutator relay:
• Coil voltage: 24 VDC.
• 24 VDC power supply.
  FP-KIT-34
  Case for storing relays and power supply.
  3

Specificacions

• FP-KIT-37. Fluorescent Ceiling Fixture Kit.
  2 x Fluorescent tube line, 8 W (with tube holder).
• FP-KIT-38. Mercury Vapor Lamps Kit. FP-KIT-37
  2 x Mercury vapor lamp.
• Nominal voltage: 230 VAC.
• Approx power: 250 W.
  2 x Industrial lamp cover + E40 socket.
  Case to store the lamps.
  FP-KIT-38
• FP-KIT-39. High Pressure Sodium Vapor Lamps Kit.
  2 x High pressure sodium vapor lamp.
• Nominal voltage: 230 VAC.
• Approx power: 250 W.
  2 x Industrial lamp cover + E40 socket.
  Case to store the lamps. FP-KIT-39
• FP-KIT-40. Low Pressure Sodium Vapor Lamps Kit.
  2 x Low pressure sodium vapor lamp.
• Nominal voltage: 230 VAC.
• Approx power: 250 W.
  2 x Industrial lamp cover + E40 socket.
  FP-KIT-40
  Case to store the lamps.
• FP-KIT-41. Metal Halide Lamps Kit.
  2 x Metal halide lamp.
• Nominal voltage: 230 VAC.
• Approx power: 150 W.
  2 x Industrial lamp cover.
  FP-KIT-41
  2 x E27 socket for lamps.
  Case for storing lamps.
• FP-KIT-42. Incandescent Lamps Kit.
  4 x Double throw lighting switch.
• 4 x Encapsulated halogen lamp, 230 V.
• Single-phase, 230 VAC socket.
  2 x Commutator switch.
  FP-KIT-42
• FP-KIT-43. LED Lamps Kit.
  2 x LED lamp.
• Nominal voltage: 230 VAC.
• Approx power: 20 W.
  2 x Industrial lamp cover.
  FP-KIT-43
  2 x E27 socket for lamps.
  Case for storing lamps.
  4

Specificacions

• Required elements (Not included):
• CHER. Tool Box.
  Crimper.
  Tin.
  Meter.
  Insulating tape.
  Heat shrink.

CHER

Pin punch.

Star and flat screwdrivers.

Allen keys.

Soldering iron and soldering iron support.

Rubber hammer.

Connection terminals.

Cable ties.

Cable cutters.

Clamps.
